CAMERA
- Image Sensor: 1/3″ Progressive Scan CMOS Starlight Sensor
- Lens:
Focal Length: 3.2 mm
Aperture: F1.6
Field of View: 113° (Diagonal), 97°(Horizontal), 54°(Vertical) - Night Vision: 850 nm IR LED (49 ft / 15 m),Full-Color Night Vision
- Lighting: 2× Built-in Spotlights
- Interface & Button: 1× SYNC/RESET Button
- Hub Compatibility: Compatible with Tapo H200(Sold separately)
VIDEO & AUDIO
- Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
- Frame Rate: 15 fps / 20 fps
- Digital Zoom: 12×
- Video Compression: H.264
- Live View: Yes
- Image Enhancement: 3DNR,WDR
- Audio Input & Output: Built-in Microphone and Speaker
- Audio Communication: Two-Way Audio with Noise Cancellation
- Siren Volume:
Camera:
92 dB (Level measured at 4-inch/10-cm distance)
Hub:
100 dB (Level measured at 4-inch/10-cm distance)STORAGE
- Local Storage: MicroSD Card Slot on Hub (Up to 512 GB)
*Hub sold separately. - Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
- Sensor:
Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light Sensors - AI Detection Motion Detection:
Person Detection
Pet Detection
Vehicle Detection - Activity Zones: Yes
- Output Notification:
System Notification
System Notification with Snapshot (Tapo Care Services)NETWORK
- Network Connectivity: Connect via Wi-Fi or Ethernet
- Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub) - Ethernet Port: 1× 10/100 Mbps RJ45 Port on Hub
*Hub sold separately.SECURITY
- Security: 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSKPOWER
- Power Source:
Camera：6700 mAh Removable Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 (Sold separately) - Input Voltage Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz
- Output Voltage Camera Battery Pack Adapter Output: 5.0 V, 1.0 A
GENERAL
- Smart Integration: Google Assistant, Amazon Alexa

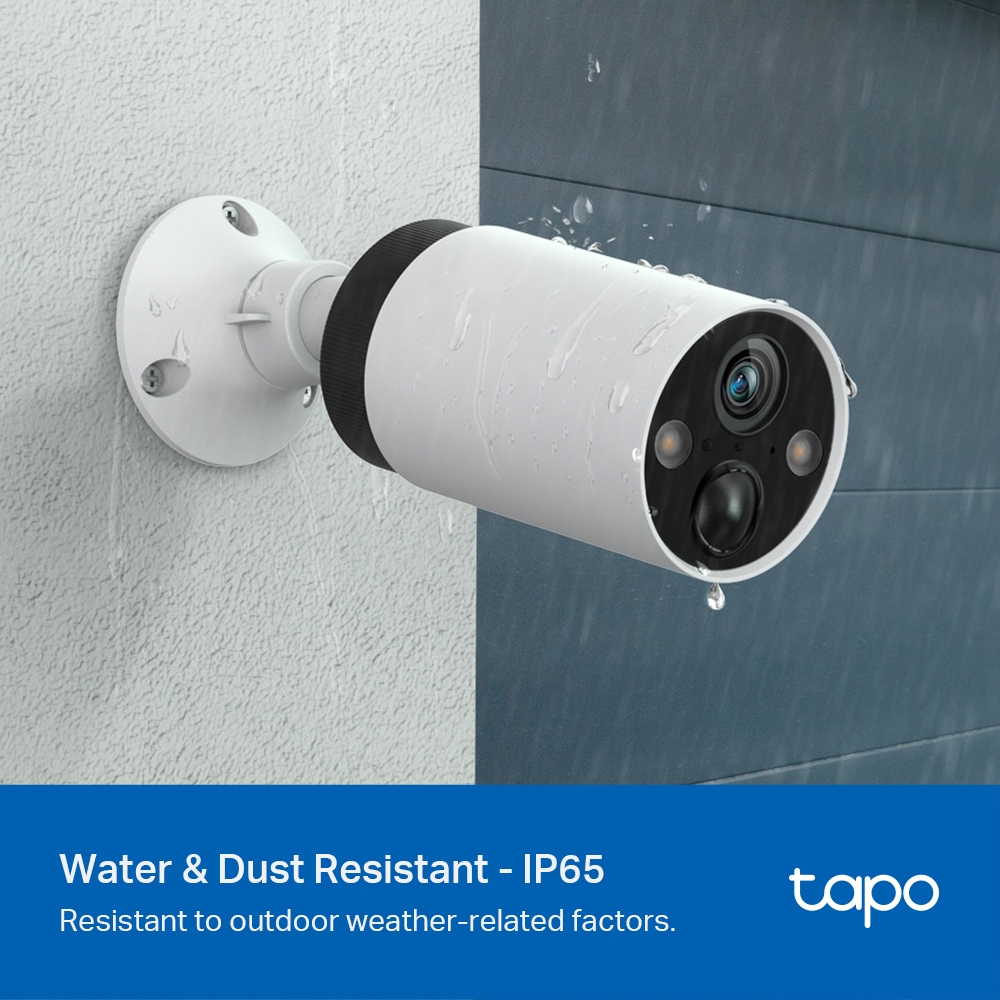

- Weather Resistance Camera: IP65
- System Requirements: Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher
- Mounting Options:
Tabletop
Ceiling-Mounted
Wall-Mounted - Operating Temperature: Camera:-20℃~45℃
- Storage Temperature: -20℃~60℃
- Operating Humidity: 10%~90% RH, Non-condensing
- Storage Humidity: 5%~90% RH, Non-condensing
- Charging Temperature: 0-55℃
- Dimensions ( W x D x H ): Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
- Package Content:
Tapo C420 Camera
Tapo A100 Battery
USB Adapter
USB Adapter Cable
Mounting Anchors
Mounting Screws
Mounting Template
Camera Bracket
Quick Start Guide - Certifications: CE, FCC, RoHS, RCM
