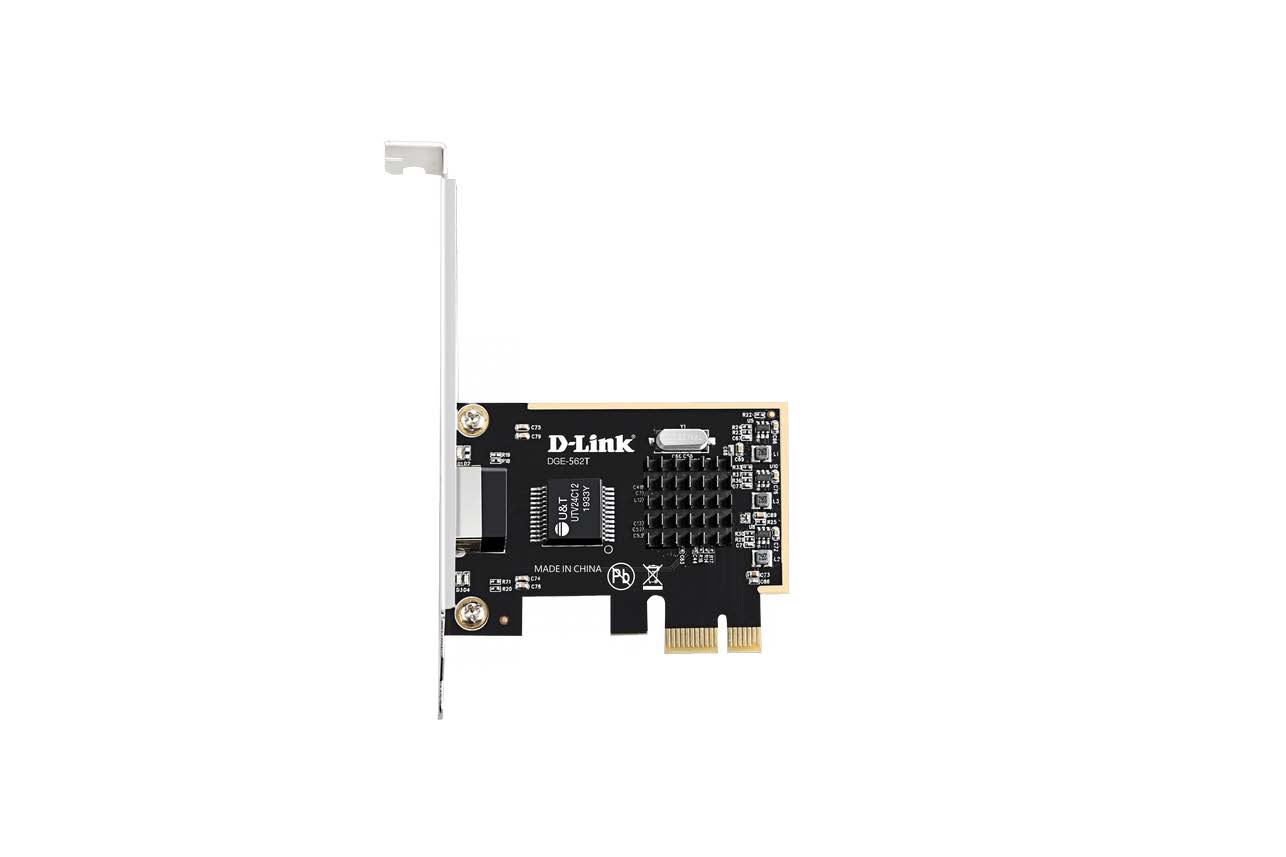

DGE-562T D-Link 2.5Gbps PCI Express Ethernet Network Adapter, WoL, Flow control, VLAN tagging, Jumbo Frame, IEEE 802.3az EEE, low profile bracket included

EGP1,299.00

Close
Price Summary
  • EGP1,299.00
  • EGP1,299.00
  • EGP1,299.00
Hurry, Only 5 left.
Description
The high performance DGE-562T PCI Express 2.5 Gigabit Ethernet Network Adapter offers increased bandwidth and connection reliability than standard PCI network cards. This adapter supports IEEE 802.3bz 2.5GBase-T standard and provides data rates of up to 2.5 Gbps.
Advanced Features
The DGE-562T supports Wake-on-LAN (WOL), an Advanced Configuration Power Interface (ACPI) function, allowing a powered off computer to be powered on from a remote station. This function allows the administrator to send wake-up signals to a computer. The DGE-562T supports the onboard screening of 802.1Q VLAN Tagged Ethernet frames, allowing to create several subnets for each server and isolate devices within each VLAN from the other part of a network for security enhancement and traffic management. The DGE-562T also supports 802.1p Priority Encoding.
Power Saving
The DGE-562T supports power saving mode in your network. This adapter is compliant with IEEE 802.3az Energy-Efficient Ethernet and reduces the power consumption when network utilization is low.

Features

  •  One 100/1000/2.5GBase-T port
  • PCI Express x1 installation slot
  • Data rates of up to 2.5 Gbps
  • 802.3x Flow Control
  • Wake-on-LAN
  • 802.1Q VLAN Tagging
  • 802.1p Priority Encoding
  • IEEE 802.3az Energy-Efficient Ethernet

Technical Specifications:
Hardware:
Chipset

  • RTL8125

Interfaces

  • One 100/1000/2.5GBase-T port with RJ-45

Installation Slot

  • PCI Express x1

LEDs

  • Link/Activity
  • Speed

Network Cables

  • Ethernet: UTP cat. 3 or above (100 m max.)
  • Fast Ethernet/Gigabit Ethernet/2.5 Gigabit Ethernet: UTP cat. 5 or above (100 m max.)

Functionality:
Standards and Functions

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3bz 2.5GBase-T
  • IEEE 802.3az Energy-Efficient Ethernet
  • 802.3x Flow Control in full-duplex mode
  • Auto MDI/MDIX adjustment
  • PCI Express 2.1 compliant
  • Advanced Configuration Power Interface (ACPI)
  • Wake-on-LAN and “RealWoW!”
  • 9,8 KB Jumbo Frame
  • 802.1p Priority Encoding
  • 802.1Q VLAN Tagging

OS Support

  • Microsoft Windows 10 (32/64), 8/8.1 (32/64), 7 (32/64)
  • Microsoft Windows Server 2012, 2008
  • Linux up to 4.15

Physical Parameters:
Dimensions (L x W x H)

  • 71.5 x 50 x 1.6 mm

Environmental Conditions
Temperature

  • Operating: 0 to 40 °C
  • Storage: -20 to 70 °C

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 90% non-condensing
