Overview:
High quality, Double-conversion On-line UPS designed for essential power protection
needs even in the most unstable power conditions.

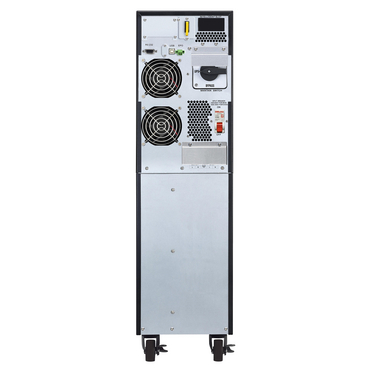

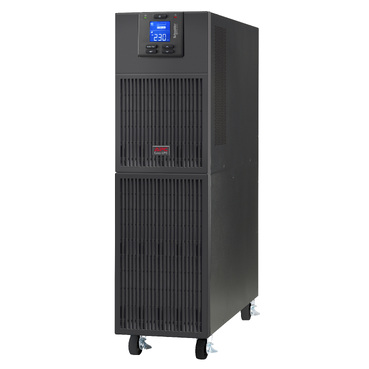

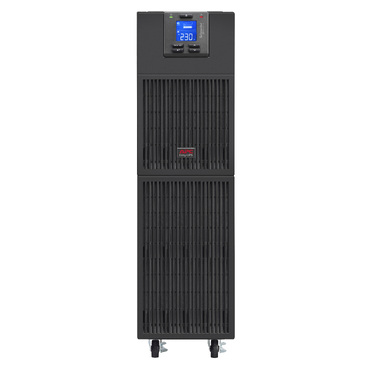

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Specifications:
MAIN
Main input voltage : 230 V AC 1 phase
Other input voltage:
– 220 V
– 240 V
Efficiency at full load:
– 110…300 V 60 % load
– 176…300 V full load
Input connection : 1 hard wire 3-wire (1P + N + E)
Input frequency : 40…70 Hz auto sensing
Output voltage : 230 V AC 1 phase
Other output voltage:
– 220 V
– 240 V
Rated power in W : 6000 W
Rated power in VA : 6000 VA
Output connection : Hard wire 3-wire (1P + N + E) for 1 zone(s)
Bypass type : Internal bypass (automatic and manual)
Crest factor:
– 3 : 1
Harmonic distortion : 1 %
Maximum configurable power in VA : 6000 VA
Maximum configurable power in W : 6000 W
UPS topology : On-Line
Waveform type : Sine wave
Efficiency : 94 % (full load)
Output frequency : 50/60 Hz +/- 3 Hz sync to mains
GRAPHS
COMPLEMENTARY
Additional information:
– Configurable for 220 : 230 or 240 nominal output voltage
Battery type : Lead-acid internal included
Control panel : Multifunction LCD status and control console
Emergency power off : YES
Free slot : 1
Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity:
– Serial port
– USB port
– Available expansion slot
Surge energy rating : 600 J
Color : Black (RAL 7010)
Dimensions (H x W x D) in mm : 685 x 190 x 374 mm
Weight : 54 kg
Mounting location : Front
Mounting preference : No preference
Mounting mode : Not rack-mountable
USB compatible : YES
Mounting position : Vertical
Mounting mode : Tower
Number of power module filled slots : 0
Number of power module free slots : 0
Redundant : NO
Range of product : Easy UPS On-Line
Product or component type : Uninterruptible power supply (UPS)
ENVIRONMENT
Product certification:
– CE
– UKCA
– EAC
– TISI
Standard:
– EN/IEC 62040-1:2019/A11:2021
– EN/IEC 62040-2:2006/AC:2006
– EN/IEC 62040-2:2018
Ambient air temperature for operation : 0 … 40 °C
Ambient air temperature for storage : -15 … 60 °C
Storage altitude : 0 … 15000 m
IP protection : IP20
Relative humidity : 0 … 95 % non-condensing
Storage relative humidity : 0 … 95 % non-condensing
Acoustic level : 55 dBA
Heat dissipation : 1172 Btu/h
Operating altitude : 0 … 3000 m
BATTERIES & RUNTIME
Battery type : Lead-acid battery
Battery voltage : 192 V
Extendable runtime : 0
Included battery module : 0
Empty battery slot : 0
Typical recharge time : 4 h
Battery life : 3 … 5 years
Battery charging power : 235 W rated
Battery power in VAh : 1124 VAh runtime
CONTRACTUAL WARRANTY
Warranty (in months) : 24
