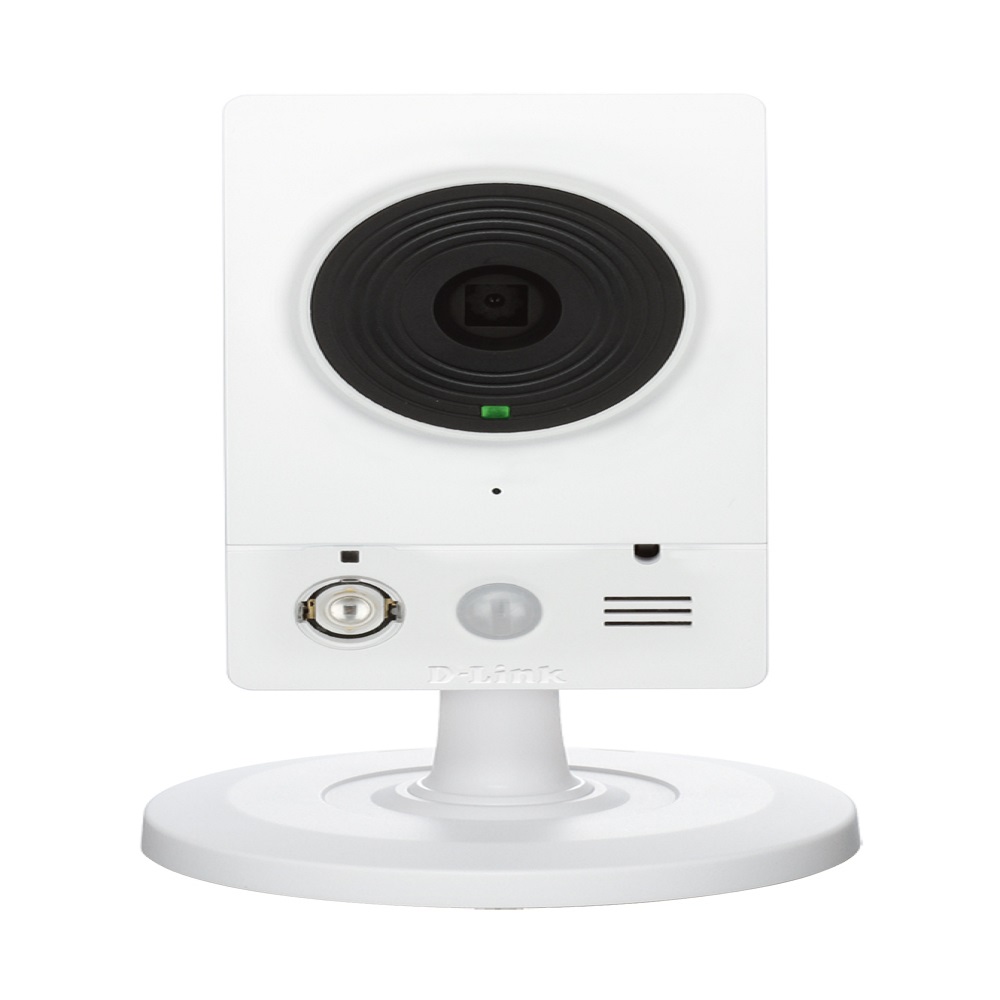

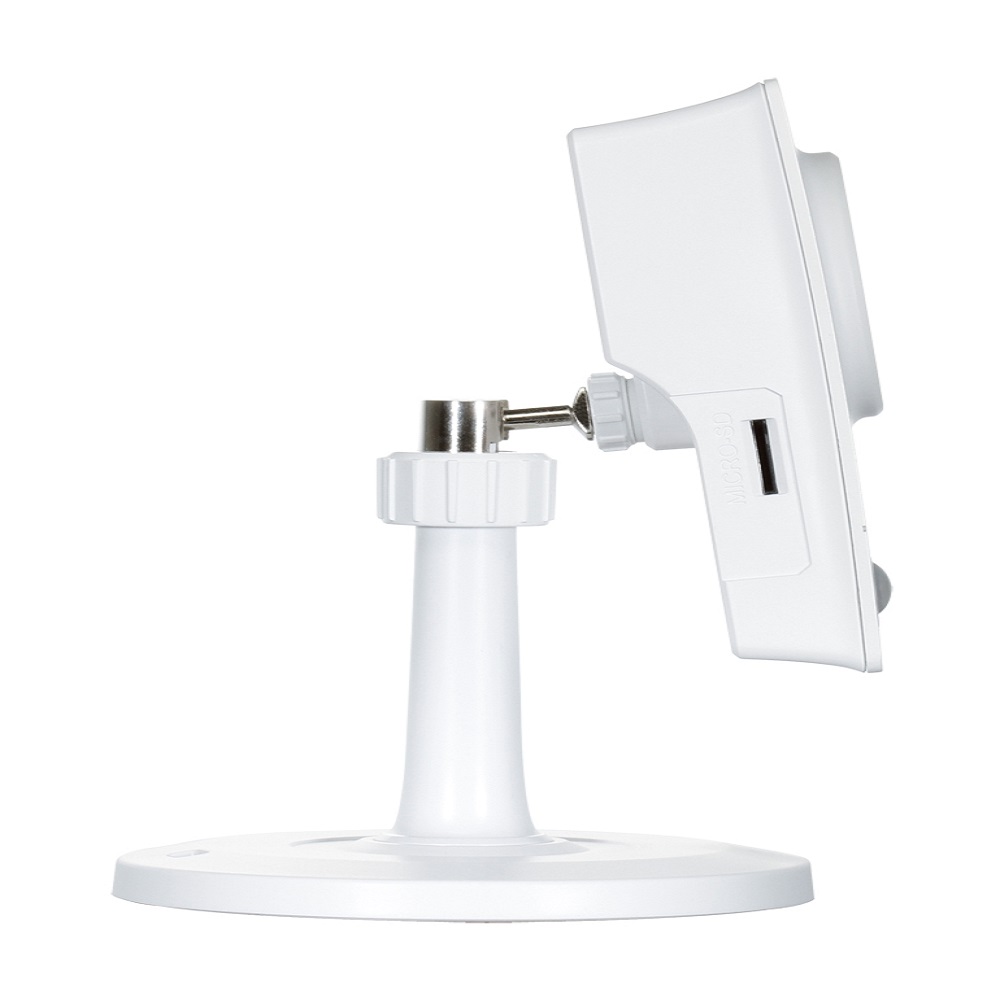

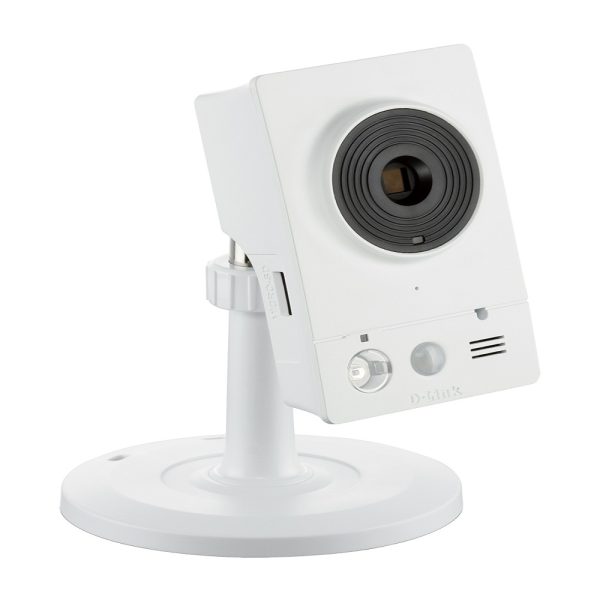

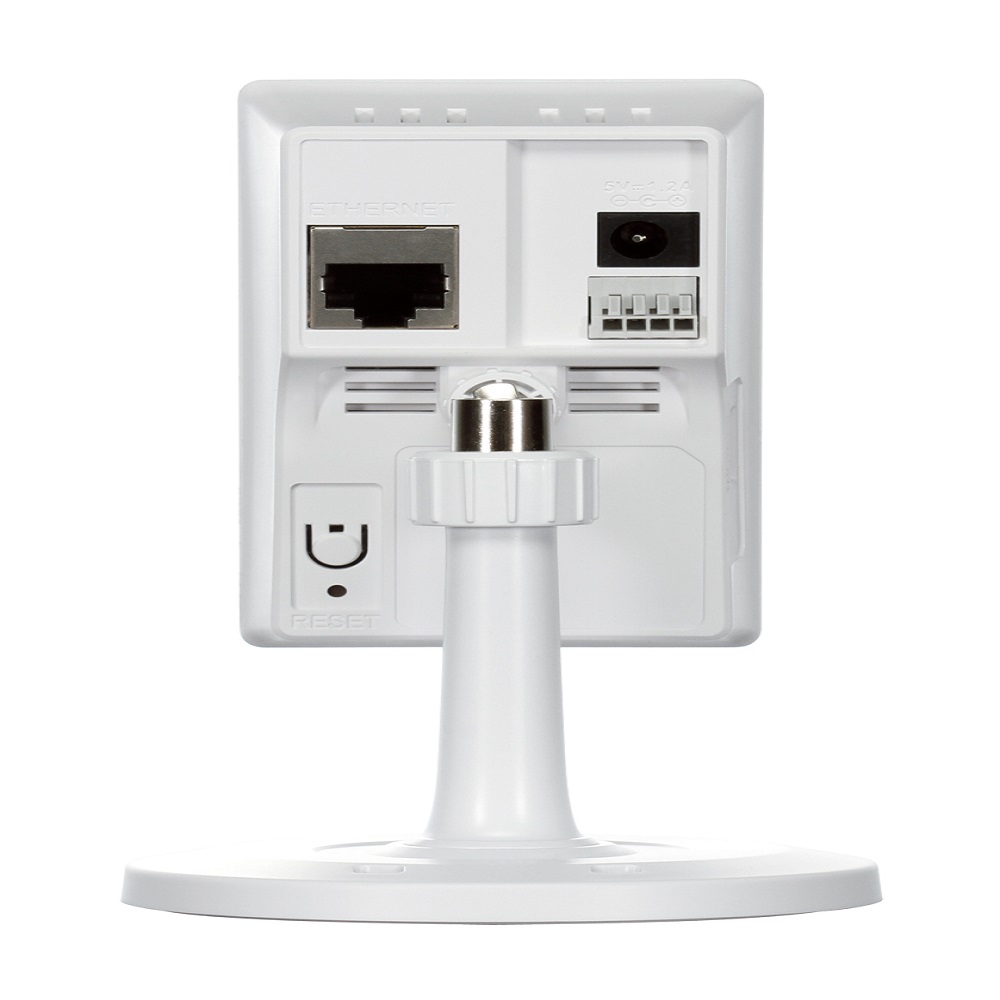

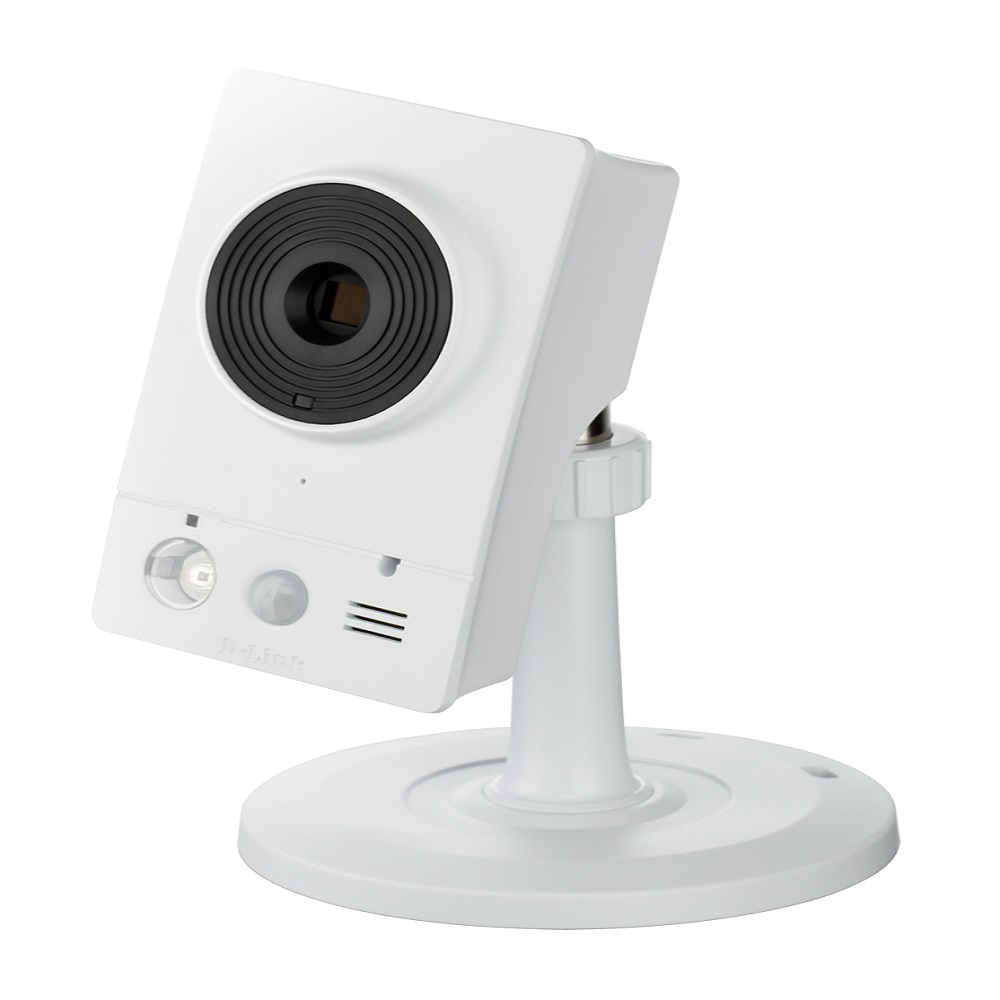

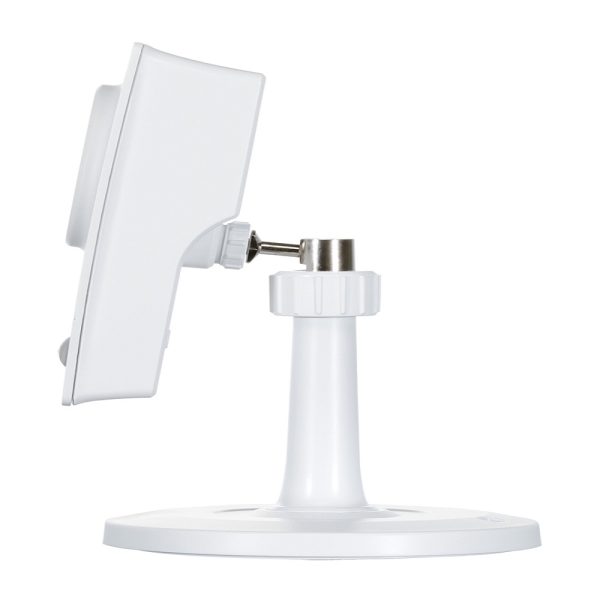

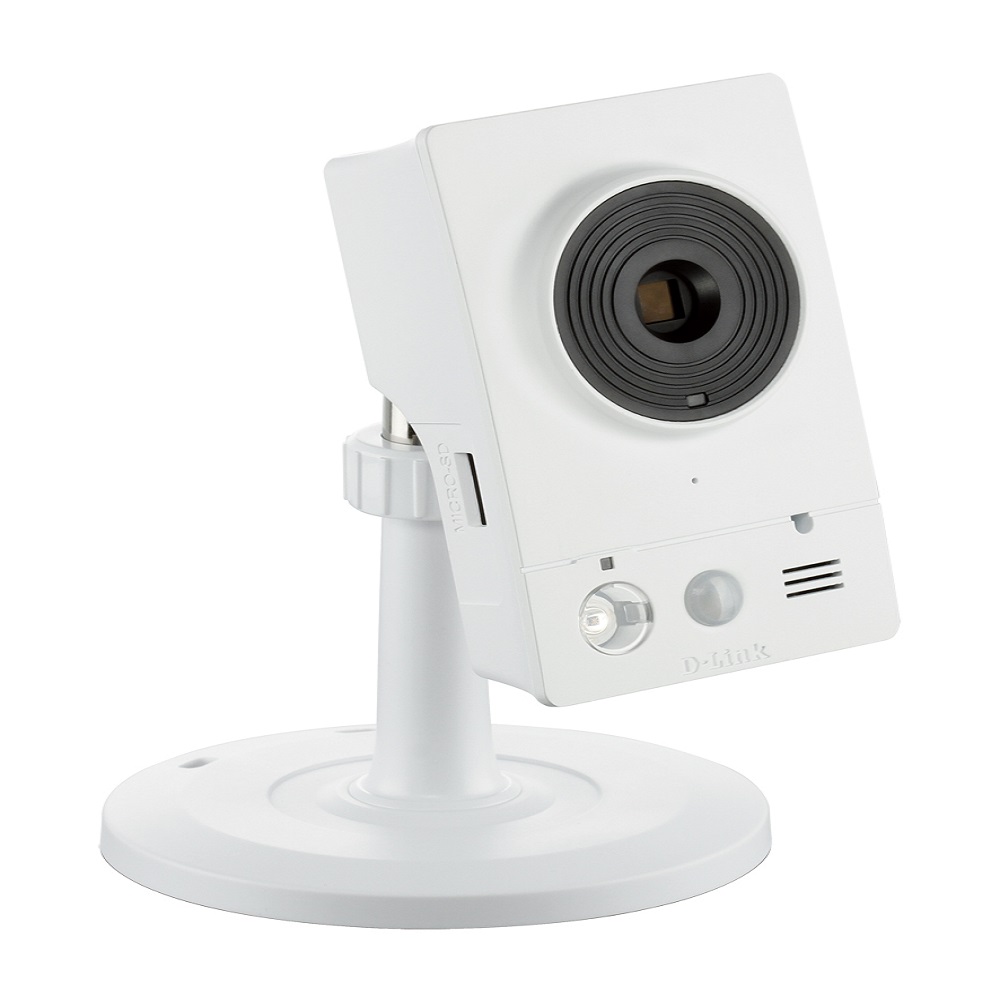

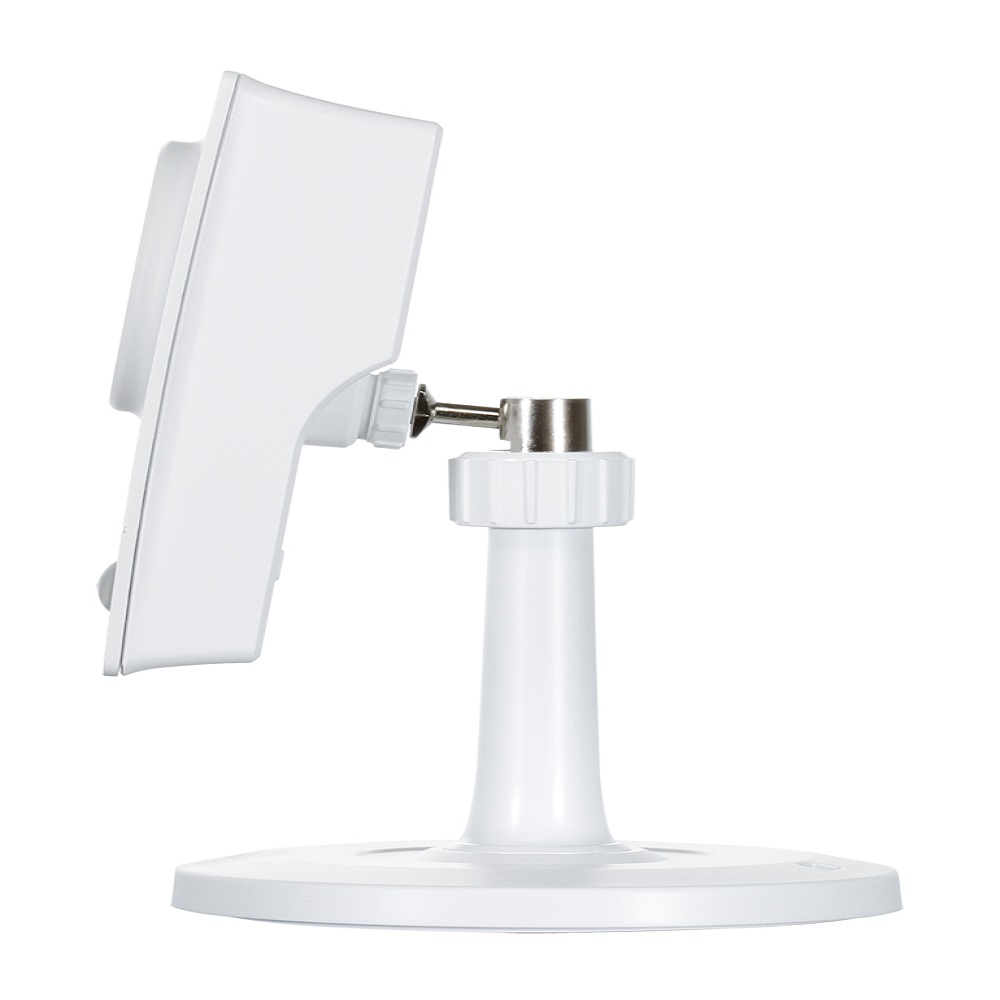

DCS-2132L D-Link HD Day & Night Network Cloud Camera

Out of Stock

HD Image Quality and Detail
A high resolution megapixel sensor provides 720p HD resolution to ensure that you capture the details you need.

All-Day Surveillance
A built-in ICR filter and IR illuminator let you monitor an area 24 hours a day, even in complete darkness.

mydlink-enabled Cloud Access
Easy remote viewing and management of your camera on your mobile device or through the mydlink website.


HD Day/Night Network Camera
The D-Link Cloud Camera 2200 (DCS-2132L) is an HD Day/Night Network Camera with Cloud Services. Monitor and protect your home or business anytime, anywhere – with the confidence of 720p HD clarity.

720p HD for Superior Image Quality
The Cloud Camera 2200 delivers the confidence of 720p HD video clarity, ensuring rich detail and crisp image quality for your surveillance recording. And with integrated night vision and PIR motion-sensing technology, the Cloud Camera 2200 remains vigilant 24 hours a day, whether you’re there or not.

Industry-Leading Remote Viewing with mydlink
With the free mydlink Lite app, you can monitor your home or business on your iPhone2, iPad2 or Android2 device and experience the peace of mind that comes from having round-the-clock surveillance at your fingertips. Check in on your home while you’re at work, or monitor your business when you’re out of the office with mydlink, you can keep an eye on what matters, whenever and wherever you want.

Make Easy Setup Even Easier – With Zero Configuration
Connecting your D-Link camera with any router is easy – make it even easier with your D-Link Cloud Router. Zero Configuration automatically configures and intelligently syncs your D-Link camera to your mydlink account – it’s as easy as connect and view!

Package Contents

  • Cloud Camera 2200 (DCS-2132L)
  • Ethernet Cable
  • Power Adapter
  • Quick Install Guide

Minimum System Requirements
Wired (10/100 Fast Ethernet) or Wireless (802.11g or 802.11n) Network (Wireless N network recommended for optimum wireless performance)
Computer with:

  • 1.3GHz Processor
  • 128MB Memory
  • Windows® 75 ,WindowsVista®5 andWindows® XP SP2®5, or MacOS X (10.5 and above, Intel Processor).
  • Internet Explorer® v6, Mozilla® Firefox® v3.0, Google® Chrome v2, or Safari® v4

For Internet Access:

  • Cable orDSL Modem
  • Subscription with an Internet Service Provider(ISP)


  • mydlink.com Portal for Remote Camera Management.
  • 1/4”Megapixel CMOS progressive sensor.
  • Fixed lens: 3.45 mm F2.0.
  • Passive infrared (PIR) sensor for enhanced motion detection.
  • Built-in infrared-cut removable (ICR) filter for all day surveillance.
  • Built-in IR LED illuminator for use in dark areas.
  • Built-in microphone and speaker for 2-way communication.
  • ONVIF compliant.
  • 802.11n wireless connectivity.
  • 10/100 Fast Ethernet port.
  • Micro SD/SDHC Card slot for onboard storage.
  • DI/DO port for connection to external devices.
  • HD resolution (1280 x 720) and up to 1MP (1280 x 800).
  • H.264, MPEG-4 and Motion JPEG compression.
  • ePTZ viewing.
  • Simultaneous multi-stream support.
  • Privacy Mask feature.
  • Supports multiple access lists.
  • Built-in Samba client for saving to aNAS.
  • 24/7 Basic Installation Support.

Technical Specifications
Hardware Profile

  • 1/4”Megapixel progressive CMOS sensor.
  • 5 meter IR illumination distance.
  • Minimum illumination: 0 lux with IR LED on.
  • Built-in Infrared-Cut Removable (ICR) Filter module.
  • Built-in PIR sensor (5 meter).
  • Built-in microphone and speaker.
  • 10x digital zoom.
  • Focal length: 3.45 mm.
  • Aperture: F2.0.

Field of View

  • (H)57.8°, (V) 37.8°, (D) 66°.

Image Features

  • Configurable image size, quality, frame rate, and bitrate.
  • Time stamp and text overlays.
  • Configurable motion detection windows.
  • Configurable privacy mask zones.
  • Configurable shutter speed, brightness,saturation, contrast, and sharpness.

Video Compression

  • H.264/MPEG-4/M JPEG simultaneous format compression.
  • H.264/MPEG-4 multicast streaming.
  • JPEG for still images.

Video Resolution

  • 16:9 – 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fpsrecording7.
  • 4:3 – 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fpsrecording7.

Audio Support

  • G.726.
  • G.711.

External Device Interface

  • 10/100 BASE-TX Fast Ethernet port.
  • 802.11n wireless8.
  • DI/DO port.
  • MicroSD/SDHC card slot.

Network Protocols

  • IPv6.
  • IPv4.
  • TCP/IP.
  • UDP.
  • ICMP.
  • DHCP client.
  • NTP client (D-Link).
  • DNS client.
  • DDNS client (D-Link).
  • SMTP client.
  • FTP client.
  • Samba client.
  • PPPoE.
  • UPnP port forwarding.
  • IP filtering.
  • QoS.
  • CoS.
  • Multicast.
  • IGMP.
  • ONVIF compliant.


  • Administrator and user group protection.
  • Password authentication.
  • HTTP and RTSP digest encryption.

System Management
System Requirements for Web Interface

  • Browser: Internet Explorer, Mozilla Firefox, or Google Chrome.

Event Management

  • Motion detection.
  • Event notification and upload snapshots/video clips via email or FTP.
  • Supports multiple SMTP and FTP servers.
  • Multiple event notification.
  • Multiple recording methods for easy backup.

Remote Management

  • Configuration accessible via web browser.
  • Take snapshots/video clips and save to local hard drive or NAS via web browser.

Mobile Support

  • Windows 7®/Vista®/XP® system, Pocket PC, or mobile phone with 3GPP playback support.
  • mydlink™ mobile apps for iOS and Android mobile devices.

D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 7/Vista/XP.
  • Web Browser: Internet Explorer 7 or higher.
  • Protocol: Standard TCP/IP.

D-ViewCam™ Software Functions

  • Remote management/control of up to 32 cameras.
  • Viewing of up to 32 cameras on one screen.
  • Supports all management functions in web interface.
  • Scheduled motion triggered or manual recording options.

General Specifications
External Power Adapter

  • Input: 100 to 240V AC, 50/60Hz.
  • Output: 5V DC, 1.2A.

Max. Power Consumption

  • 3.65 watts.

Operating Temperature

  • 32 to 104° F (0° to 40° C).

Storage Temperature

  • -4° to 158° F (-20° to 70° C).

Operating Humidity

  • 20% to 80% non-condensing.

Storage Humidity

  • 5% to 95% non-condensing.


  • CE.
  • CE LVD.
  • FCC.
  • C-Tick.


  • 2.28”x 5.04”x 3.5”(58 mm x 127.9 mm x 89 mm).


  • 0.26lb (116g) ± 5%.
