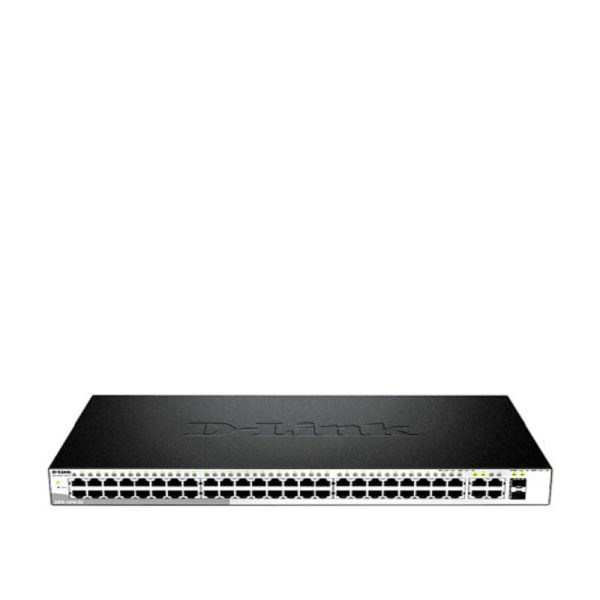

The D-Link® Web Smart switch DES-1210-52 is equipped with 48 10/100Mbps ports and 4 Gigabit ports (two UTP and two combo UTP/SFP ports), integrates advanced management and security functions to provide performance and scalability. While easy to use, the DES-1210-52 provides a complete and affordable solution for small and medium businesses. Management options for the switch include SNMP, Web Management, SmartConsole Utility, and compact Command Line. The DES-1210-52 also supports ACL filtering and the D-Link Safeguard Engine™. Furthermore, the DES-1210-52 uses Auto Voice VLAN, ensuring higher priority for voice traffic. The switch comes with an innovative fanless design in 19” metal case.
Seamless Integration
The Web Smart switch DES-1210-52 is designed to provide SMB users complete control over the network. With Ethernet and Gigabit copper ports capable of connecting to existing Cat.5 twisted-pair cables, this switch eliminates the need for a complex reconfiguration process. The DES-1210-52 allows for a flexible connection to a backbone or servers. Additionally, all ports support auto-negotiation of MDI/MDI-X crossover, or configurable auto MDI, and therefore do away with crossover cables or uplink ports. This brings inexpensive and easy connectivity to your desktop.
Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, this switch includes IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. Cable Diagnostics are designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error.
QoS, Bandwidth Control
The switch is perfect for deployment in a VoIP environment, as it supports Auto Voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP application. Auto Voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service.
With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With Bandwidth Control, the network administrator can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.
Secure Your Network
The innovative D-Link Safeguard Engine function protects the switch against traffic flooding caused by virus attacks. The DES-1210-52 switch supports 802.1x port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by allowing an administrator to restrict the access of a network through a variety of means including MAC address, IP, UDP/TCP, and even VLAN ID.
Versatile Management
The new generation of Web Smart Switch provides growing businesses simple and easy management of their network using an intuitive SmartConsole Utility or web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole Utility easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC and it provides an easy initial setting of the Smart Switches. Switches with the same L2 network segment that are connected to the user’s local PC are displayed on screen for instant access. This allows extensive switch configuration settings and basic configuration of discovered devices such as password changes and firmware upgrades.
The DES-1210-52 also supports D-View 6.0 and Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security in a consistent way. D-View 6.0 provides a useful set of tools for network administrators who want to effectively manage device configurations, fault tolerance, performance, and security. CLI management through Telnet makes the adjustment of basic settings such as password changes or firmware and configuration file uploads possible.
Features
Flexible Hardware Design
- 24/48 10/100 BASE-TX port configurations
- 2 Combo 1000 BASE-T/SFP ports
- 802.3at (PoE+)1 and 802.3af (PoE)2 capable
Security Features
- Access Control List
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
- DHCP Server Screening
- Smart IP-MAC-Port Binding
Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Loopback Detection
- Cable Diagnostics
- LLDP/LLDP-MED.
Intuitive Management
- Can be managed through the D-Link Network Assistant Utility or the Web-based GUI.
- Built-in SNMP MIB for remote NMS (D-View 6.0).
- Compact CLI through Telnet.
Technical Specifications
General
Size
- 19” metal case
Interface
- 48 10/100BASE-TX
- 2 1000BASE-T
- 2 Combo 10/100/1000BASE-T / 100/1000SFP
Port Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
- IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
- Auto-negotiation
- IEEE 802.3x Flow Control
Performance
Switching Capacity
- 17.6 Gbps
64-byte Maximum Forwarding Rate
- 13.1 Mpps
Packet Buffer Memory
- 13.1 Mbits
MAC Address Table Size
- 16K Entries
Flash Memory
- 16 MB
Forwarding Method
- Store and forward
LEDs
- Power (Per Device)
- Link/Active/Speed (Per Port)
Physical/Environmental
MTBF
- 429,482 hours
Acoustic
- 0 dB
Heat Dissipation
- 47.81 BTU/h
Power Input
- 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply
Maximum Power Consumption
- 14.77 watts
Dimensions (W x D x H)
- 440 x 210 x 44 mm (17.32 x 8.27 x 1.73 inches)
Cooling Fans
- Fanless
Operation Temperature
- -5-50° C (23-113° F)
Storage Temperature
- -20-70°C (-4-158°F)
Operating Humidity
- 5% to 95% non-condensing
EMI
- FCC Class A
- CE Class A
- VCCI Class A
- IC, C-Tick
Safety
- cUL
- CE LVD
- cUL
- CE LVD
