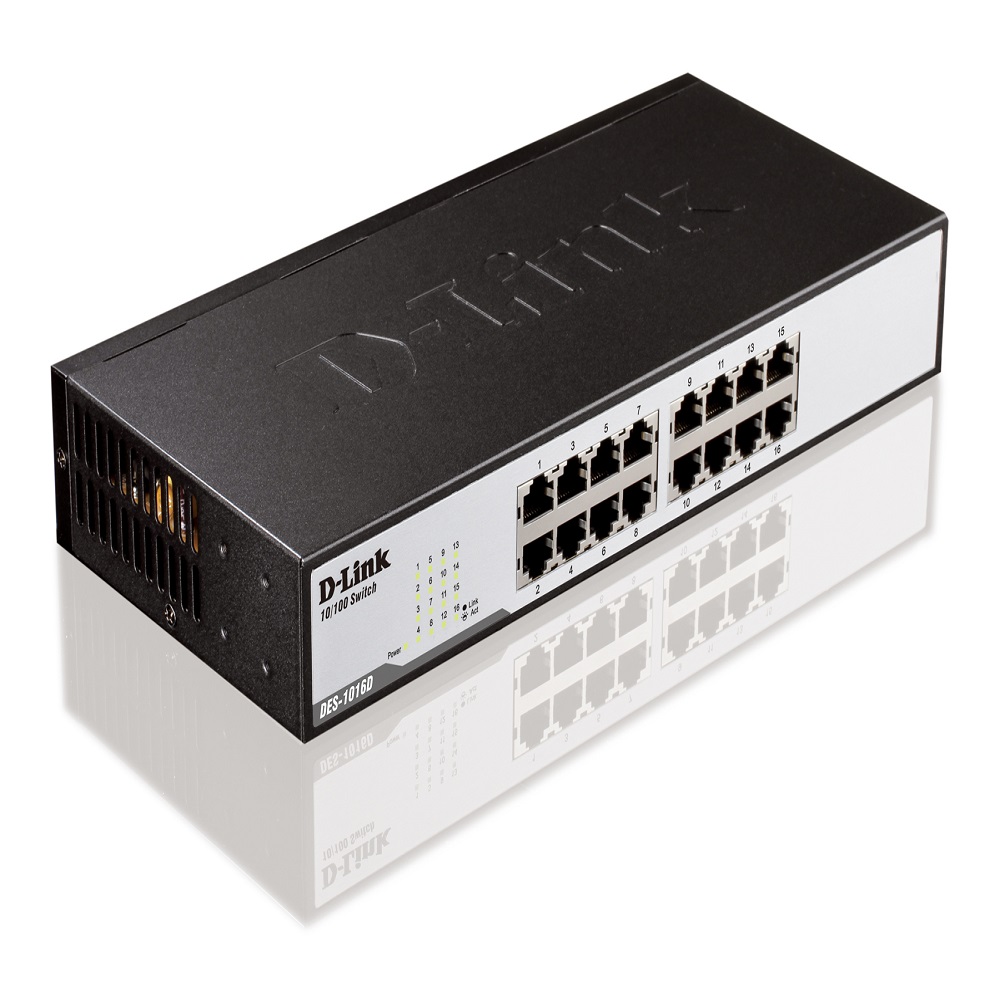

DES-1016D D-Link 16 Port 10/100Mbps Desktop Switch

Out of Stock
Description

16-Port 10/100Mbps Switch for SOHO/Workgroup
10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.

Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port’s receiving buffer is full.

Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.

Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in full duplex, or hubs in half-duplex.

Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network. Actual product appearance may differ from the image displayed on this page.

Features

  • 16 10/100Mbps ports
  • Auto MDI/MDIX for each port
  • Full/half-duplex support for each port
  • Flow control for protection against data loss for each port
  • Uto-learning of network configuration
  • Secure store-and-forward switching scheme
  • Per-port auto-correction of reverse twisted-pair polarity
  • Compact desktop size

Technical Specifications:
General:
Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation

Protocol

  • CSMA/CD

    Data Transfer Rates

  • Ethernet:
    10Mbps (half-duplex)
    20Mbps (full-duplex)
  • Fast Ethernet:
    100Mbps (half-duplex)
    200Mbps (full-duplex)

    Topology

  • Star

    Network Cables

  • 10BASE-T:
    UTP Cat. 3, 4, 5 (100 m)
    EIA/TIA-568 100-ohm STP (100 m)
  • 100BASE-TX:
    UTP Cat. 5 (100 m)
    EIA/TIA-568B 100-ohm STP (100 m)

    Number of Ports

  • 10/100Mbps port x 16

Media Interface Exchange

  • Auto MDI-II/MDI-X for each port

Twisted-pair Rx Reverse Polarity

  • Auto-correction for each port

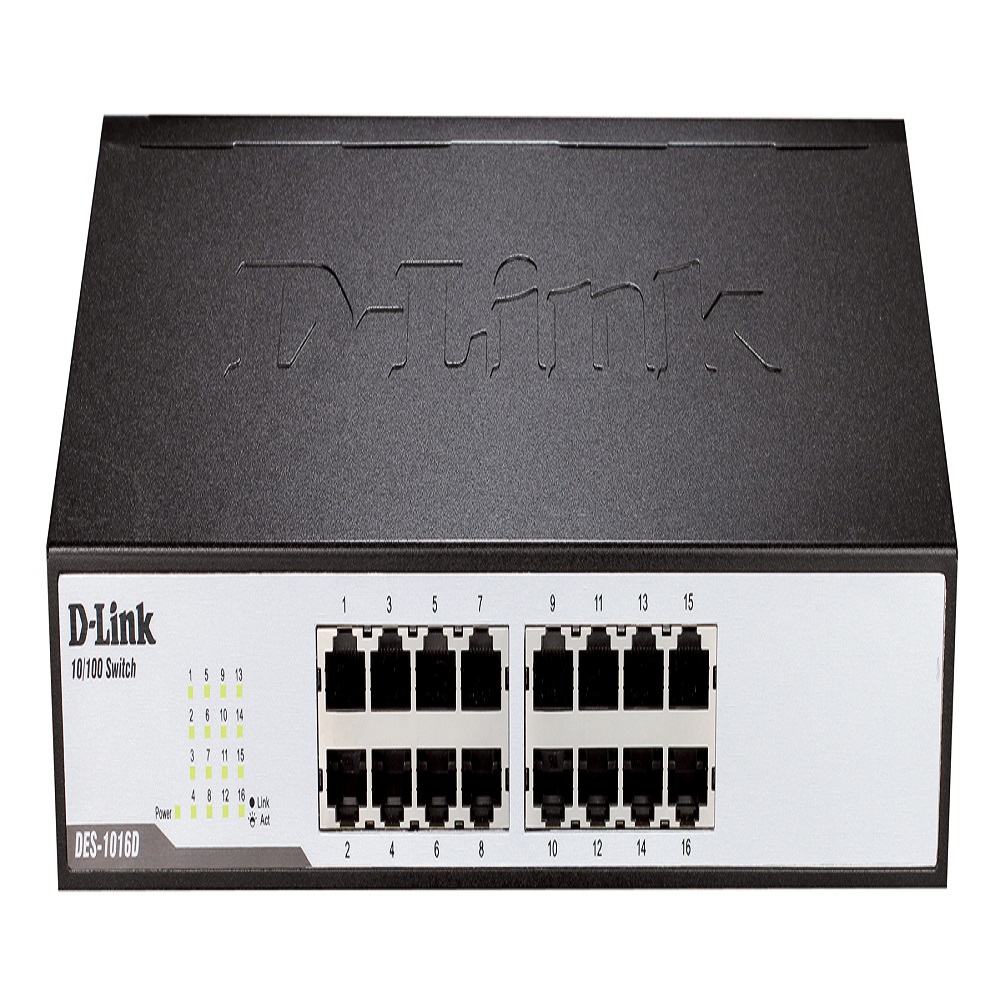

Diagnostic LEDs

  • Per device:
    – Power
  • Per port:
    – Link/Activity
    – Full-duplex/Collision
    – 100Mbps speed

Performance
Transmission Method

  • Store-and-forward

Filtering Address Table

  • 8K entries per device

MAC Address Learning

  • Automatic update

Packet Filtering Rates

  • 10BASE-T: 14,880 pps per port (half-duplex)
  • 100BASE-TX: 148,810 pps per port (half-duplex)

Packet Forwarding Rates

  • 10BASE-T: 14,880 pps per port (half-duplex)
  • 100BASE-TX: 148,810 pps per port (half-duplex)

RAM Buffer

  • 4MBits per device

Physical & Environmental

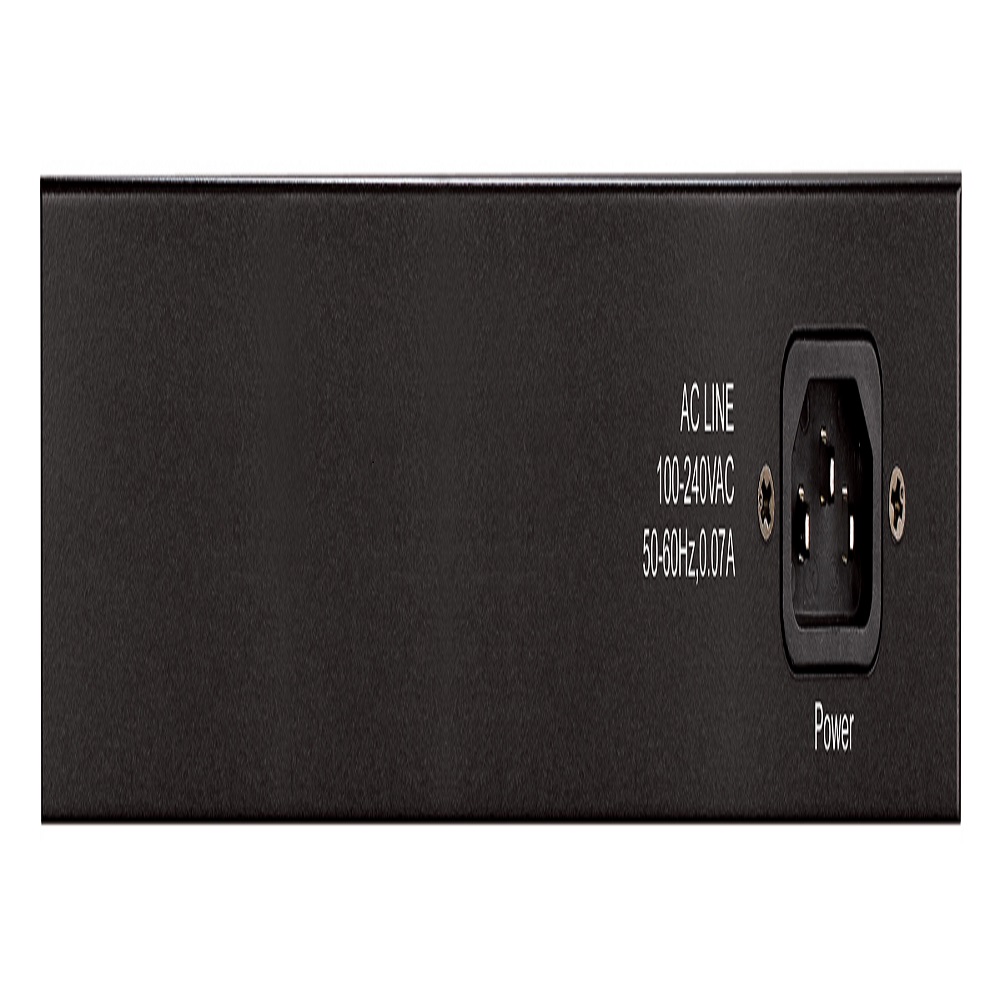

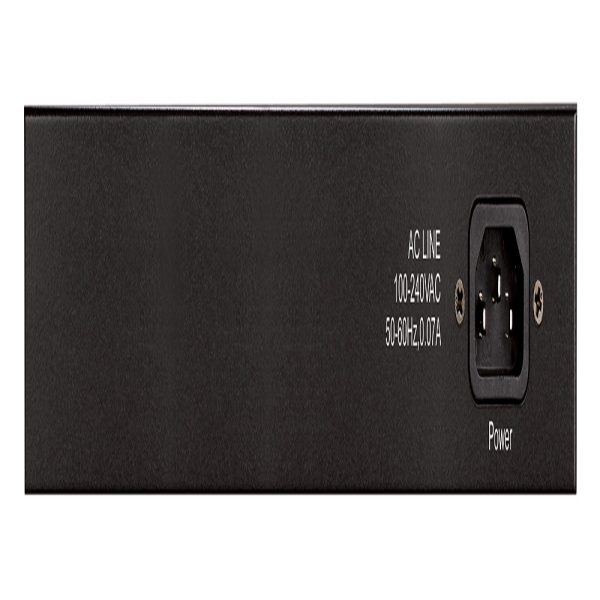

Power Supply

  • 100 – 240 VAC, 50/60 Hz 0.3A
  • Internal universal power supply

Power Consumption

6 watts (max.)

Ventilation

  • no DC fan required

Operating Temperature

  • 0 – 40 C

Storage Temperature

  • -10 – 70 C

Humidity

  • 5% – 90%

Dimensions

  • 280 (W) x 180 (D) x 44 (H) mm

Weight

  • 2.8 kg

Emission (EMI)

  • FCC Class A
  • CE Class A
  • VCCI Class A

Safety

  • CUL
  • CB
