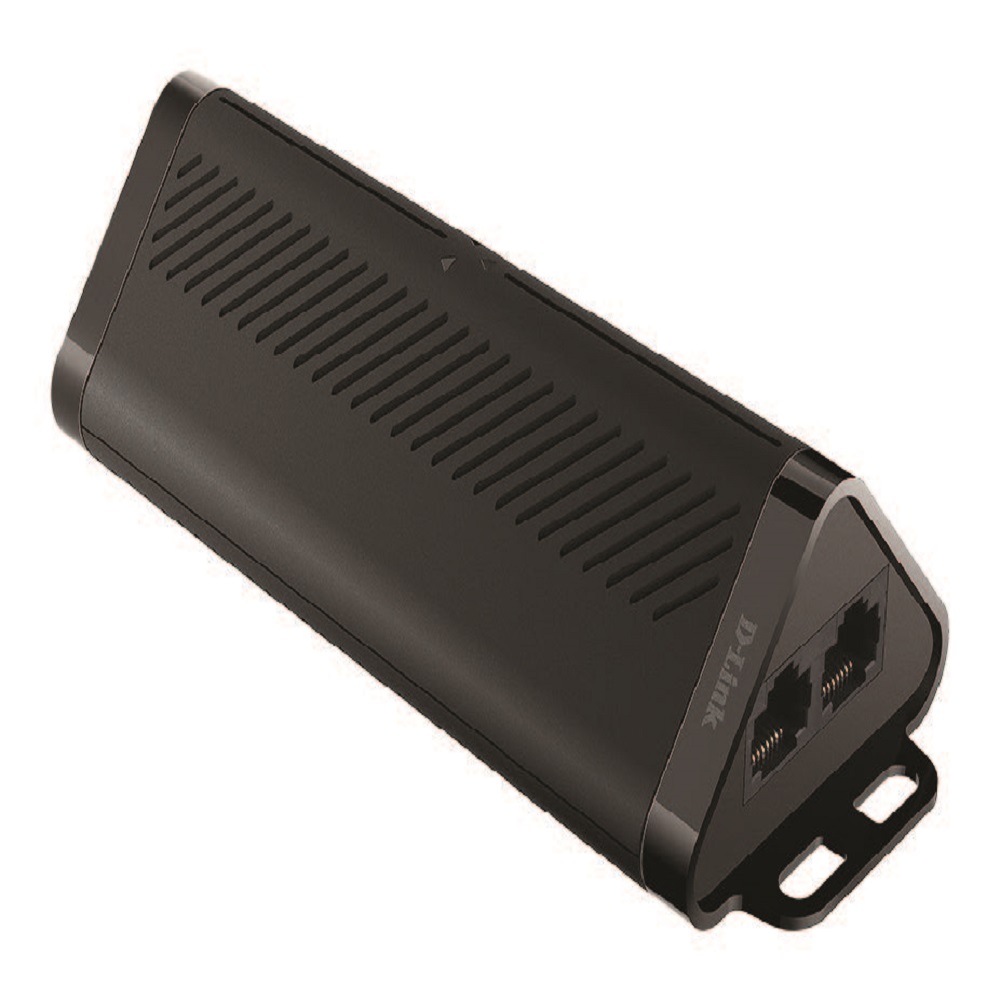

DPE-302GE D-Link 2-Port Gigabit PoE Extender

In Stock

Long Range Power over Ethernet
Exceed the physical limit of traditional PoE connections by extending a PoE Ethernet link over a distance of up to 500 meters using multiple units.

Plug and Play
Full plug and play installation, and does not require an external power supply while simultaneously maintaining full-rate network throughput.

High-Performance PoE
Power up to two remote PoE-compliant products requiring a Gigabit connection with IEEE 802.3af and 802.3at PoE in areas over long distances.


The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power over Ethernet connection to be extended up to 500 m1. It is designed to transmit data and supply up to 30 W of power to PoE-capable devices such as PTZ IP cameras or 802.11ac wireless access points, using PoE power source equipment (PSE). With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.

Powers More Devices Over Longer Distances
The DPE-302GE offers a plug and play PoE solution, capable of transmitting up to 10 to 30 W of output power for up to two devices over a maximum distance of 500 m by daisy-chaining up to 4 units. With support for IEEE 802.3af/at PoE (+) and Gigabit speeds, the DPE-302GE is designed to be deployed in situations with high bandwidth requirements. Furthermore, the DPE-302GE can also be used in combination with the DPE-301GS PoE Splitter to also power non-PoE devices over long distances.

Flexible Deployment
The DPE-302GE is powered by only a very small fraction of PoE power, and when combined with three mounting methods (built-in magnet, screw anchors, and Velcro) and a smart triangular prism design, the DPE-302GE can be deployed virtually anywhere. This PoE solution frees network devices from the restrictions of power availability by removing the need for a local power source. The DPE-302GE is also capable of operating in temperatures of up to 60 °C (140 °F), offering up additional installation options.

Reliable Connectivity
The DPE-302GE 2-Port Gigabit PoE Extender intelligently communicates the maximum available current with a Powered Device (PD). This protection feature keeps the device safe from damage by preventing it from powering on in case there is not enough current. This safety feature can also automatically disable the port in the event of an electrical short circuit.


  • Plug and play with no software required.
  • Multiple mounting options for flexible placement.
  • Provides power over existing network cabling to remote PoE-capable devices.
  • Lightweight and compact.
  • One PoE input port to dual PoE output ports.
  • Three arrow LEDs to indicate the direction of the power and data flow.

Gigabit Connectivity

  • Deliver PoE power over 10/100/1000 Mbps connections up to 500 meters (1,640 ft).
  • Connect and power Gigabit devices
  • Auto-negotiation on Ethernet ports
  • Full-rate network throughput


  • Compliant with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).
  • Compatible with all standard PoE devices.
  • Regulates power output to avoid damaging the connected device.
  • Withstands operating temperatures of up to 60 °C (140 °F).

Technical Specifications
PoE + Data Ports (IN)

  • 1 x 10/100/1000BASE-T RJ-45 port
  • Supports half/full-duplex

PoE + Data Ports (OUT)

  • 2 x 10/100/1000BASE-T RJ-45 ports
  • Supports half/full-duplex


  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3x Flow Control

Indicator LEDs (Per Unit)

  • 1 x PoE In
  • 2 x PoE Out
  • Solid blue: PoE connected
  • Blinking blue: PoE budget overload

Dimensions (L x W x H)

  • 155 x 60 x 40 mm (5.91 x 2.36 x 1.57 in)


  • 154 g (5.43 oz)

Power Input

  • Power over Ethernet

Power Consumption

  • Maximum: 3.05 W
  • Standby: 1.61 W


  • Operating: -10 to 60 °C (14 to 140 °F)
  • Storage: -40 to 85 °C (-40 to 185 °F)


  • Operating: 10% to 95% non-condensing
  • Storage: 5% to 95% non-condensing


  • CE
  • FCC
  • LVD/CE
  • IC
