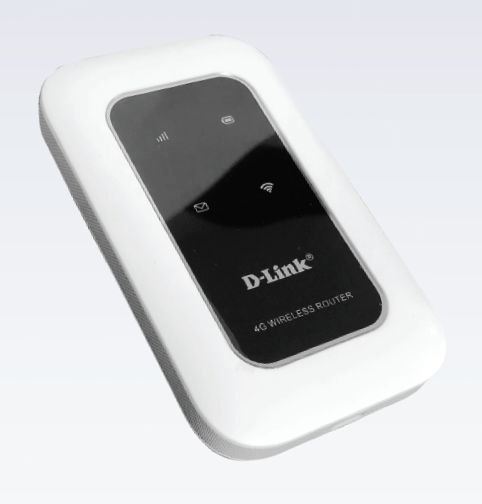

The DWR-932M 4G/LTE Mobile Router is a 4G LTE Cat4 high-speed broadband wireless WAN (WWAN) to Wi-Fi mobile hotspot. The DWR-932M uses a 4G Internet connection to give you an easy-to-set-up Wi-Fi network anywhere you need one. Instead of limiting your mobile Internet connection to a single device through a USB dongle, the DWR-932M allows you to create a Wi-Fi hotspot to share your connection with multiple Wi-Fi devices. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.
Connect Anywhere
Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-932M is perfect for when you need to quickly set up an impromptu network; it’s ideal for business trips when you need to share an Internet connection with everybody during a meeting, or use it for travel, allowing you to provide all your travel companions with Internet access.
Security Features Help Protect Your Network
The DWR-932M 4G/LTE Mobile Router is easy-to-use and includes a host of security features. Wi-Fi Protected Setup (WPS) allows you to quickly add new devices at the touch of a button, getting you connected in no time.
Flexible Usage
The DWR-932M 4G/LTE Mobile Router gives you instant connectivity, all in a powerful yet pocket-sized device. The rechargeable 2100 mAh Li-on battery allows you to stay connected for long periods of time. Plug-and-play with no complicated software to install, getting online with the DWR-932M 4G/LTE Mobile Router is quick, easy, and convenient.
Features
Connectivity
- Uses a USIM card to connect to the Internet
- Compatible with 802.11b/g/n wireless devices
- Micro-USB port for easy charging
Portability
- Up to five hours of battery in one charge so you stay connected longer.
- Small size lets you drop it in a purse or pocket and take it wherever you go.
Security
- WPA/WPA2 Wi-Fi security protocols for industry-standard encryption.
- Built-in firewall helps keep unwanted connections out.
- Wi-Fi Protected Setup (WPS) for one-touch setup.
Technical Specifications:
General:
Frequency Support
- FDD-LTE: Band 1/3/5/7/8/20
- UMTS/HSDPA/HSUPA: 2100/900 MHz
- GSM/GPRS/EDGE: 900/1800 MHz
- TDD-LTE: Band 38/40
Data Throughput
- Downlink up to 150 Mbps
- Uplink up to 50 Mbps
Security
- WPA/WPA2 PSK Auto (TKIP/AES)
- WPS Push-Button Connection
Advanced Functions
- Built-in firewall
- Built-in NAT
- UPnP
Physical:
Interfaces
- 802.11n/g/b wireless LAN
- Standard mini-SIM card interface
- Micro-USB port
Antenna
- Internal LTE antenna
- Internal Wi-Fi antenna
LED
- Power Status
- SMS Status
- Wi-Fi Status
- Cellular Signal Strength
Power
- DC 5 V/1 A ± 5%
- 2100 mAh Li-ion battery
Dimensions
- 59 x 98 x 15.5mm
Weight
- 86.04g
Operating Temperature
- -10 to 60˚C
Storage Temperature
- -30 to 80˚C
Operating Humidity
- 5% to 65% (non-condensing)
Certifications
- CE
- RoHS
