overview
Excellent Hardware Designs
With the special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment

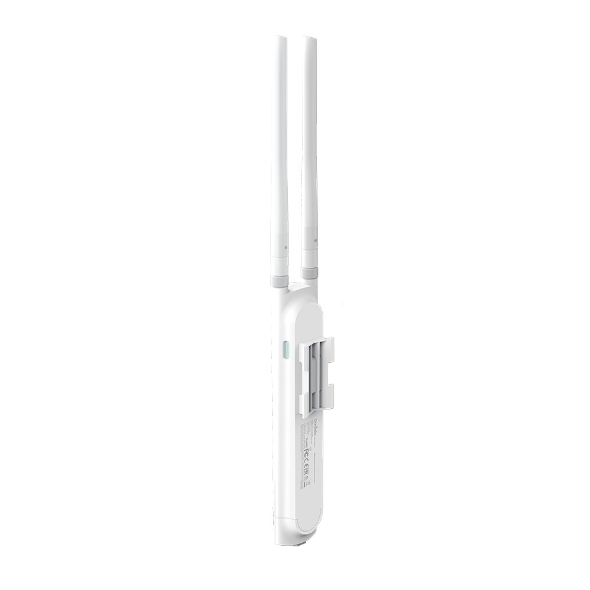

EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.§
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
specifications:-
HARDWARE FEATURES

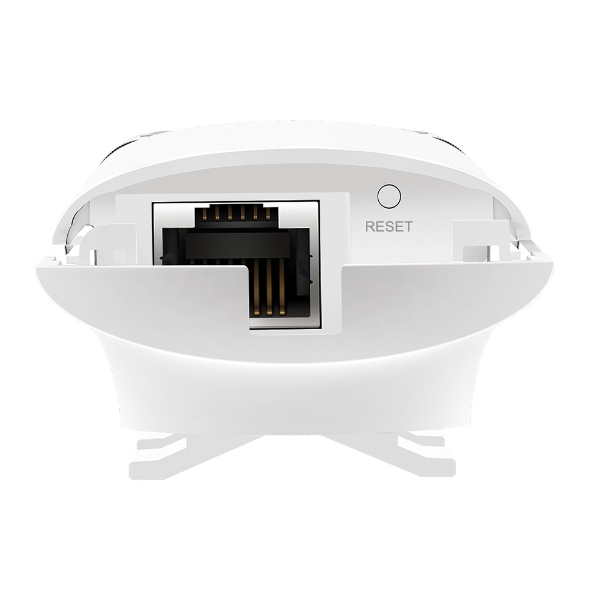

Interface: 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button: Reset
Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: 3.12 W

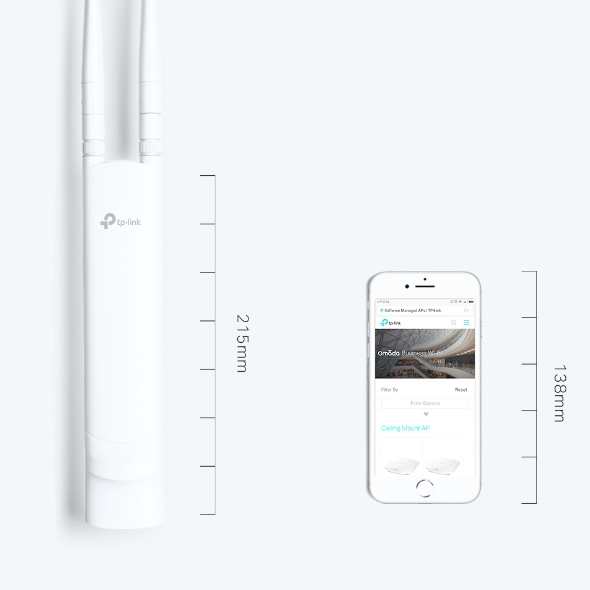

Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1 in (216 × 46 × 27 mm)
Antenna Type: 2× 3 dBi External Omni waterproof
Weatherproof Enclosure: IP65
Mounting: Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards: IEEE 802.11n/g/b
Frequency: 2.4 GHz
Signal Rate:
• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)
Transmit Power:
• CE: ≤20 dBm (EIRP)
• FCC: ≤22 dBm
Wireless Functions:
• Multiple SSIDs（Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App: Yes
Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
• 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Rubber Insert
• Waterproof Antennas
• Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment:
• Operating Temperature: -30–65 ℃ (-22–149 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
