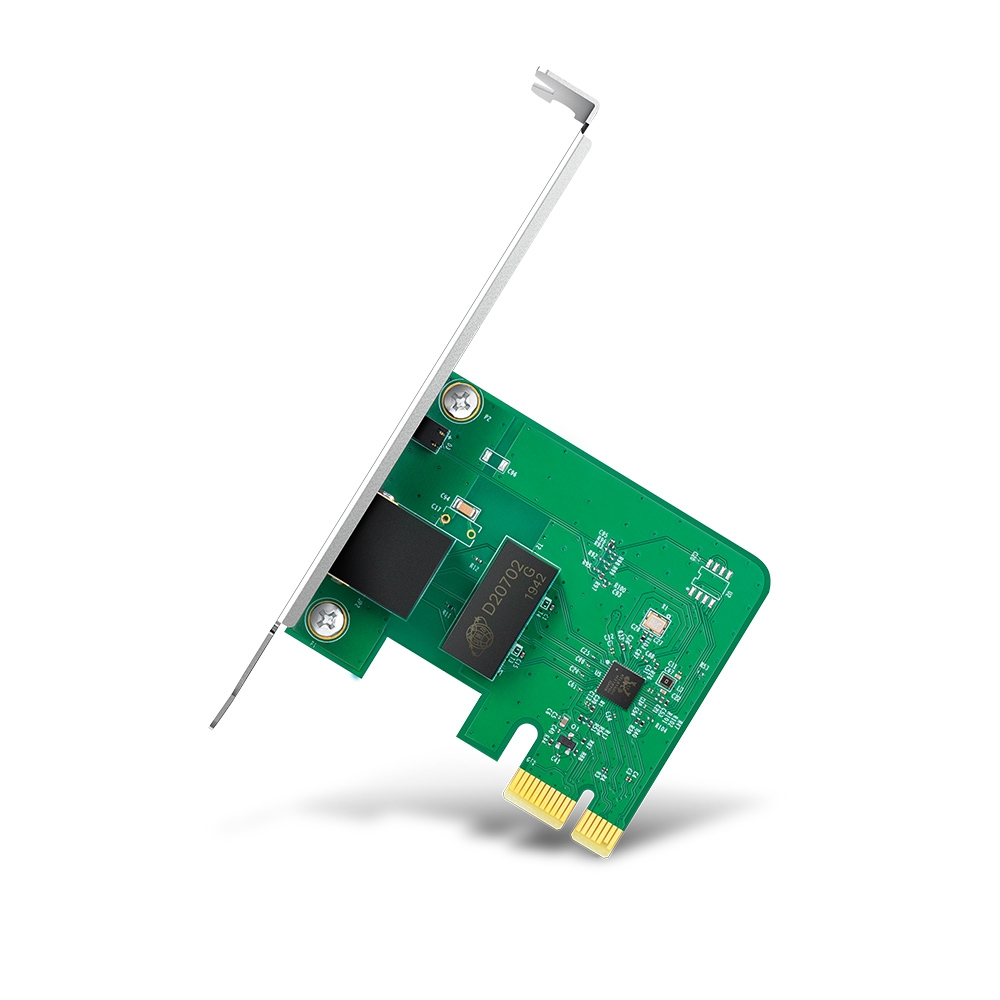

TG-3468 saves the finite chassis space, simply insert the adapter into a free PCI-E slot in your desktop and connect to your desktop with an Ethernet cable. Backward compatible with 100Mbps Fast
Ethernet products. Supports IEEE 802.1Q VLAN Tagging and 802.1p Layer 2 Priority Encoding for better network performance and security. TG-3468 features a 10/100/1000Mbps auto-negotiation RJ45 port,
eliminating manual switching.
Features
- Wake on LAN
- Flow control
- High speed
- Ease of Use
- Easy installation
- Backward Compatibility
- Reliability
Hardware Features
Standards
- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates
- 10/100/1000Mbps for Half-Duplex mode, 20/200/2000Mbps for Full-Duplex mode
Flow Control
- IEEE 802.3x Flow Control (Full-Duplex)
Interfaces
- PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
LED
- Status
Adapter Dimensions
- 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Package Contents
- Gigabit PCI Express Network Adapter TG-3468
- Quick Installation Guide
- Resource CD
- Low-profile Bracket
Certification
- FCC
- CE
- RoHS
- BSMI
- VCCI

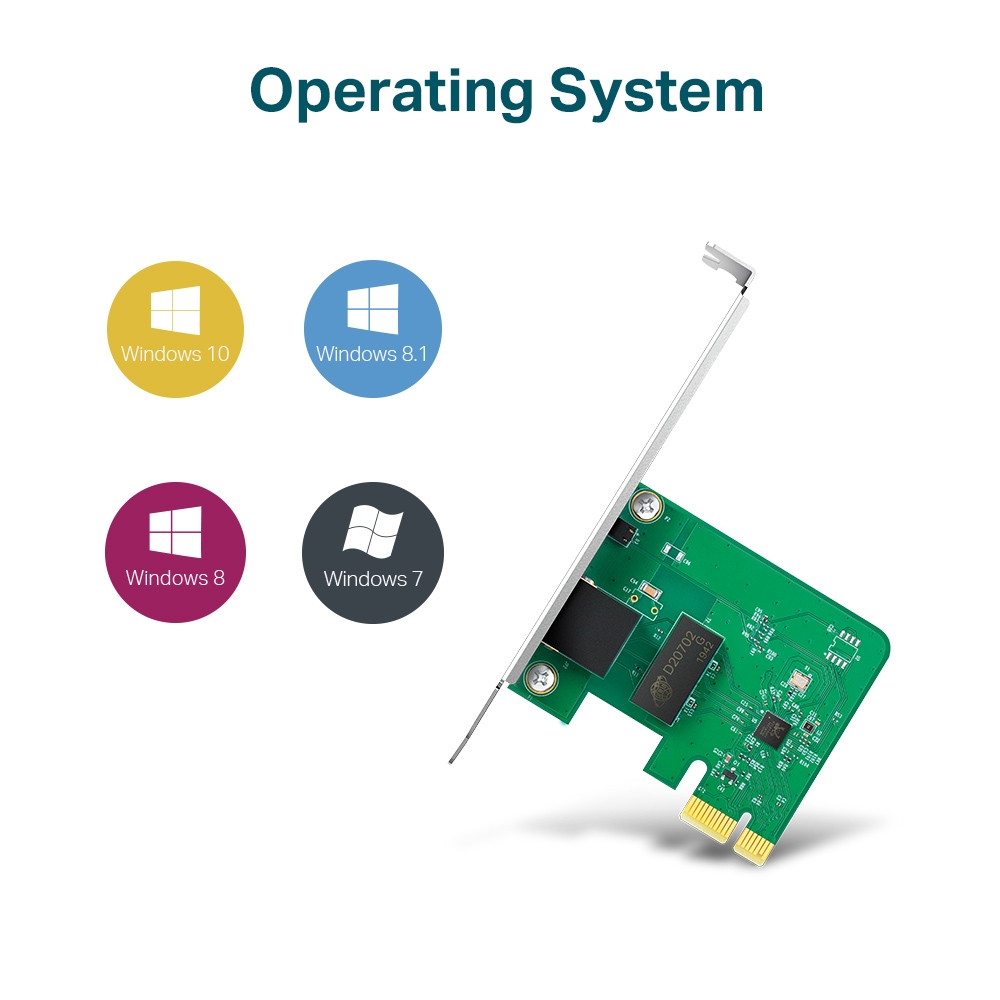

System Requirements
- Windows 10/8.1/8/7△
Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
