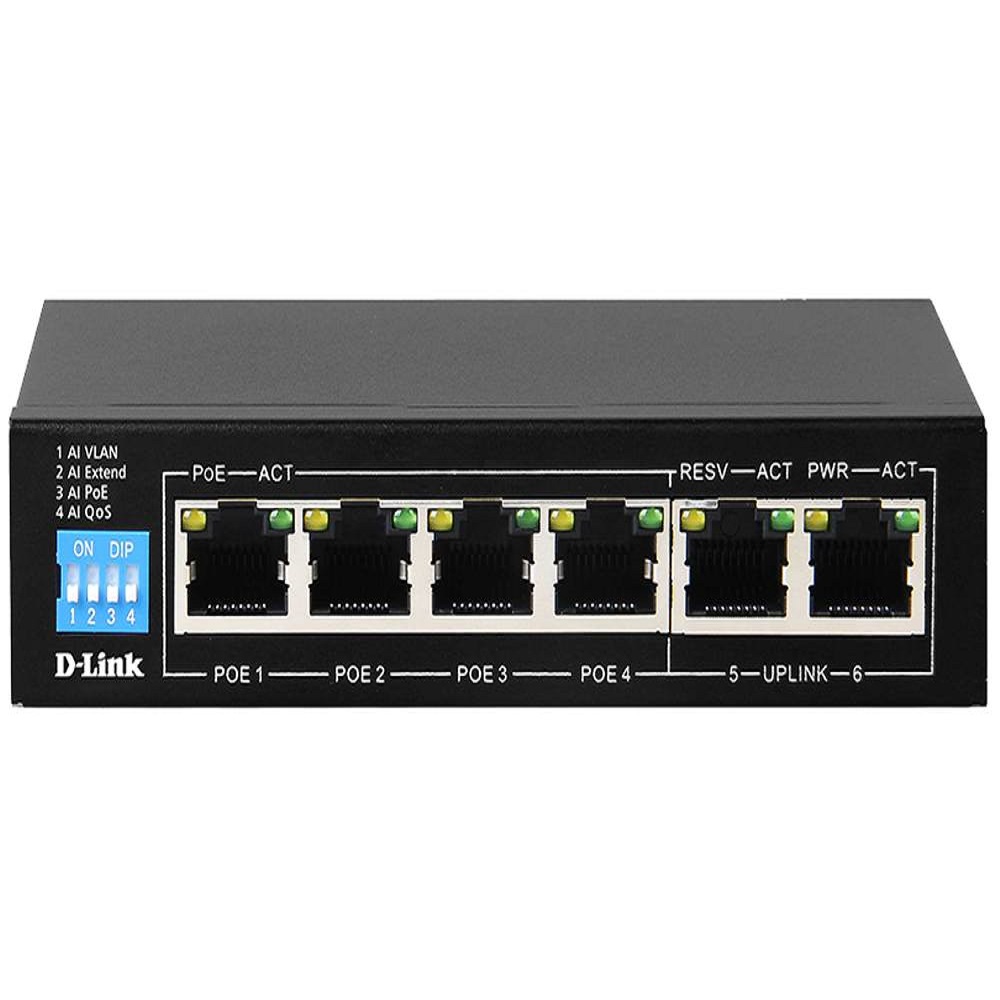

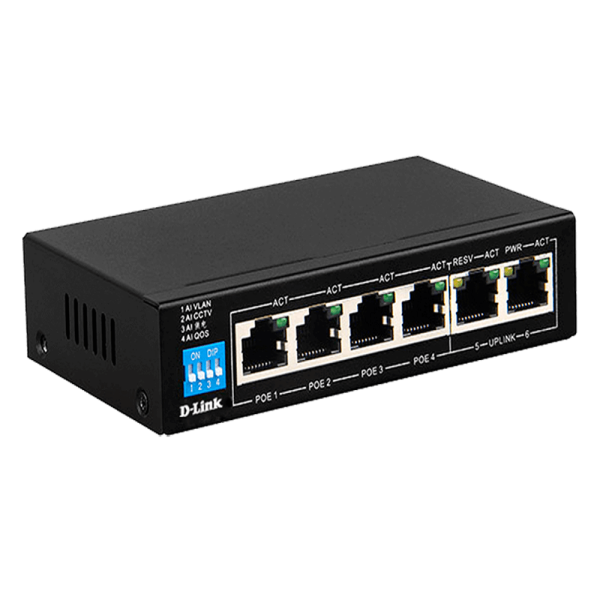

DGS-F1006P-E D-Link 6-Port 10/100/1000 Switch with 4 PoE Ports and 2 Uplink Ports

EGP2,500.00

Close
Price Summary
  • EGP2,500.00
  • EGP2,500.00
  • EGP2,500.00
In Stock
Highlights:

Power over Ethernet
Support for IEEE 802.3at/af Power over Ethernet (PoE) on ports 1 to 4 allows for powering of PoE-powered devices up to 250M.

PoE Power Budget
A large 60 W PoE power budget and up to 30 W per port for simultaneously powering multiple PoE-compatible devices

Plug-and-play
Plug-and-play installation means the switch can be quickly and easily installed without the need for any additional configuration.

Description

The D-Link DGS-F1006P-E 6-Port 10/100/1000 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGSF1006P-E is compact and operates silently, making it ideal for most rooms and offices

Power over Ethernet
DGS-F1006P-E features four 10/100/1000 BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port up to 250m and providing a total power budget of 60 W. You can connect compatible devices to the DGS-F1006P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

High Performance
The DGS-F1006P-E features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-F1006P-E maximizes network performance while minimizing the transmission of bad network packets.

Function
The DGS-F1006P-E, 6KV protected, is equipped with smart features
with a switch of button such as:

  • Extend – Support up to 250m distance power supply.
  • VLAN – Isolating ports 1-4 ports from each other can effectively suppress network storms and improve network performance smoother.
  • QoS – Prioritize the identified video data to make video transmission smoother.
  • PoE – Automatic detection power of port, power off and restart.

Technical Specifications:
General
Size

  • Desktop

Interfaces

  • 4 10/100/1000 BASE-T ports • 2 10/100/1000 BASE-T Uplink ports

Standards

  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x ow control

Media Interface Exchange

  • Auto MDI/MDI-X adjustment on all ports

Performance
Switching Fabric

  • 12 Gbps

Transmission Method

  • Adopt Store-and-forward

Lighting Protection

  • 6KV

Performance:
Switching Fabric

  • 12 Gbps

Transmission Method

  • Adopt Store-and-forward

Data Transfer Rates

  • Fast Ethernet
    • 100 Mbps
  • Gigabit Ethernet
    • 1000 Mbps

Packet Filtering / Forwarding Rates

  • 10M port maximum 14800pps
  • 100M port maximum 148800pps
  • 1000M port maximum 1488000pps

PoE:
PoE Standards

  • IEEE 802.3af
  • IEEE 802.3at

PoE-Capable Ports

  • Ports 1 to 4

Power Budget

  • 60 W (30 W max. per PoE port)

LEDs

  • Power
  • Link/Activity

Physical:
Weight

  • 0.75kg

Dimensions

  • 125 x 75 x 27 mm

Power

  • External power adapter: 60W

Temperature

  • Operating: 0 to 40 ËšC (32 to 104 ËšF)

Humidity

  • Operating: 0% to 95% RH non-condensing
  • Storage: 0% to 95% RH non-condensing

Certifications:
Safety

  • LVD
  • EMI/EMC
  • CE
  • FCC
