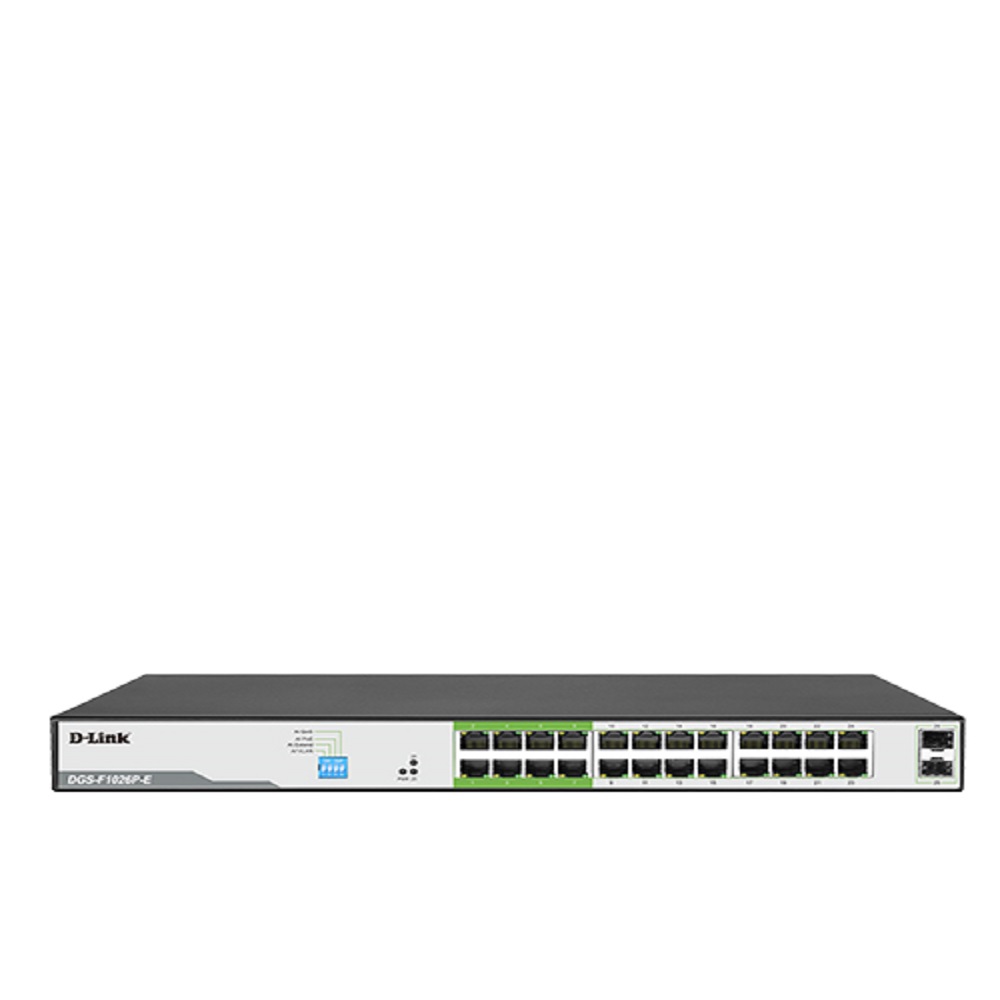

The D-Link DGS-F1026P-E24 Port Switch with 10/100/1000Mbps and 2 SFP Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. The DGS-F1026P-E can also connect other Ethernet devices like computers, printers and a Network Attached Storage (NAS) to fit into any type of network application.
Power over Ethernet
DGS-F1026P-E features twenty-four 10/100/1000 BASE-T ports that Support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port and Port 1-8 can support up to 250m, and providing a total power budget of 250W. You can connect compatible devices to the DGSF1024P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.
High Performance
The DGS-F1026P features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected devices. With wire-speed filtering and store-and-forward switching, the DGS-F1026P-E maximizes network performance while minimizing the transmission of bad network packets.
With SFP uplink port mean businesses can increase their network bandwidth using the speed of gigabit Ethernet and fiber.
Function
The DGS-F1026P-E 24Port switch with PoE and 2 SFP; 6KV protected is equipped with smart features with a switch of button such as :
- Extend – support up to 250m distance power supply.
- VLAN – Isolating 1-24 from each other can effectively suppress network storms and improve network performance.
- QoS – prioritize the identified video data to make video transmission smoother.
- PoE – Automatic detection power of port, power off and restart.
Expand and Upgrade Your Network
The DGS-F1026P-E offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed PoE networking.
It provides twenty-four PoE ports and 2 SFP port for easy expansion of your your network and supply power up to 250m* to your PoE devices. DGS-F1018P-E, Port 1 – 8 can supply power (802.3 af/at) up to 250m distance at 10Mbps, cost-effective solution for your SMB requirement. Unmanaged switch with rich function (Extend, VLAN, QoS and PoE) provides a reliable connection to your company infrastructure.
Features:
High-Speed Networking
- 24 10/100/1000 Mbps Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet/Gigabit
- 2 SFP Uplink
Functions
- VLAN
- EXTEND
- PoE
- QoS
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
PoE Functionality
- Twenty-Four PoE ports
- IEEE 802.3af/at compliant
- 25 0W total power budget
- Up to 30 W power output per PoE port
Technical Specifications:
General:
Size
- Desktop (with Mounting Kit)
Interfaces
- 24 10/ 100/1000 BASE-T ports
- 2 SFP
Standards
- IEEE 802.3ab,Gigabit Ethernet standards
- IEEE 802.3x,Full-duplex Ethernet data link layers;
- IEEE 802.3af/at ,Ethernet power supply POE standard;
- IEEE 802.3u,Fast Ethernet standard;
- IEEE 802.3ab,Gigabit Ethernet standards
OSI Layer
- Layer 2
Media Interface Exchange
- Auto MDI/MDI-X adjustment on all ports
Lighting Protection
- 6KV
Performance:
Switching Fabric
- 52 Gbps
Mac address
- 8K
Transmission Method
- Adopt Store-and-forward
Data Transfer Rates
- Gigabit Ethernet
– 1000 Mbps - Ethernet
– 100 Mbps
Packet Filtering / Forwarding Rates
- 10M port maximum 14800pps
- 100M port maximum 1488000pps
- 1000M port maximum 1488000pps
PoE:
PoE Standards
- IEEE 802.3af IEEE 802.3at
PoE-Capable Ports
- Port 1 – 24 (Port 1 – 8 PoE can support up to 250m @ 10Mbps with Extend enabled)
Power Budget
- 250W (30 W max. per PoE port)
LEDs
- Power
- Link/Activity
Physical:
Weight
- 3kg
Dimensions
- 440 x 180 x 44 mm
Power
- 250W
Temperature
- Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity
- Operating: 0% to 95% RH non-condensing
- Storage: 0% to 95% RH non-condensing
Certifications:
Safety
- LVD
EMI/EMC
- CE
- FCC
