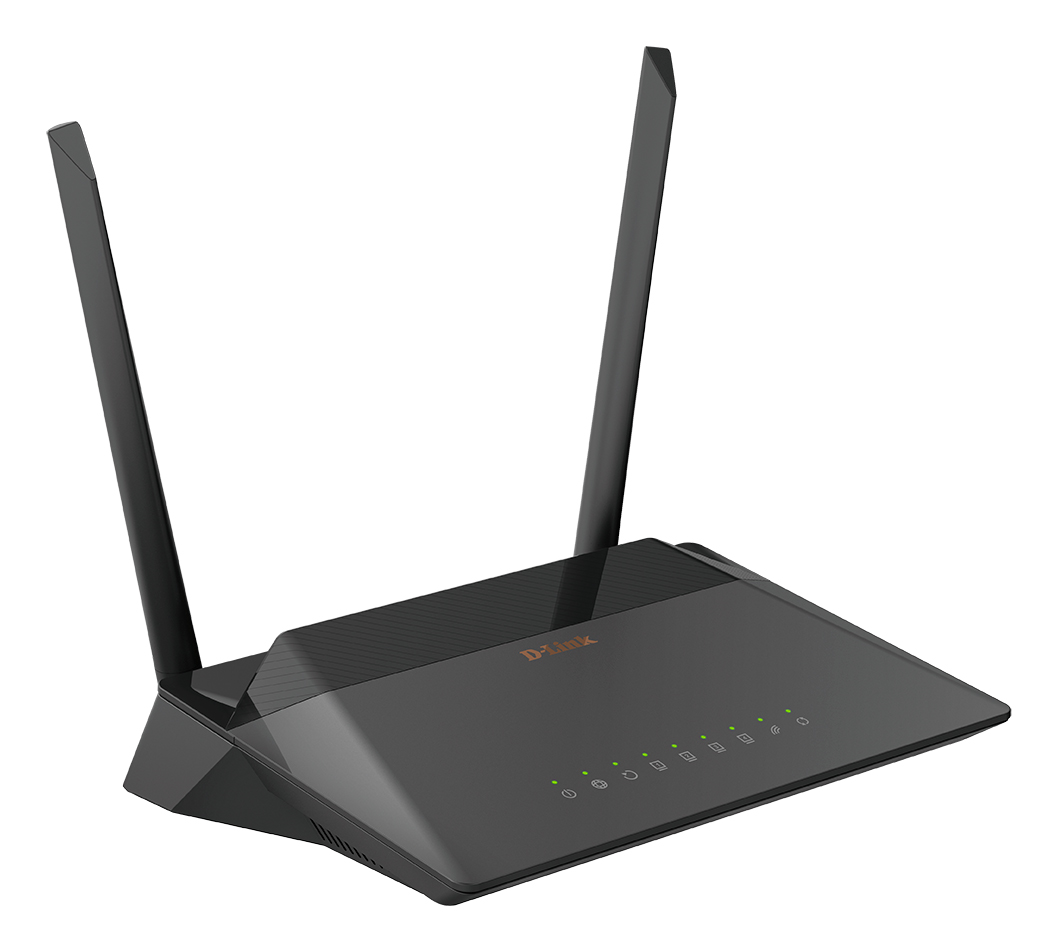

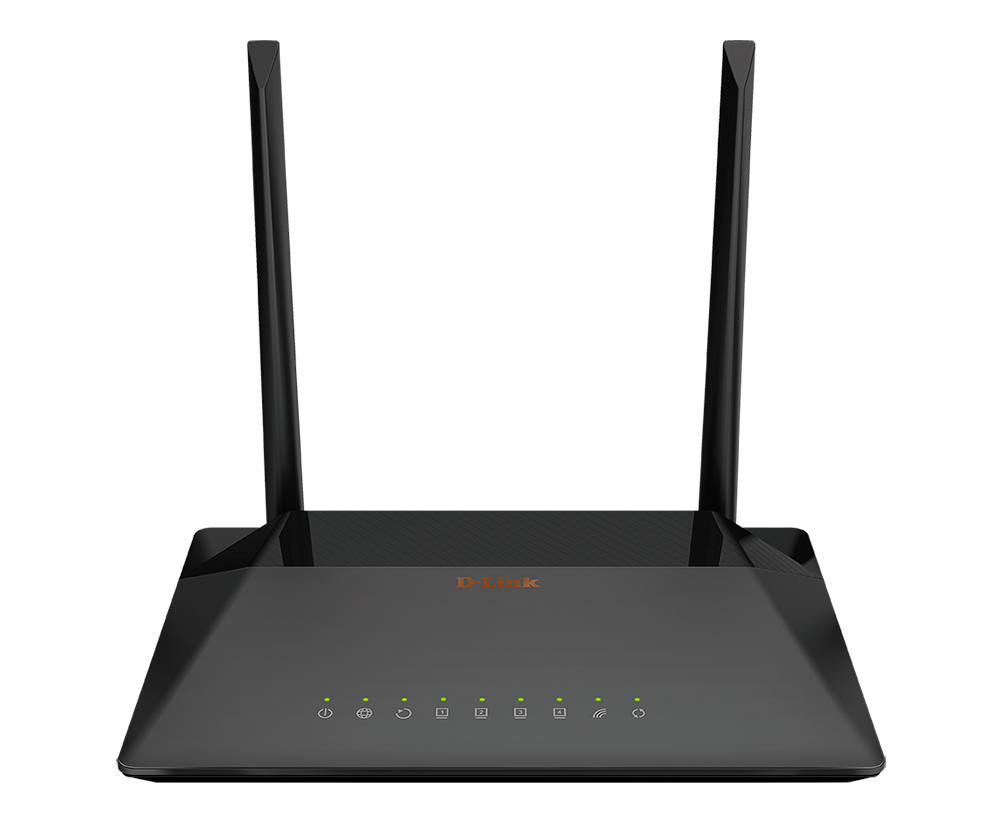

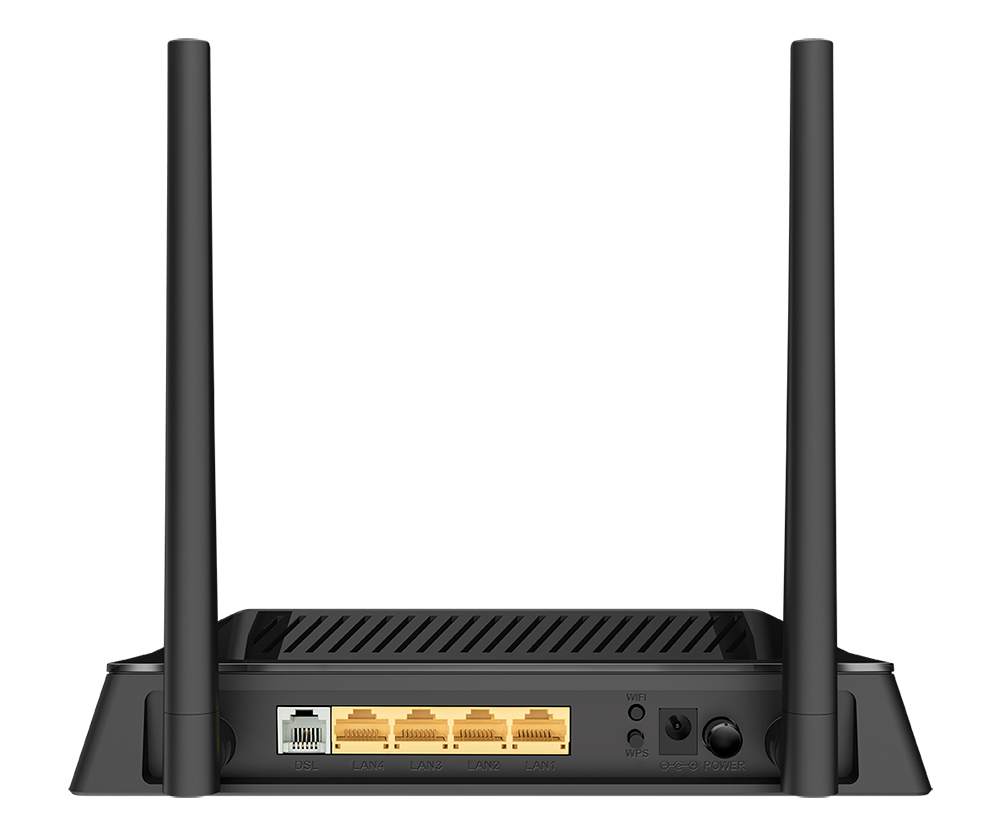

DSL-224 D-Link VDSL/ADSL combo 300Mbps wireless router with 4 x 10/100MBps port, 2 x 5dBi external antenna, Realtek chipset

EGP1,250.00

Close
Price Summary
  • EGP1,250.00
  • EGP1,250.00
  • EGP1,250.00
In Stock
Description

The DSL-224 Wireless N300 VDSL2 Modem Router is everything you need for high-speed Internet access throughout your entire home or office. It combines both a VDSL2/ADSL2+modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection with all of your wired and wireless devices. Its web-based configuration utility means you can easily set up and modify your network settings, for seamless connection with your ISP.

VDSL2/ADSL2+ Modem and Router in a Single Device
The DSL-224 combines the functionality of a high-speed VDSL2/ADSL2+ broadband modem and a wireless router in one device, eliminating the need for separate modem and wireless router devices. Connect to your VDSL2/ADSL2+ Internet Service Provider with download speeds of up to 100 Mbps, then immediately share the Internet connection with both wireless and wired devices. Additionally, the 4th LAN port on DSL-224 is multi-purpose, accepting both WAN and LAN Ethernet connections, giving you the freedom to access the Internet via VDSL2/ADSL2+, Cable, or other connection types.

Fast and Reliable Home Network
The Wireless N300 VDSL2 Modem Router is perfect for home or office environments; its highspeed wireless provides reliable connections to wireless devices, while Fast Ethernet LAN ports give you high-speed wired connection speeds. 802.11n wireless gives you the bandwidth to stream HD multimedia and feature-rich content across your home, so you can browse the Internet and stream digital media at speeds of up to 300 Mbps1.

Easy to Set Up
Get the DSL-224 up and running in no time using the intuitive web-based configuration utility.Simply connect the DSL-224 to your computer,launch the configuration wizard, and follow a few easy steps to get your home or office network up and running.



Product Highlights

Complete Internet Solution
A total solution that helps you connect, share, and enjoy your VDSL2 /ADSL2+ Internet connection using a single inconspicuous device

High-Speed Connectivity
Fast Ethernet ports and high-speed 802.11n wireless give you the bandwidth for online-gaming, video conferences, and HD multimedia streaming

Versatile Feature set
With the ability to function as a router, bridge, or repeater the DSL-224 can be easily integrated into any network.



Features

Connectivity
• Built-in VDSL2/ADSL2+/ADSL modem for connecting to your high-speed broadband
• Four Fast Ethernet LAN ports to connect wired devices for high-speed online activities
• Fast 802.11n wireless for reliable long-range wireless connections to devices throughout your home
• Two external 5dBi fixed antennas
• Can function as a wireless router, bridge, or repeater

Security Feature
• NAT firewall to control traffic and help prevent unwanted intrusions
• Wi-Fi Protected Setup (WPS) to quickly add devices to your network
• WPA/WPA2 encryption to help keep your traffic from prying eyes

Easy to Set Up
• Web browser-based setup and configuration
• Setup Wizard for quick setup



Technical Specifications

General
Device Interfaces
• 802.11n/g/b Wireless LAN
• Four 10/100Base-TX LAN ports2
• DSL

Standards
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.11n/g/b

Minimum System Requirements
• Windows 10/8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
• Microsoft Internet Explorer 6.0, Firefox 3.0, Chrome 20.0, Safari5.0
• Subscription with an Internet Service Provider (ISP)

Functionality
General
• Wireless
• EIRP on 2.4 GHz <100 mW

Security
• WPA & WPA2 (Wi-Fi Protected Access)
• WEP 64-bit and 128-bit
• Wi-Fi Protected Setup (WPS) – PIN/PBC

Advanced Features
• Quality of Service (QoS)
• UPnP support
• Stateful Packet Inspection (SPI)
• Network Address Translation (NAT)
• VPN pass-through/multi-session PPTP/L2TP/IPSec
• WDS (Wireless Distribution System)

Device Configuration Management
• Installation Wizard (Optional)
• Web-based GUI
• Code lock to prevent improper firmware upgrade
• Telnet
• Syslog monitoring

Physical

Dimensions
• 205 x 141 x 44 mm (8.07 x 5.55 x 1.73 inches)

Weight
• 253 grams (8.92 ounces)

Temperature
• Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 70 °C (-4 to 158 °F)

Humidity
• 5 % to 95 % non-condensing

Certifications
• CE • RoHS
