overview:

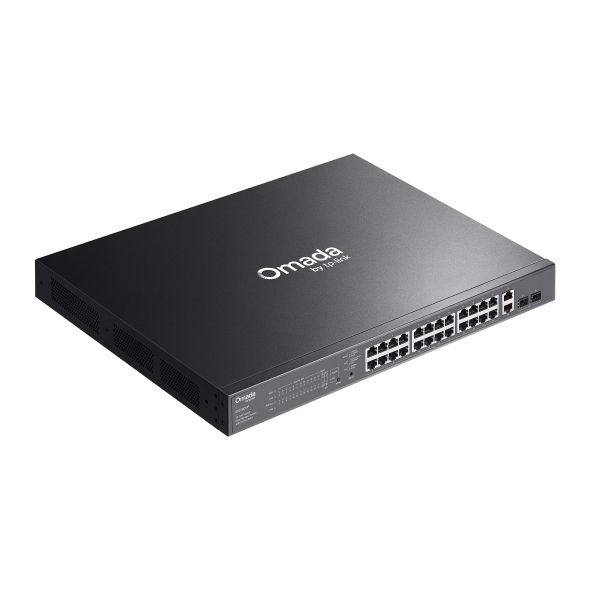

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other 802.3f PoE or 802.3t PoE+ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Deployment and Setup :
Easy On-Site Setup with Auto Device Identification and One-Click Adoption
Easy Remote Setup with Zero-Touch Provisioning (ZTP)
Visualized Management
Surveillance Networking:
Surveillance VLAN and QoS
Port Isolation
PoE Extend
Troubleshoot Remotely:
Cable Test for Precise Fault Detection
Remote Camera Reboot
PoE Auto Recovery
Multiple Application Scenarios:
Surveillance: Works with IP Cameras
Wi-Fi Coverage: Works with Access Points
Conference Calls : Works with IP Phones
Wired Connections: Works with Non-PoE Devices such as PCs and Printers
specifications:
HARDWARE FEATURES

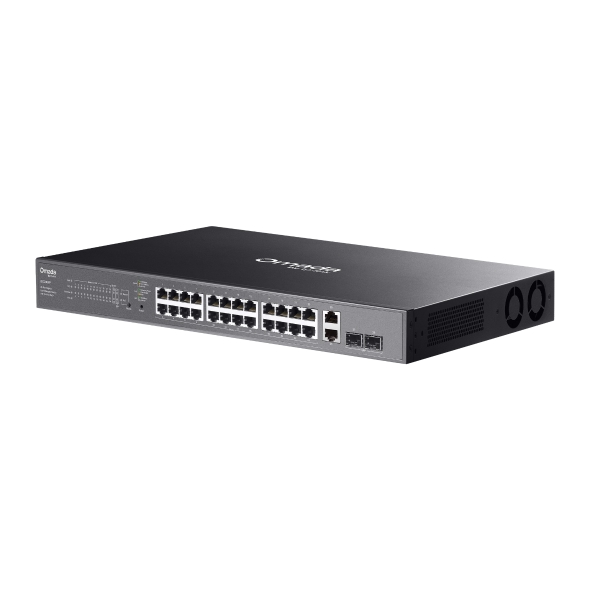

Interface:
• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slots
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity: 2
Installation: Desktop/Rack Mounting
Physical Security Lock: √

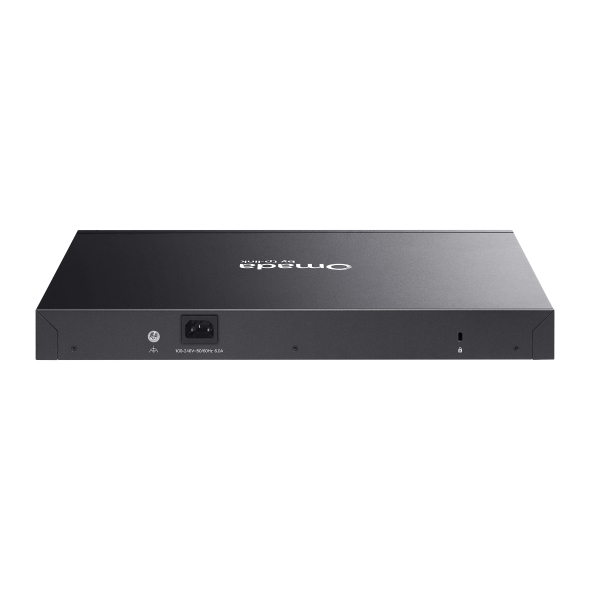

Power Supply: 100–240V AC, 50/60Hz
PoE Ports (RJ45):
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 384W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 820ft PoE transmission distance**
Jumbo Frame: 15 KB
Weight: Net 5.0 kg (11.0 lbs)
Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection: ±6 kV in common mode for Ethernet Ports
Max. Power Consumption: 454.8 W (110V/60Hz) (with 384 W PD connected)
PERFORMANCE
Packet Buffer Memory: 4 Mbit
Transmission Method: Store and Forward
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
MAC Address Table: 8K
SOFTWARE FEATURES
Quality of Service:
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control△
L2 Features:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method: Store-And-Forward
Management Features
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification: FCC, CE, RoHS
Package Content:
• ES228GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Environment:
• Operating Temperature: -5℃~45℃ (23℉~113℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
ESD/EMP Protection: Air: ±8 kV, Contact: ±4 kV
