The DES-1005P features green technology such as IEEE 802.3az Energy Efficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilization, reducing the cost of ownership during periods of inactivity. Link status detection powers down ports when no links are detected, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.

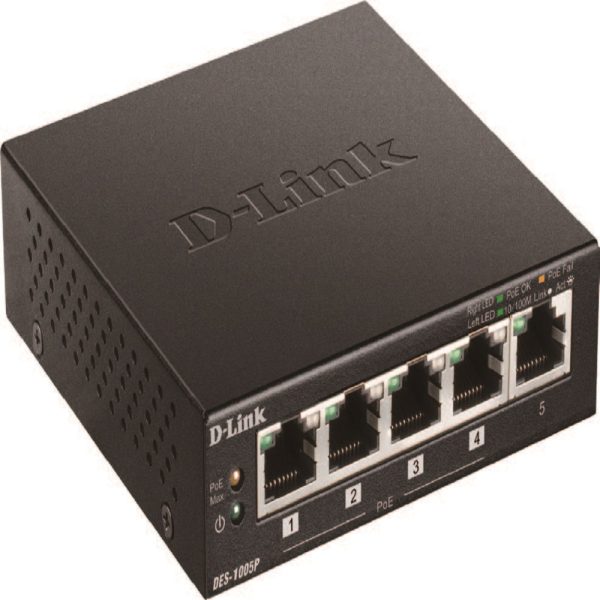

The compact design of the DES-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise sensitive areas such as workstations and meeting rooms.
High-Speed Networking
- Five 10/100 Mbps Ethernet ports.
- Full/half-duplex for Ethernet/Fast Ethernet.
Reliability
- IEEE 802.3x flow control.
- Store-and-forward switching scheme.
- RoHS-compliant.
Easy Setup
- Plug-and-play installation.
- Auto MDI/MDI-X crossover on all ports.
Stylish Design
- Compact lightweight chassis.
- Noise-free operation.
PoE Functionality
- Four PoE ports.
- IEEE 802.3af/at compliant.
- 60 W total power budget.
- Up to 30 W power output per PoE port.
Technical Specifications
General
Size
- Desktop.
Interfaces
- 5 10/100BASE-T ports.
Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper).
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper).
- ANSI/IEEE 802.3 NWay auto-negotiation.
- IEEE 802.3x flow control.
- IEEE 802.1p QoS.
Media Interface Exchange
- Auto MDI/MDI-X adjustment on all ports.
Performance
Switching Fabric
- 1 Gbps.
Transmission Method
- Store-and-forward.
Data Transfer Rates
- Fast Ethernet
• 100 Mbps (half-duplex).
• 200 Mbps (full-duplex). - Ethernet
• 10 Mbps (half-duplex).
• 20 Mbps (full-duplex).
Packet Filtering / Forwarding Rates
- 0.744 Mbps.
MAC Address Table
- 2K entries per device.
RAM Buffer
- 64 KB per device.
PoE
PoE Standards
- IEEE 802.3af.
- IEEE 802.3at.
PoE-Capable Ports
- Ports 1 to 4.
Power Budget
- 60 W (30 W max. per PoE port).
LEDs
- Power / PoE Max (per unit).
- Power / Status (per port).
- Activity / Link and Speed (per port).
Physical
Weight
- 0.26 kg (9.17 oz).
Dimensions
- 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in).
DC Input
- External 53.5 V / 1.2 A power adapter.
Power Consumption
- 63.26 W maximum (PoE on).
- 3.61 W maximum (PoE off).
- 0.68 W (standby).
Temperature
- Operating: 0 to 40 ˚C (32 to 104 ˚F).
- Storage: -10 to 70 ˚C (-40 to 158 ˚F).
Humidity
- Operating: 0% to 95% RH non-condensing.
- Storage: 0% to 95% RH non-condensing.
Certifications
Safety
- cUL.
- CB.
- LVD.
- BSMI.
EMI/EMC
- CE.
- BSMI.
- FCC.
- VCCI.
- RCM.
