• Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs
• Supports Gigabit Ethernet (10GbaseT) standard
• Operates at a bandwidth of 500MHz

This cable complies to the requirements of ANSI/TIA-568-C.2 90m permanent link

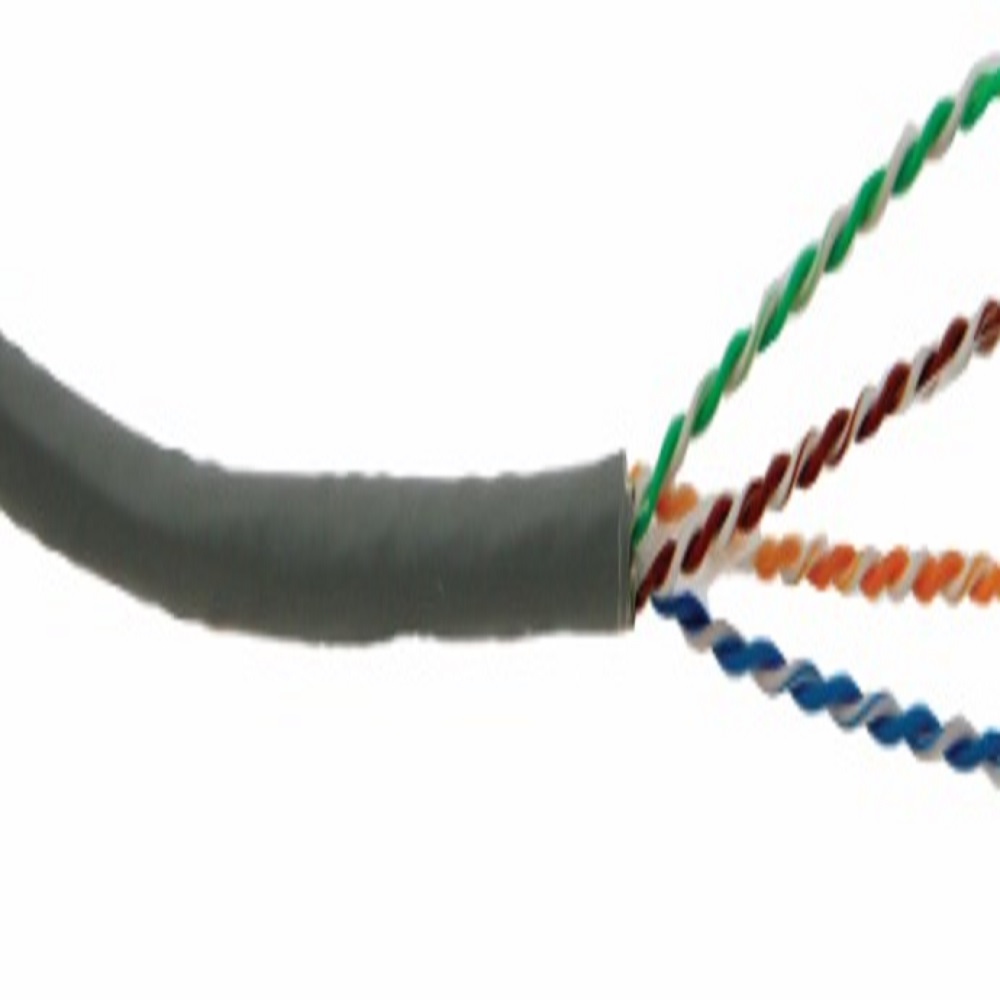

CONSTRUCTION

• Conductor: 23 AWG Solid bare Copper.
• Insulation: High Density Polyethylene.
• Pairs: 2 Insulated conductors twisted together.
• Separator: Polyolefin.
• Sheath: FR PVC – Corrugated Jacket.
• Cable Diameter: 6.5 + 0.3 mm.

ELECTRICAL CHARACTERISTICS

• Characteristic Impedance: 100 + 15 Ω
• Mutual Capacitance: <5.6nF/100m
• Resistance Unbalance: 5% Max
• Capacitance Unbalance: 330pF/100m
• Delay Skew: < 45nS
• Conductor Resistance:<9.381Ω/100m

COLOUR CODE
PAIR NO     COLOUR

• 1-2     White-Orange Stripe & Orange.
• 3-6     White-Green Stripe & Green.
• 4-5     White-Blue Stripe & Blue.
• 7-8     White-Brown Stripe & Brown.

MECHANICAL CHARACTERISTICS

• Bending Radius: < 4 x Cable Diameter at –20°C ± 1°.
• Pulling Force: 11.5 Kgs.
• Temperature Range Installation: 0° to +50°C.
• Temperature Range Operation: -20° to +70°C.
