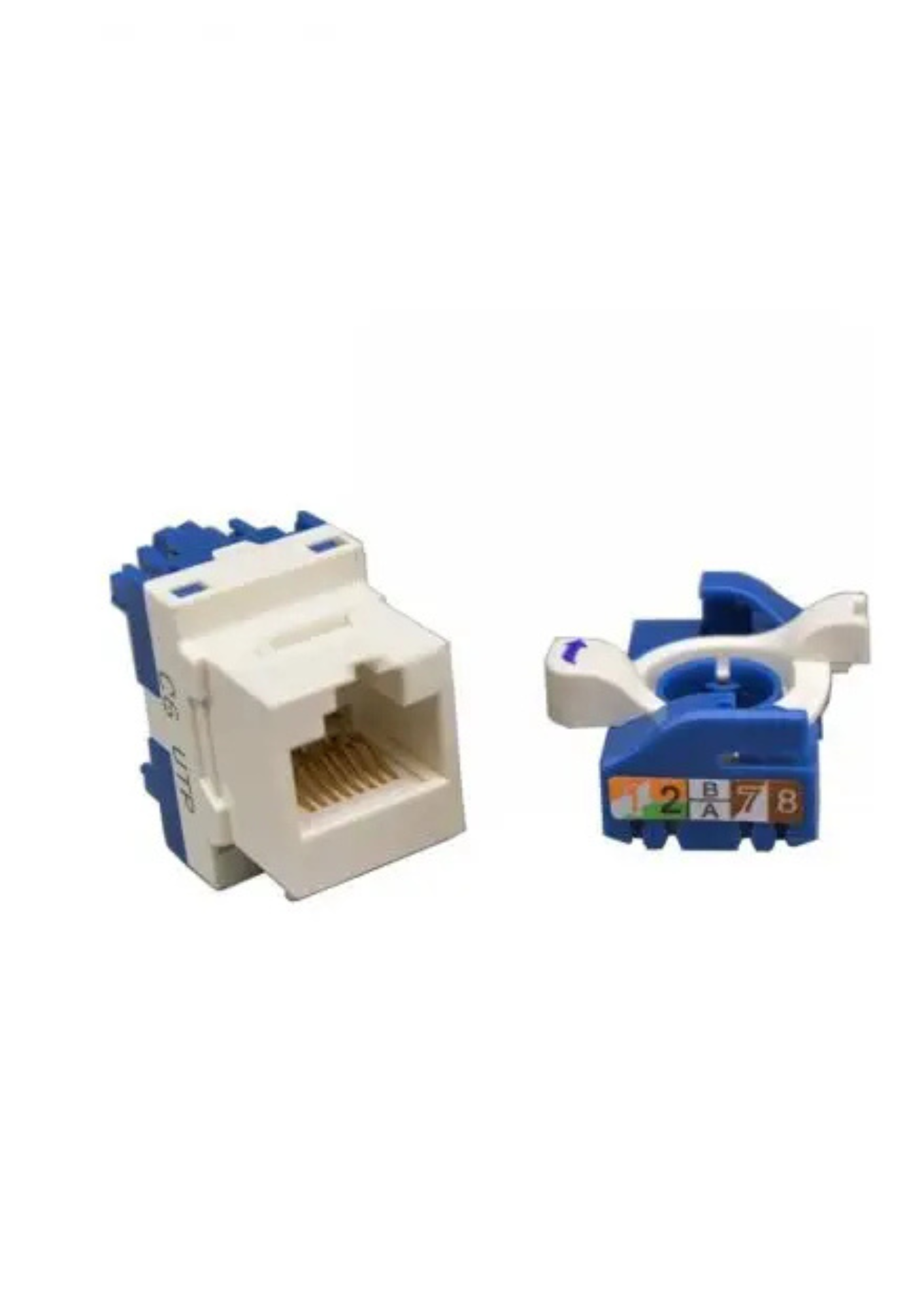

CAT.6 UTP Rotating Tool-less Connection Module
Performance:
• Real Category 6 hardware performance.
• Significantly exceeds Category 6/CLASS E link performance requirements.
Tool-less jack:
• Easy and quick to install.
• Fast reliable connection in record time; all 8 copper conductors are effortlessly terminated in a single operation.
• Quality of connection by design; independent of tool condition or operator skill, just listen for the click.
• Consistent results. The length of untwisted pairs and the length between the end of the conductor and the IDC contacts are always kept to a minimum, by design.
Reusable:
• If a wiring mistake is made there is no need to use a new jack.
• Just open and terminate.
• No delay waiting for another delivery.
Mechanical Data
Number of RJ45 jacks: 1
Number of signal contacts: 8/jack
Operating temperature range: -10°C to 60°C
Storage temperature range: -40°C to 70°C
Humidity: 95% (non-condensing)
Contact material: CuSn
Contact area plating: 1.2 µm gold over nickel
IDC* plating: Tin-plated
Cutting blade material: Stainless steel
Housing material: Polycarbonate (UL-94-V0)
Admissible wire Ø: 0.4 mm (AWG26) – 0.65 mm (AWG22)
Admissible strand Ø: AWG26/7 – AWG22/7
Admissible insulation Ø: 0.8 mm – 1.6 mm
Cable diameter: 10 mm maximum
Cable strain relief: Through cable tie
