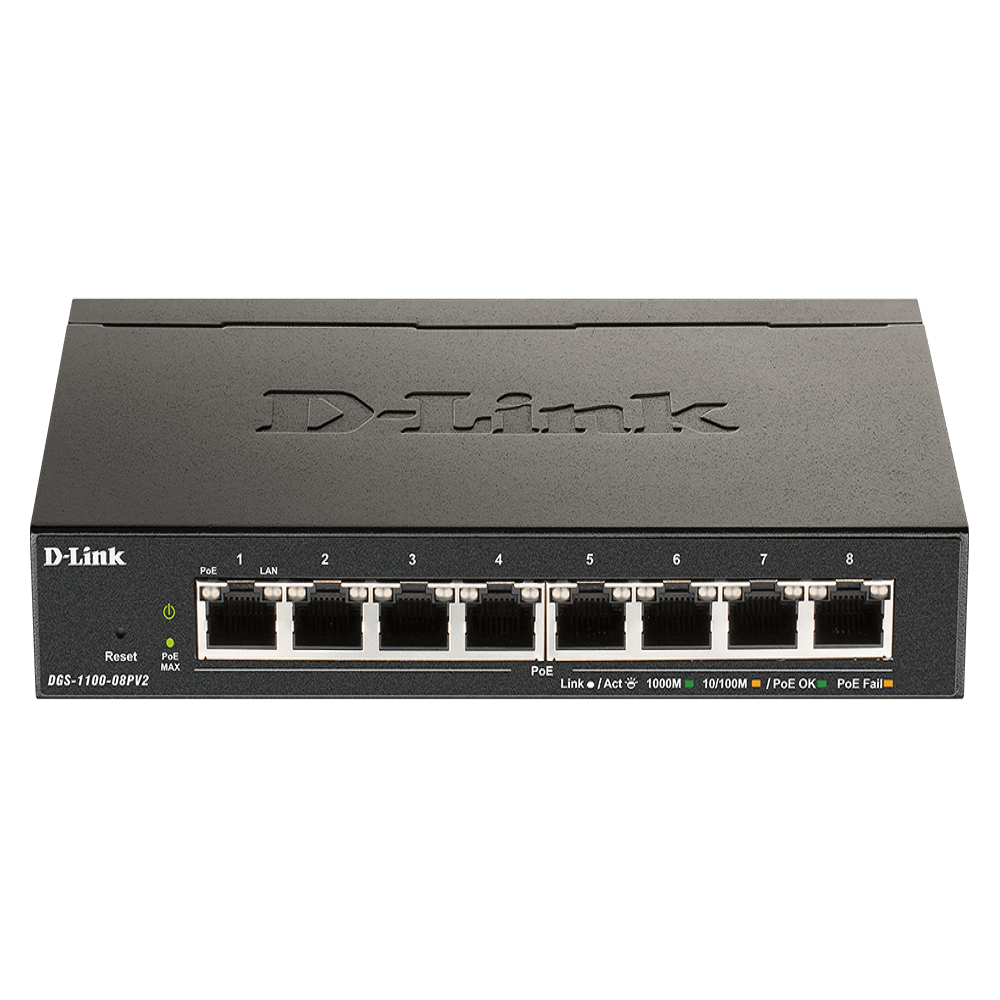

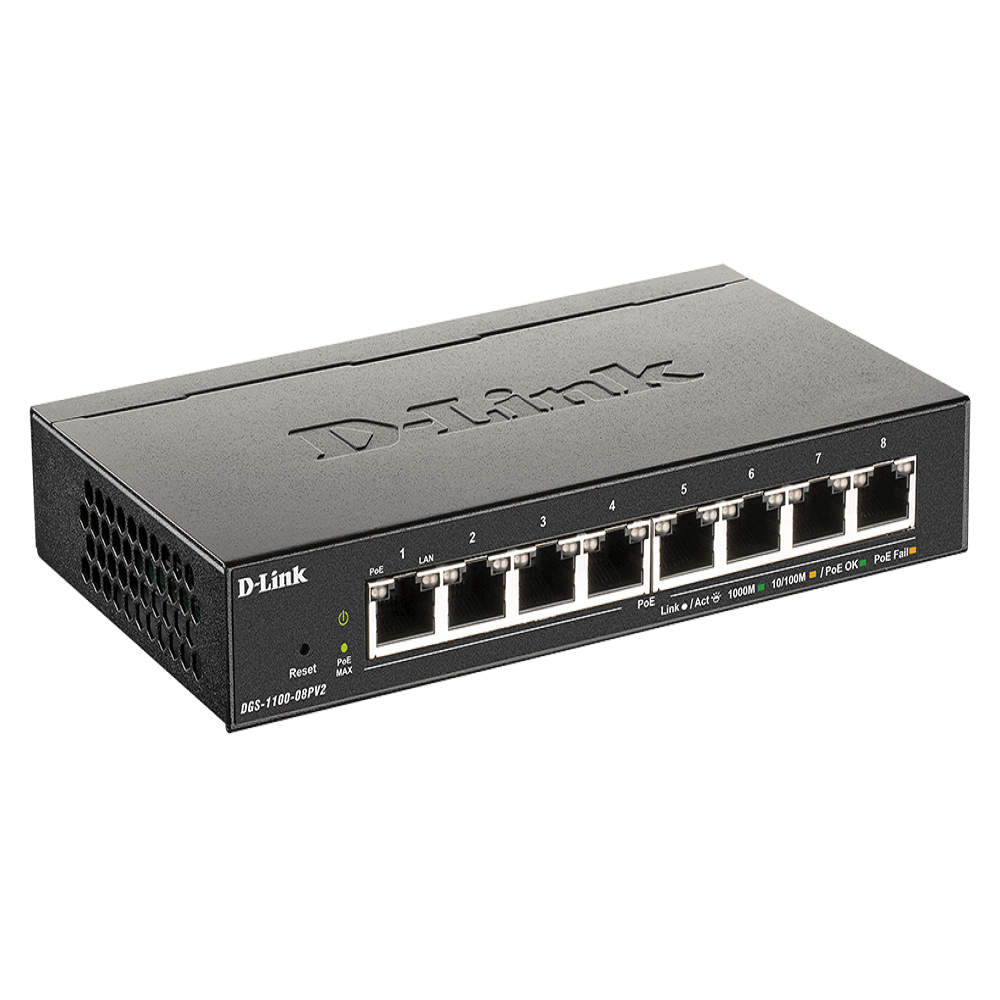

The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on additional cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.
Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.
Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the load of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
PoE Support
The DGS-1100 Series P Models provides Power over Ethernet (PoE) support, reducing deployment time for IP cameras, VoIP phones, and access points. Dedicated power adapters are no longer required, as the DGS-1100-08PV2 /24PV2/18PV2/10MPV2/10MPPV2/26MPV2/26MPPV2 models comply with IEEE 802.3af and 802.3at PoE standards and provide up to 30 watts per port. The DGS-1100-10MPPV2/26MPPV2 models support IEEE 802.3bt, providing up to 90 watts on selected ports for the latest high-powered Pan Tilt Zoom (PTZ) cameras. Additionally, the DGS-1100-05PD can be powered by a PoE switch or injector, allowing for more flexible installation in remote areas with no available power outlets.
Features
Physical
- Available in multiple configurations, with or without PoE and fiber support.
- Fanless design for silent operation.
Green Technology
- Link status detection.
- IEEE 802.3az Energy-Efficient Ethernet compliant.
- Time-based PoE (PoE models excluding DGS-1100-08PV2).
Advanced Features
- IGMP Snooping.
- Bandwidth Control.
- IEEE 802.1Q VLAN traffic segregation.
- Port-based VLAN.
- IEEE 802.1p Quality of Service.
- Surveillance VLAN.
- Voice VLAN.
Management Features
- Client-based utility or web-based GUI.
- Built-in SNMP MIB2.
Technical Specifications
General
Hardware Version
- A1.
Size
- Desktop.
Number of Ports
- 8 x 10/100/1000 Mbps (PoE).
Port Functions
- IEEE 802.3 for Ethernet.
- IEEE 802.3u for Fast Ethernet.
- IEEE 802.3ab for Gigabit Ethernet.
- IEEE 802.3af (for DGS-1100-05PD).
- IEEE 802.3at (for DGS-1100-08P).
- Auto-negotiation.
- Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps).
- Auto MDI/MDIX.
- IEEE 802.3x Flow Control supports full-duplex mode.
- IEEE 802.3az compliant.
Performance
Switching Capacity
- 16 Gbps.
Maximum Forwarding Rate
- 11.9 Mpps.
MAC Address Table Size
- 4K entries.
Packet Buffer
- 1.5 Mbits.
Flash Memory
- 2 Mbytes.
PoE
PoE Standard
- IEEE 802.3af/802.3at.
PoE Capable Ports
- Ports 1 to 8.
PoE Power Budget
- 64 W.
- 30W per PoE port max.
Power Consumption
Standby Mode
- 2.0 W.
Maximum Power Consumption
- 77.9 W (PoE on).
- 4.6 W (PoE off).
Physical
Power Input

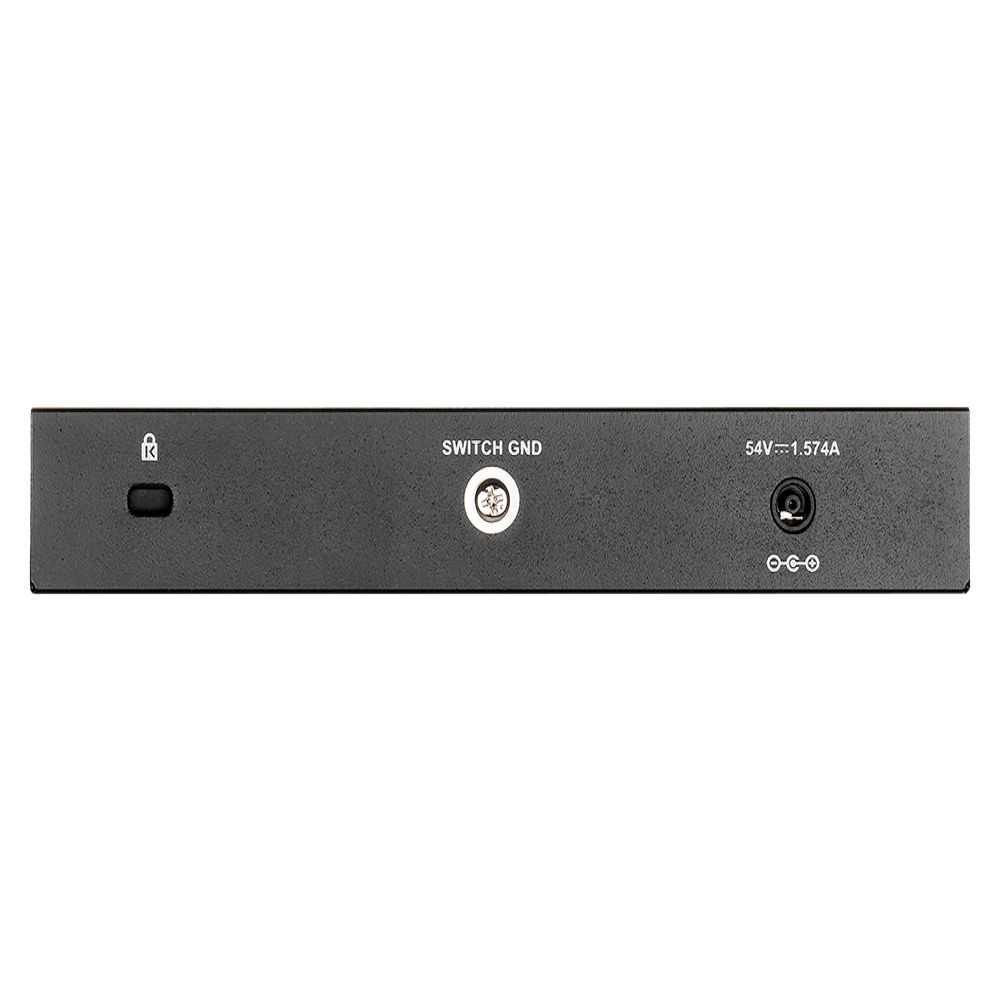

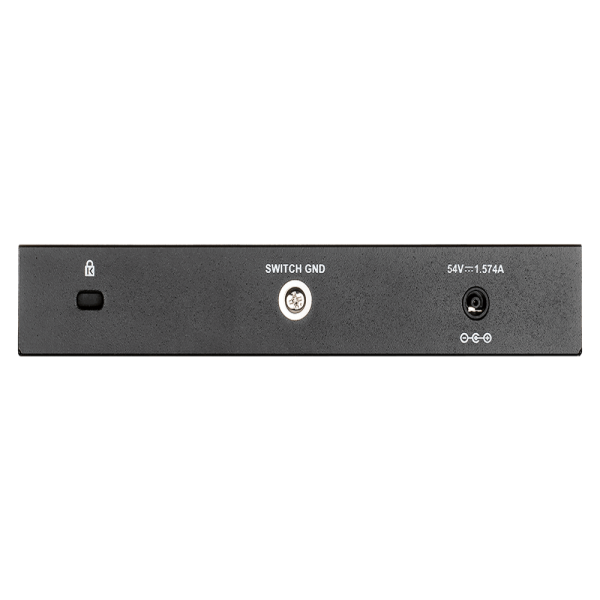

- 100 to 240 V AC, 50 to 60 Hz external power adapter.
MTBF
- 786,841 hours.
Acoustics
- 0 dB(A).
Heat Dissipation
- 265.85 BTU/hr.
Weight
- 0.43 kg (0.95 lbs).
Dimensions
- 171 x 97.8 x 28.6 mm
(6.7 x 3.9 x 1.1 inch).
Ventilation
- Fanless.
Operating Temperature
- 0 to 40 °C (32 to 104 °F).
Storage Temperature
- -40 to 70 °C (-40 to 158 °F).
Operating Humidity
- 0% to 90% RH, non-condensing.
Storage Humidity
- 0% to 95% RH, non-condensing.
EMI
- FCC Class B, CE Class B, VCCI Class B, BSMI.
Safety
- cUL, CE LVD, CB, BSMI.
