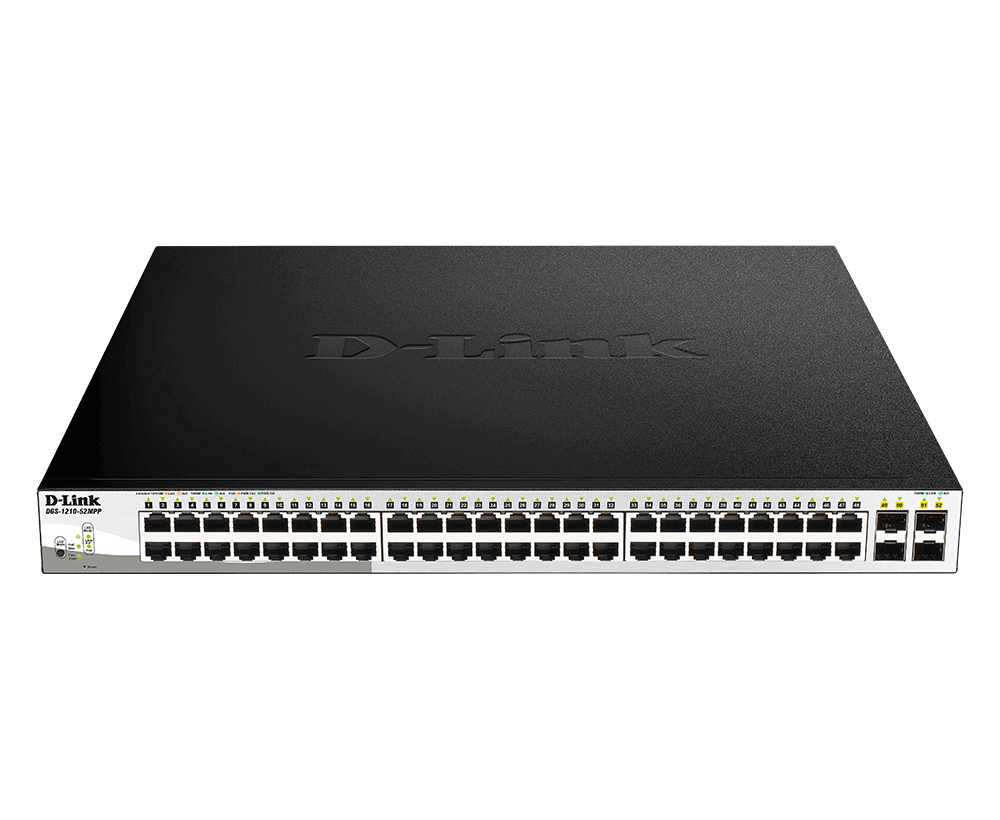

DGS-1210-52MPP D-Link 52-Port Gigabit Smart Managed PoE Switch


Price Summary
  • EGP44,999.00
  • EGP44,999.00
  • EGP44,999.00
In Stock

Cost-efficient and flexible solution for expanding any business network.

  • 48 x 10/100/1000BASE-T PoE ports
  • 4 x Gigabit SFP ports
  • Advanced L2 switching and security features
  • L2+ Static Routing
  • Optional “standard mode” or “surveillance mode” management user interface
  • 740 W PoE budget


Green Technology
• Link status detection
• Port shut-off
• System hibernation
• Time-based PoE (PoE models only)

Security Features
• Access Control Lists (ACLs)
• D-Link Safeguard Engine protects the CPU from broadcast/multicast/unicast flooding
• Port Security supports up to 64 MAC addresses per port
• ARP Spoofing Prevention
• Smart Binding

Intuitive Management
• D-Link Network Assistant (DNA) utility or multilingual Web UI
• Built-in SNMP MIB for remote NMS (D-View 7.0)
• Compact Command Line Interface (CLI) through Telnet

Advanced Features
• Static route
• Surveillance Mode
• Auto Voice VLAN
• Dual software images
• Dual configuration files

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

Seamless Integration
The DGS-1210 Series includes a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps combo ports, and 100/1000 Mbps SFP ports. The DGS-1210-10, DGS-1210-26, DGS-1210-10P, and DGS 1210-10MP models feature 2 100/1000 Mbps SFP ports, while all other DGS 1210 Series models feature 4 100/1000 Mbps combo ports, allowing you to choose the most suitable media type for your requirements. All DGS-1210 Series PoE switches include support for IEEE 802.3af/at and higher power budgets, allowing more PoE devices to be powered by the switch and for devices to be installed in remote locations without immediate access to power outlets.

Advanced Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The DGS-1210 Series also supports advanced features such as static routes, which allow network administrators to divide the network into VLANs, increasing
network efficiency. Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops. The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.

Automatic Configuration
The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Secure Your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by malicious attacks. The DGS-1210 Series supports 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210 Series also features Address Resolution Protocol (ARP) spoofing prevention, which provides protection from attacks on the network that could allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fakeARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

Versatile Management
The DGS-1210 Series comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant utility furthermore allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them on-screen for instant access. With this utility, users do not need to change the IP address of their PC. This allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DGS-1210 Series also supports D-View 7.0 and Command Line Interface (CLI) through Telnet. D-View 7.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Technical Specifications

1000Base-T PoE Interface

  • 48 port

1000M SFP Interface

  • 4 port


  • Yes

10/100/1000BASE-T PoE ports

  • 48 port

SFP ports

  • 4 port

Switch Capacity

  • 104 Gbps

Max. Packet Forwarding Rate

  • 77.4 Mpps

Store & Forwarding Forwading

  • Yes


  • 440mm x 430 mm x 44mm


  • 6.52 kg

Operation Temperature

  • -5 – 50°C

Storage Temperature

  • -20-70°C

Operating Altitude

  • 1500 meters

Maximum Power Consumption

  • 967.5 W (PoE on) <br> 53.1 W (PoE off)

Standby Power Consumption

  • 34.8W/100V / 33.1 W/240V

Storage Humidity

  • 0% ~ 95% RH

Operation Humidity

  • 0% – 95% RH

Maximum Heat Dissipation

  • 3,301.08 BTU/hr


  • 350,728 hours

Power Input

  • 100-240 VAC

CPU Speed

  • 400MHz


  • 256MB

Flash Memory Size

  • 32MB

Packet Buffer Size

  • 3.0MB


  • Yes

Comply with RoHS 6

  • Yes

Power Saving By Link Status

  • Yes

Power Saving By LED Shut-Off

  • Yes

Power Saving By Port Shut-Off

  • Yes

Power Saving By System Hibernation

  • Yes

Time-based PoE

  • Yes

Maximum PoE Budge

  • 740 Watt

PoE Budget

  • 740 Watt

MAC Address Table Size

  • 16K

802.3x Flow Control

  • Yes

Head-of-line (HOL) Blocking Prevention

  • Yes

802.1D Spanning Tree (STP)

  • Yes

802.1w Rapid Spanning Tree (RSTP)

  • Yes

802.1s Multiple Spanning Tree (MSTP)

  • Yes

Root Restriction

  • Yes

802.3ad Link Aggregation

  • Yes

Link Aggregation Group Per Device

  • 26

Max Port Per Link Aggregation Group

  • 8

IGMP Snooping

  • Yes

Max IGMP Snooping Groups

  • 256

IGMP Snooping Fast Leave

  • Yes

MLD Snooping

  • Yes

MLD Snooping Groups

  • Yes

MLD Snooping Fast Leave

  • Yes

Jumbo Frame

  • 9,216 Bytes

Loopback Detection (LBD)

  • Yes

Port Mirroring

  • Yes

802.1Q VLAN

  • Yes

VLAN Groups

  • Yes

Port-based VLAN

  • Yes

Voice VLAN

  • Yes

Auto Surveillance VLAN

  • Yes

Asymmetric VLAN

  • Yes

IPv6 Neighbor Discovery (ND)

  • Yes

ND Entries

  • 512

Static Route

Number of Queue

Class of Service (CoS)

Weighted Round Robin (WRR)

Strict Priority Queue (SPQ)

Max Access Control List (ACL) Entries

MAC Access List

IP Access List

IPv6 Access List

Port-based Bandwidth Control



Port Security

Broadcast/Multicast/Unicast Storm Control

Traffic Segmentation

Smart IP-MAC-Port Binding (Smart IMPB)

D-Link Safeguard Engine

DHCP Server Screening

ARP Spoofing Prevention

DoS Attack Prevention


Port based 802.1X Authentication

Authentication for Management Access


Trusted Host

Cable Diagnostics

Simple Network Time Protocol (SNTP)

Web-based GUI

Telnet Server



TFTP Client




D-Link Discover Protocol (DDP)

DHCP/BootP Client

DHCP relay

Dual Images

Debug Command

  • Yes
