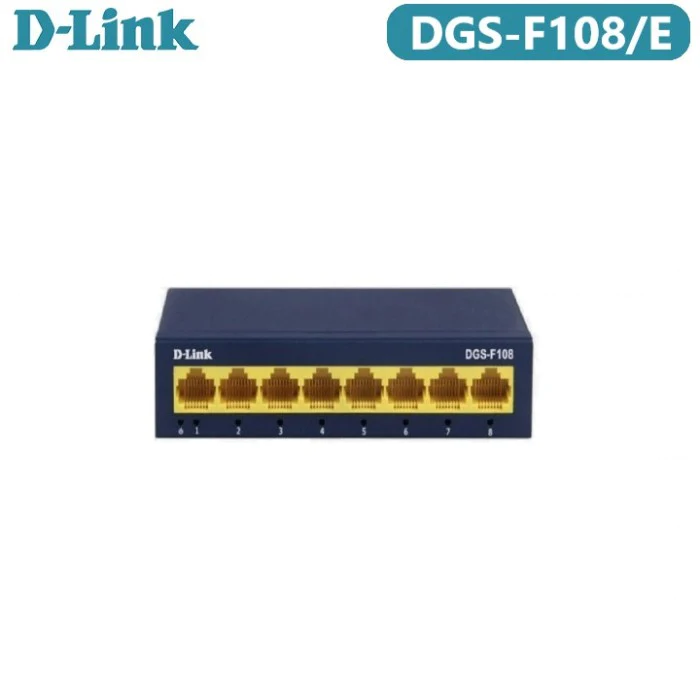

DGS-F108 D-Link 8-port 10/100/1000Base-T Unmanaged Metal Desktop Gigabit Switch

In Stock
  • 8 Ports Fast Ethernet Switch
  • 10/100/1000 Mbps RJ45 Ports
  • D-Link Unmanaged

DGS-F108 is 8 port Gigabit unmanaged network switch, with 8 port Gigabit self-adaptive port, all ports support the full speed forward reach 1000Mbps each port, Provides the high reliability for the HD video monitoring, simple, economy, energy saving, high-performance, it is the best product for cybercafe, company, school and intelligence community with the video monitoring application. The Quality of Service (QoS) feature helps to improve performance when gaming or using Voice over IP (VoIP) so your connection runs smoothly. It supports IGMP snooping to optimize multicast data streams for bandwidth intense applications like IPTV.

Technical Specifications:

Network Port

  • 8 10/100/1000Mbps RJ45 port

Transmission Rate

  • 10 or100Mbps half duplex,100/1000Mbps full duplex
  • Network port: 100BASE-Tor 1000BASE-TX Ethernet RJ-45port


  • Bandwidth: 16Gbps(no block)
  • MAC address capacity: 4K
  • MAC Address Learning: Automatic update
  • Frames filter and transfer rate
  • 10Mport maximum 14,880pps
  • 100Mport maximum 148,809pps
  • 1000Mport maximum 148,8009pps

Network Protocol and Standard

  • IEEE802.3 Ethernet standard
  • IEEE802.3u Fast Ethernet standard
  • IEEE802.3ab Gigabit Ethernet standards
  • IEEE802.3x Full-duplex Ethernet data link layers

LED’s Indicator

  • Power
  • Each port: LINK/ACT


  • Input power: 100-240V,50/60Hz
  • Output power: 12VDC,1A

Dimensions (LxWxH)

  • 125×75×27mm


  • 0.45kg


  • Operating Temperature: 0°~40°C(32°~104°F)
  • Storage Temperature: -40°C~70°C(-104°~158°F)
  • Operating Humidity: 10%~90%(Non-condensing)
  • Storage Humidity: 5%~90%(Non-condensing)
