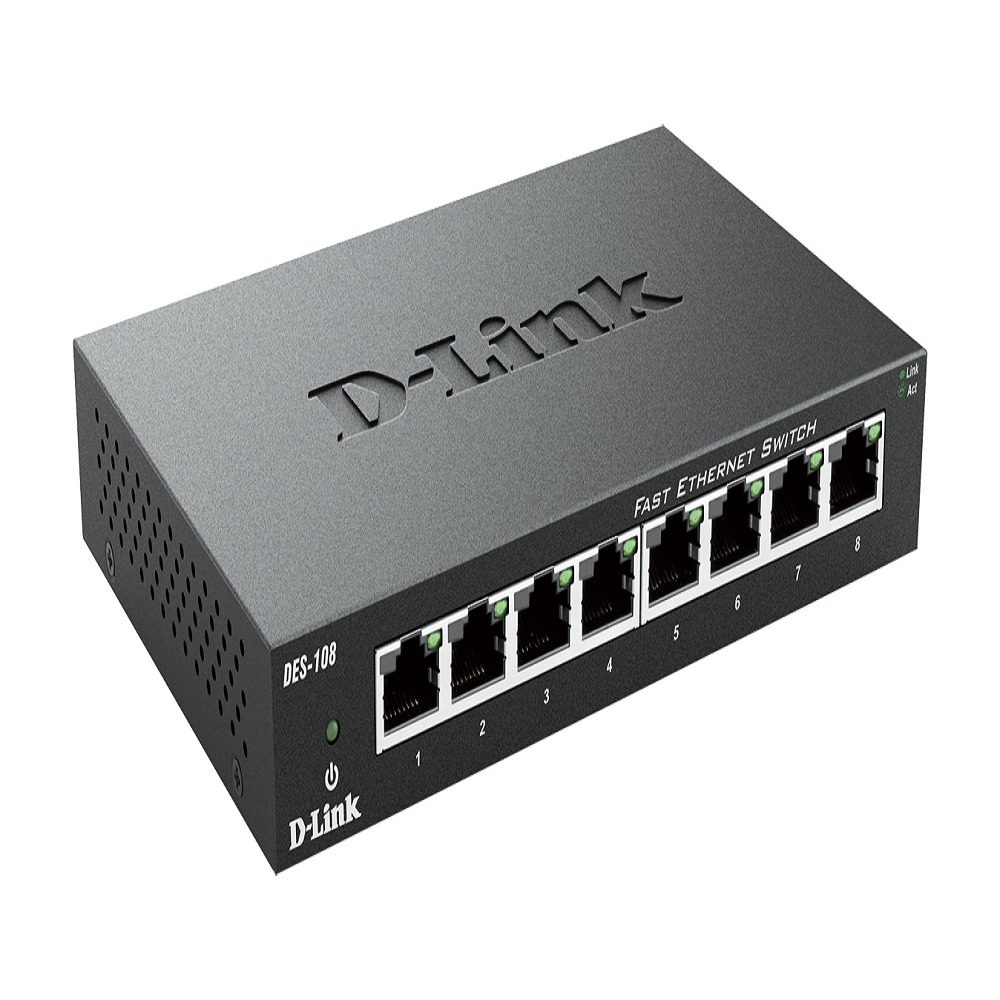

This 8-Port 10/100BASE-TX Fast Ethernet Switch is designed for the departmental and enterprise connection. Powerful and versatile, it eliminates network bottlenecks while giving users the capability to fine-tune performance. The DES-108 has a special front access design for Ethernet ports/LEDs to for easier control of network status. Also, the metal case design keeps cool, allowing for superior performance. Additionally, the DES-108 complies with IEEE 802.3az Energy-Efficient Ethernet (EEE) standards, making it energy efficient without losing connectivity or functionality.
Integrated Network
The DES-108 8-port 10/100 Mbps Switch uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Simplified Installation

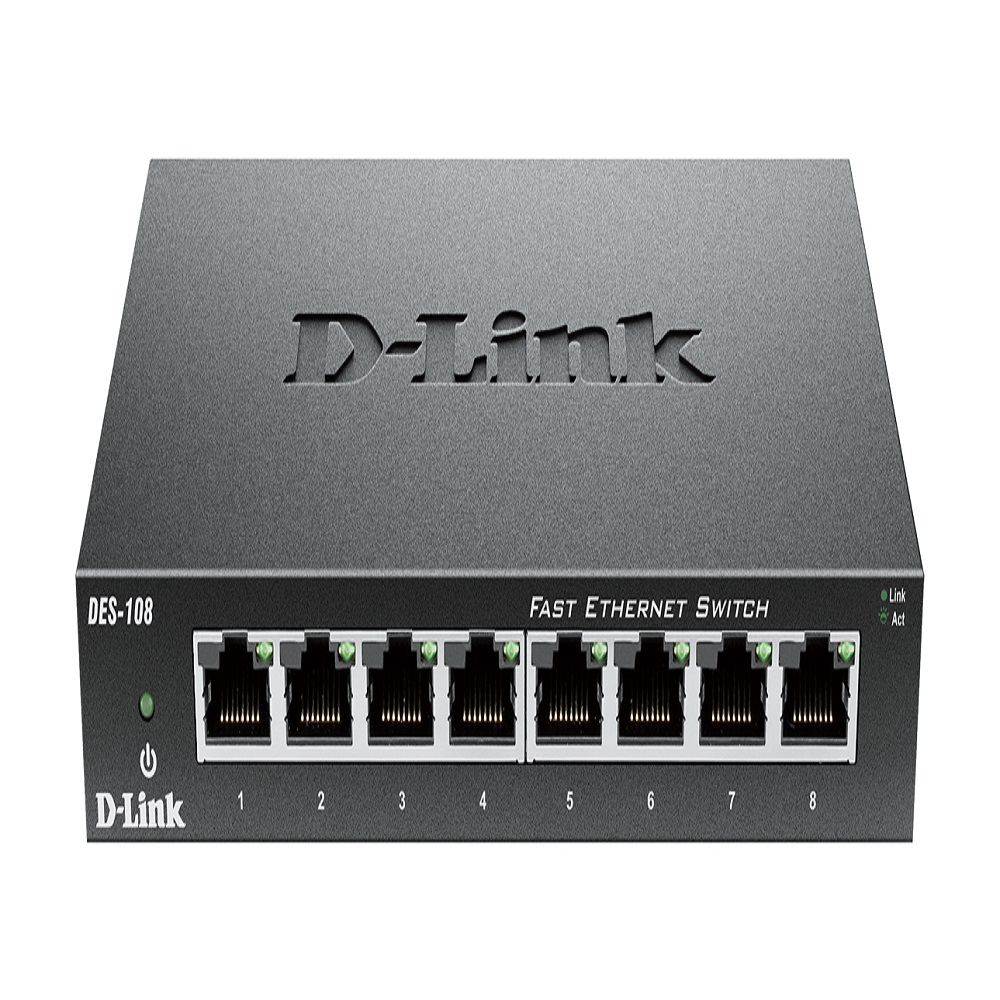

All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Think Green
The DES108 is a plug-and-play networking switch that uses D-Link Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
Features
Fast Connectivity
- Fast Ethernet LAN ports for high-speed wired connections.
- Plug-and-play installation for convenience.
Green Ethernet Features
- Reduces power to a port when no link to that port is detected.
- Adjust power to a port by detecting the length of the connected Ethernet cable.
Eco-friendly Design
- Compliant with Energy Star Level V, CEC, and MEPS regulations.
- Compliant with RoHS standards.
Technical Specifications:
General:
Device Interfaces
- Eight 10/100 Mbps LAN ports
Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Advanced Features
- Green Ethernet
- 1/1.6 Gbps switching fabric
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/fast Ethernet speeds
- Supports 2,048-Byte jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Store and-forward switching method
- Auto-negotiation for each port
- RoHS compliant.
- ErP compliant
- EEE compliant
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3az EEE
- IEEE 802.3x flow control
- IEEE 802.1p QoS (4 queues, strict mode)
Protocol
- CSMA/CD
Data Transfer Rates
- Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex) - Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Transmission Method
- Store-and-forward
MAC Address Table
- 2 K
MAC Address Learning
- Automatic update
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
RAM Buffer
- 768KB per device
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
Dimensions
- 162 x 102 x 28mm (3.54 x 2.83 x 1.06 inches)
Weight
- 410 grams (0.90 lbs)
Power
- 5V/0.55A level V

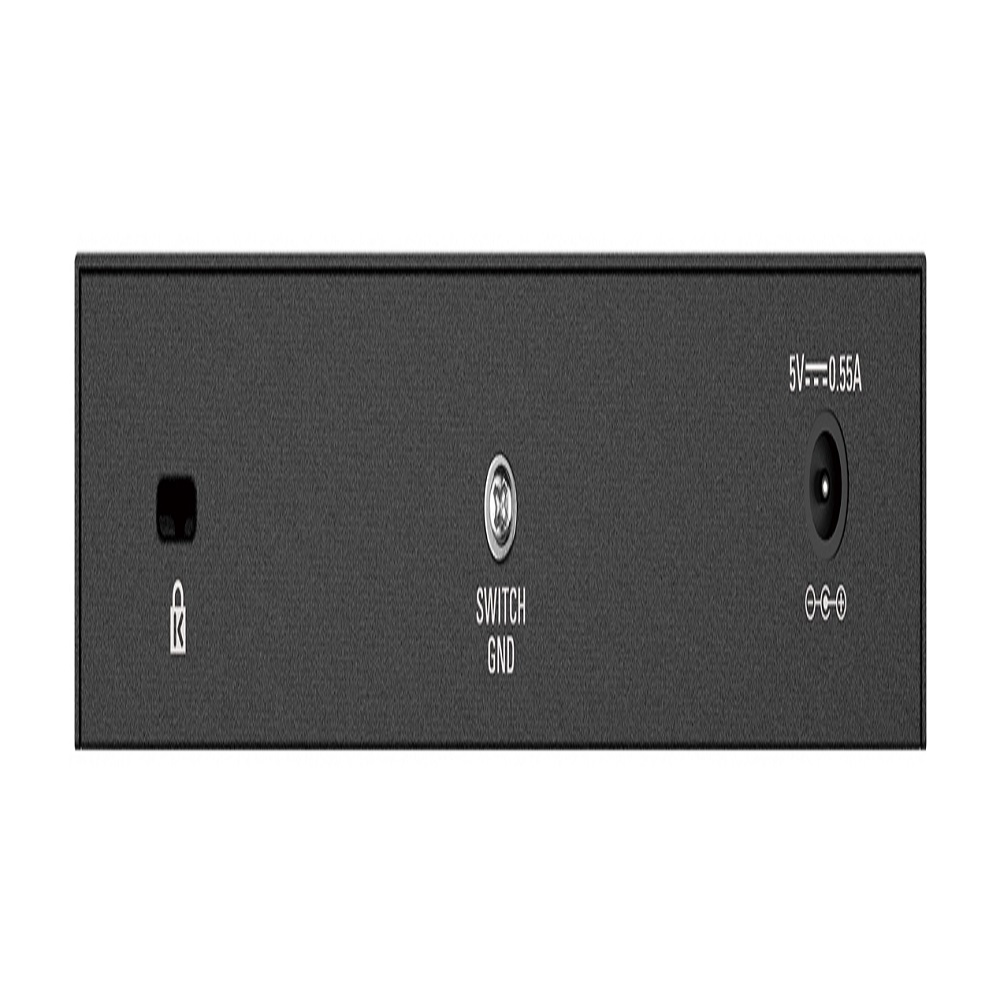

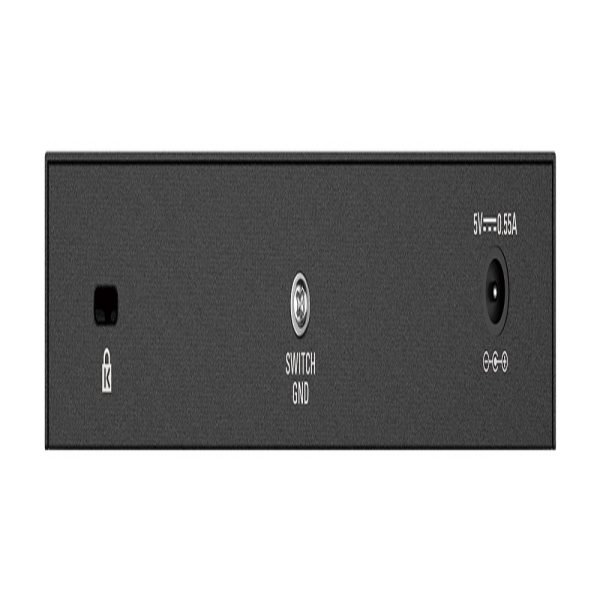

- DC jack: Located at rear panel
Power Consumption
- Power On (Standby):
• DC input: 0.25 Watts
• AC input: 0.3 Watts - Maximum:
• DC input: 1.3 Watts
• AC input: 2.4 Watts
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -10 to 70 °C (14 to 158 °F)
Humidity
- Operating: 10% to 90% non-condensing
- Storage: 5% to 90% non-condensing
MTBF
- 831,209 hours
Heat Dissipation
- Power On (Standby)
• AC Input: 1.0236 BTU/h - Maximum:
• AC Input: 4.4356 BTU/h
Certifications
- FCC Class B
- CE Class B
- C-Tick
- CB
- ICES-003 Class B
- VCCI Class B
- cUL
