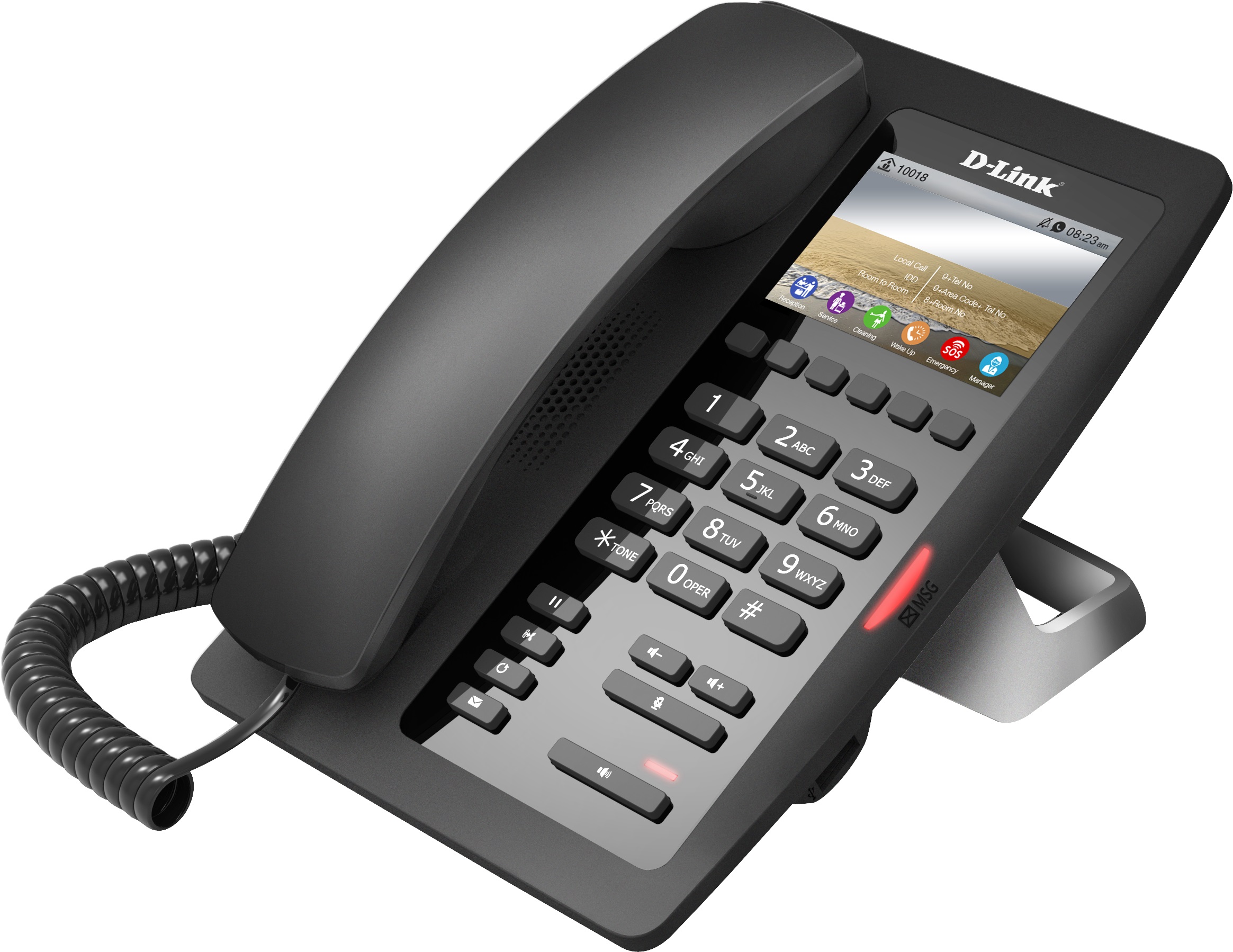

DPH-200SE/F1 D-Link Hotel IP phone 1 * 10/100MbpsPoE support,1 x 10/100Mbps LAN port, VLAN support, 1 SIP account, 3.5inch  color  LCD display , USB port for Mobile Charging (without power adaptor)

EGP4,900.00

Close
Price Summary
  • EGP4,900.00
  • EGP4,900.00
  • EGP4,900.00
Hurry, Only 2 left.
Highlights:

نظرا للتغير المستمر في سعر العملة يرجى مراجعة الشركة  أولا في سعر الشراء قبل اتمام عملية الشراء على رقم واتساب 01224077567



Description

DPH-200SE is the IP phone designed for Hotel . its stylish, contemporary appearance, excellent voice quality , along with matching integrated communication platforms can become a new generation of hotel intelligent terminal equipment.

PHONE FEATURES

  • VxWorks OS
  • Support SIP2.0 (RFC3261) and correlative RFCs SIP support 1 SIP servers, and backup SIP proxy servers
  • Supports SIP UDP / TCP/ TLS
  • SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer.

KEY FEATURES

  • 6 Soft keys programmable
  • Multi languages displayed

AUDIO

  • HD voice: HD handset
  • Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722, G.726-32
  • DTMF: in-band, RFC2833 and SIP INFO
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

ADVANCED FEATURES

  • Call transfer (unattended/ attended/ semi-attended)
  • Call holding
  • Call waiting
  • Redial
  • Call completion
  • MWI
  • Flexible dial plan
  • Barring function for outgoing calls
  • Do not disturb
  • Auto answer
  • CLIR (rejects anonymous calls)
  • CLIP (to make an anonymous call) Dial without registration
  • Call logs with missed calls/ incoming calls/ outgoing
  • DTMF hidden
  • Action URL/ active URI
  • Multicast
  • Web dial
  • Emergency call

NETWORK / SECURITY FEATURES

  • WAN / LAN: 10/100M Ethernet ports (Bridge mode)
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP (Basic Unencrypted) / OpenVPN
  • VLAN
  • QoS

DEPLOYMENT & MAINTENANCE

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP
  • OPT66/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Firmware Upgrade
  • Syslog

PHYSICAL SPECIFICATIONS

  • LCD: 3.5inch (480×320) color screen
  • Adapter Input: AC100-240V
  • Adapter Output: DC 5V/1A
  • WAN Port -10/100 BASE-T RJ-45 for LAN
  • LAN Port-10/100 BASE-T RJ-45 for PC
  • Handset: RJ9
  • Power consumption: IDLE: 2.5W Active: 2.8W
  • Operation Temperature: 0〜40 ℃
  • Relative Humidity: 10〜65%
  • Main Chipset: Broadcom
  • SDRAM: 16MB
  • FLASH: 8MB
  • Dimension: 213x170x130 mm
