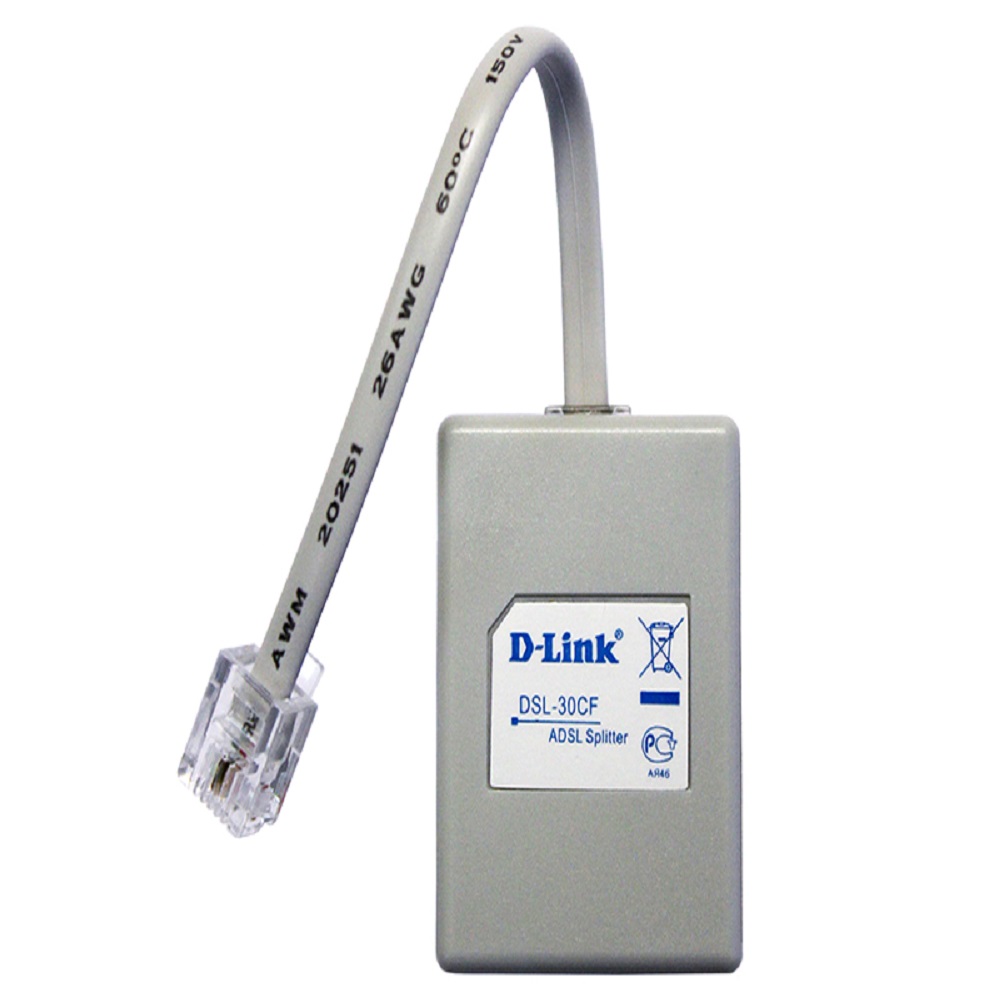

The DSL-30CF/RS splitter is intended for dividing voice signal frequencies and frequencies used by xDSL equipment. The DSL-30CF/RS is placed at the phone line input (before phone connection). Thus, using the splitter excludes interference of modem and phone signals, providing concurrent operation of the devices. ADSL, ADSL2, ADSL2+ Annex A/L/M standards are supported.
General features
Interfaces

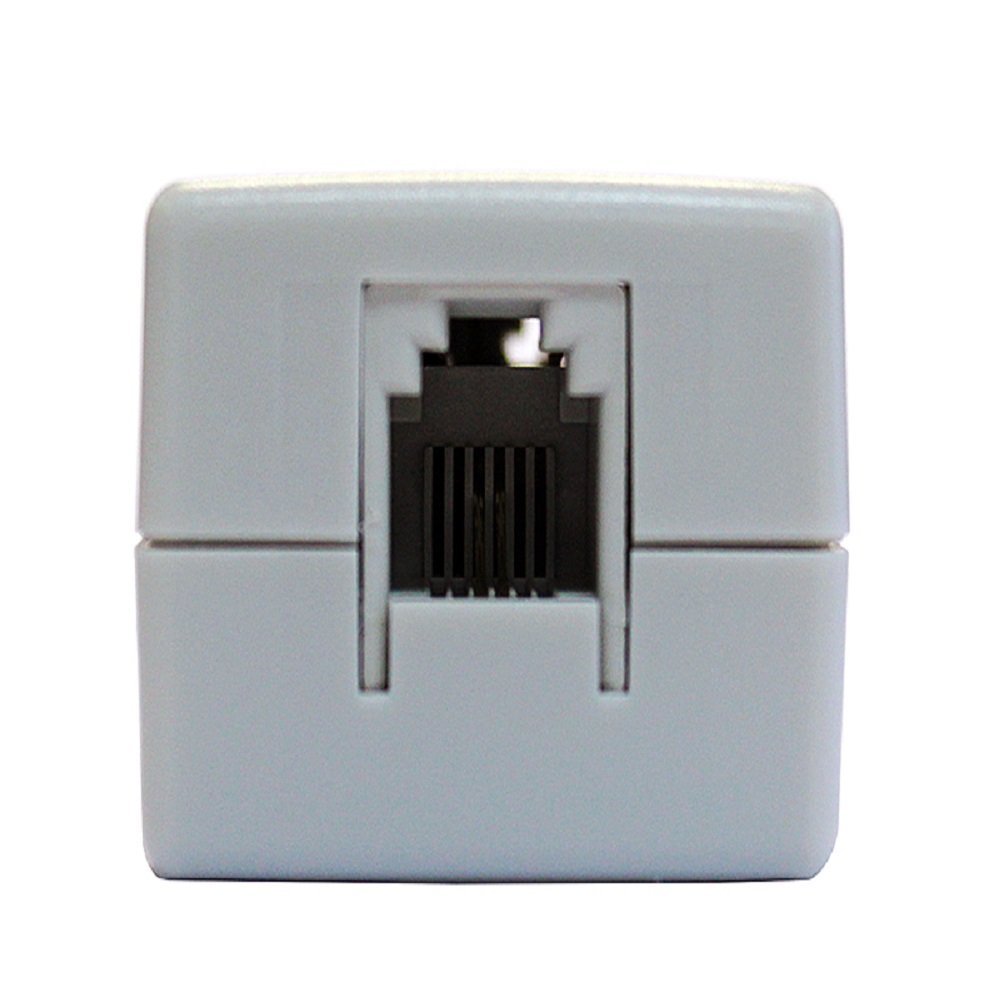

- One RJ-11 connector for a phone line.

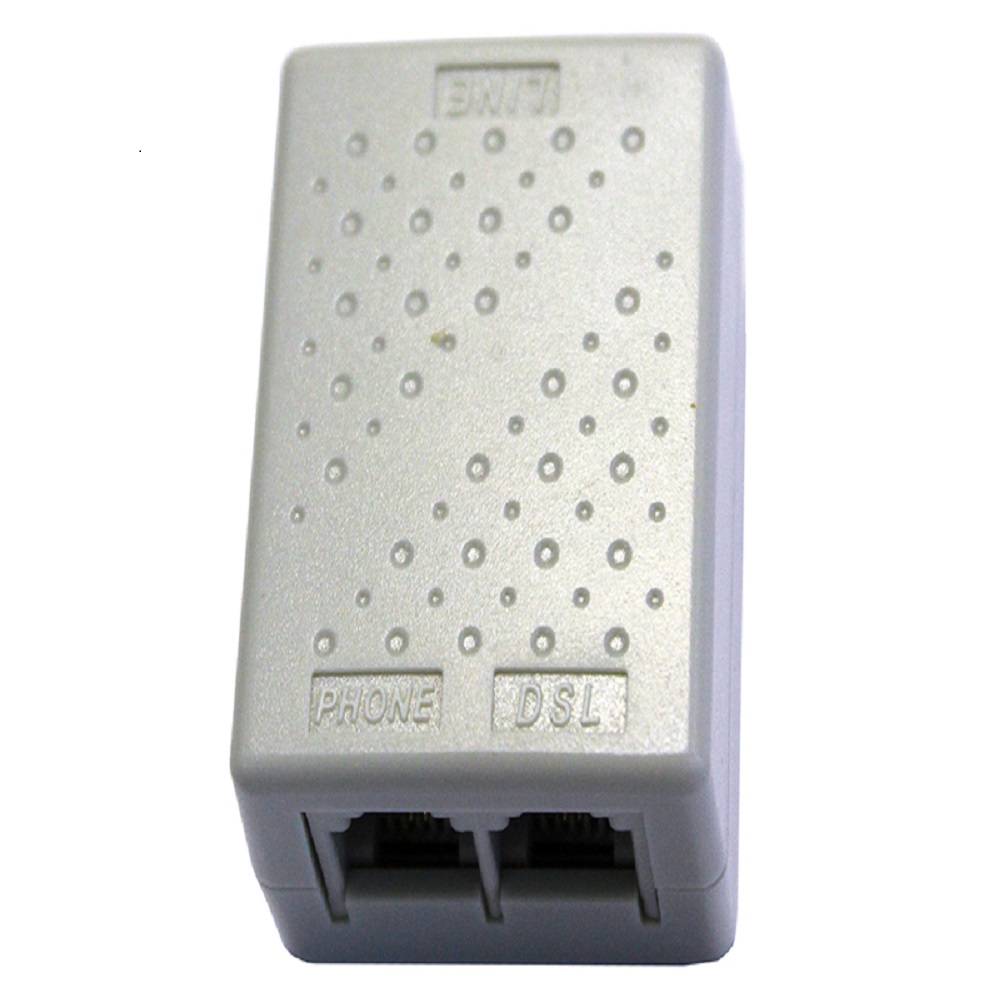

- One RJ-11 connector for a phone (or mini-PBX).
- One RJ-11 connector for a ADSL modem.
Standards
- ADSL, ADSL2, ADSL2+ Annex A/ L/ M.
Dimensions (L x W x H)
- 45 x 33 x 25 mm.
Weight
- 45 g.
