Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
- Hassle-Free Cloud or On-Premises Controllers
- Multi-Site Cloud Management
- Zero-Touch Provisioning (ZTP)*
- Intelligent Monitoring
Specifications
Hardware
Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x,
- IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP,
- HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN,
- GRE VPN, SNMP

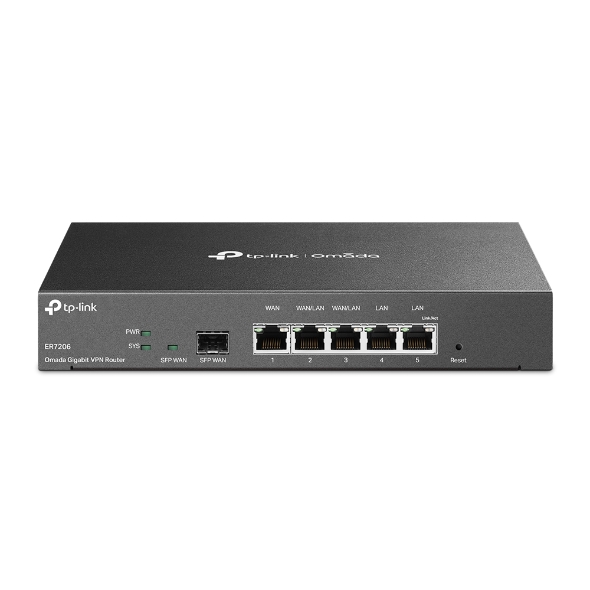

Interface
- 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN port
- 4 Gigabit LAN/WAN ports
USB
- 1 USB3.0 (supports USB LTE dongle and USB Storage)
Fan Quantity
- Fanless
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
- EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
- EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button
- Reset button
Power Supply
- 100-240VAC,50/60Hz
Flash
- 128 MB NAND
DRAM
- 512 MB DDR4
LED
- PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act),
- WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Max Power Consumption
- 7.5 W (with USB 3.0 connected)
- 4.5 W (without USB 3.0 connected)
Surge Protection
- 4 kV surge protection
Mounting
- Desktop/Wall/Rackmount
Dimensions
- ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
SDN Support
Hardware Controller (OC200/OC300) / Software Controller
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
Performance
Concurrent Session
- 150,000
New Sessions /Second
- 5,300
IPS Throughput
- TCP: 229 Mbps
- UDP: 188 Mbps
DPI Throughput
- TCP: 933 Mbps
- UDP: 927 Mbps
Static IP NAT Throughput (Upload /Download)
- 945.3 Mbps / 940.5 Mbps
DHCP NAT Throughput (Upload / Download)
- 939.6 Mbps / 940.9 Mbps
PPPoE NAT Throughput (Upload / Download)
- 943.6 Mbps / 940.9 Mbps
L2TP NAT Throughput (Upload / Download)
- 880.1 Mbps / 859.0 Mbps
PPTP NAT Throughput (Upload / Download)
- 855.0 Mbps / 907.2 Mbps
66 Byte Packet forwarding rate (Upload /Download)
- 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate (Upload / Download)
- 81,279 pps / 81,275 pps
IPSec VPN Throughput
- ESP-SHA1-AES256: 617.1 Mbps
- ESP-SHA256-AES256: 592.8 Mbps
- ESP-SHA384-AES256: 592.4 Mbps
- ESP-SHA512-AES256: 604.5 Mbps
GRE
- Unencrypted: 611.9 Mbps
- Encrypted: 325.0 Mbps
WireGuard VPN
- 341.3 Mbps
SSL VPN
- 131.6 Mbps
OpenVPN
- 139.1 Mbps
L2TP VPN Throughput
- Unencrypted: 977.4 Mbps
- Encrypted: 334.6 Mbps
PPTP VPN Throughput
- Unencrypted: 1064.1 Mbps
- Encrypted: 206.8 Mbps
Basic Functions
WAN Connection Type
- Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
DHCP
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
MAC Clone
- Modify WAN/LAN MAC Address2
IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
Stateful ACL
- √
Basic Functions
- mDNS Repeater: √
- Quality of Service: √
- Bridge VLAN: √
- VLAN: 802.1Q VLAN
Transmission
Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
NAT
- One-to-One NAT
- Multi-Net NAT
- Port Forwarding
- Port Triggering1
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Routing
- Static Routing
- Policy Routing
- RIP2
- OSPF2
Session Limit
- IP-based Session Limit
Bandwidth Control
- IP-based Bandwidth Control
VPN
IPSec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication
- Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (10)3
- 50 Tunnels
- PPTP with MPPE Encryption
- L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (10)3
- 50 Tunnels
- L2TP over IPSec
GRE
- Only in Standalone Mode
WireGuard VPN
- √
SSL VPN
- 50 Tunnels
OpenVPN
- OpenVPN Server
- OpenVPN Client (5)3
- 55 OpenVPN Tunnels
- “Certificate + Account” Mode
- Full Mode
Security
Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Filtering
- Web Group Filtering1
- URL Filtering
- Web Security1
DNS Proxy
- DNSSEC, DoH, and DoT
ARP Inspection
- Sending GARP Packets
- ARP Scanning2
- IP-MAC Binding
Access Control
- Source/Destination IP Based Access Control
Authentication
Web Authentication
- No Authentication
- Simple Password3
- Hotspot (Local User / Voucher3/ SMS3/ Radius3)
- External Radius Sever
- External Portal Sever3
- LDAP
Management
Service Dynamic
- DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)5
- NTP Synchronize5
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Others
Certification
- CE, FCC, RoHS
Package Contents
- ER7206, Power Cord, Quick Installation Guide, Rackmount Kit
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
