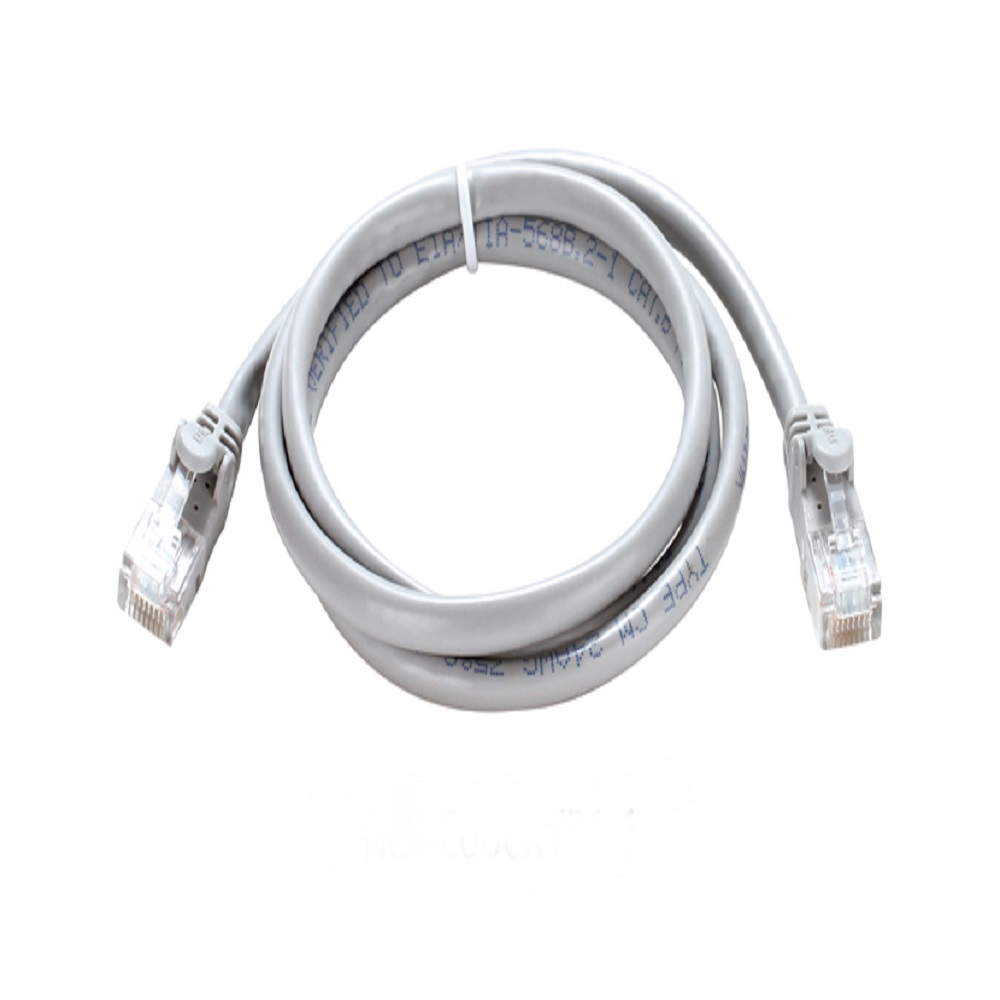

NCB-C6UGRYR1-X D-Link Cat6 UTP Round Patch Cords

In Stock
Highlights:
  • Available in different lengths: 0.25Mtr, 0.5Mtr, 1Mtr, 2Mtr, 3Mtr, 5Mtr, 10Mtr, 15Mtr
  • 4 Pairs Unshielded Twisted Pair (UTP) Cable
  • Conductor Metal: Bare Copper
  • Conductor: 24 AWG
  • Jacket Material: PVC UL94V-0
  • Color Code: Grey, Red and Yellow
Description

D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.

As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

SPECIFICATIONS

  • 4 Pairs Unshielded Twisted Pair (UTP) Cable.
  • Conductor Metal: Bare Copper.
  • Color Code: Gray.
  • Conductor: 24 AWG.
  • Insulation Material: HD-PE.
  • Jacket Material: PVC UL94V-0.
  • Heat-resistant: 60oC minimum (Temperature limited).
  • Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL); FT-1 (CSA) standards.

MODULAR CONNECTOR/PLUG

  • RJ-45 8P for Transparence color.
  • Gold plated: 30U”.
  • Contact blade: Phosphor Bronze.
  • Temperature range: -10 ~ 80 C.
  • Dielectric withstanding voltage: 500V AC.
  • Insulation resistance: 35M Ohm (max.).
  • Durability: 750 matching cycles.
  • Cable-to-plug tensile strength: 20lbs (89N) (min.).
  • UL applications: 250V AC, 2A (max.).
  • Polycarbonate (PC) UL94-V-0.

APPLICATION

  • 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3).
  • 100VG-AnyLAN (IEEE802.12).
  • 550 MHz Broadband Video.
  • Voice, T1, ISDN.
  • 155/ 622 Mbps ATM.
  • Power over Ethernet (POE).

APPROVAL / CERTIFICATION

  • UL 444 (for Copper conductor).
  • UL 758/ Style 2835.
  • UL 1581 (Test standard).
  • Verified compliant with TIA/EIA-568C.2 standards by ETL, CUL listed, RoHs.
