Lightning-Fast AC1200 Dual Band Wi-Fi
Upgrade your home or office network with the advanced 802.11ac Wave 2 AP, which offers dual-band speeds of up to 1200 Mbps—three times the performance of Wireless N. MU-MIMO technology enables the AP to serve multiple devices simultaneously without congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
Gigabit-Class Wired Performance
The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.
Deploy Anywhere with Just One Cable
Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.
Boosted Wi-Fi Coverage
Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office—even over long distances.
Captive Portal Marketing
Captive Portal provides a secure guest network and offers unique marketing opportunities, especially for small businesses like cafes or salons. Utilize a flexibly designed portal page—requiring customers to view an advertisement or accept a set of terms for internet access—to improve brand awareness or deliver marketing messages.
Multi-Mode 4 in 1
Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network’s needs.
Access Point Mode (Default Mode)
Extends your existing wired network and makes it wireless, allowing you to connect all of your Wi-Fi devices.
Multi-SSID Mode
Simultaneously supports up to four separate SSIDs and VLANs on each band, making it ideal for offices where departments with different access policies share a wireless network.
Range Extender Mode
Extend your existing wireless coverage by repeating the wireless signal.
Client Mode
Acts as a “Wireless Adapter” to connect your wired devices to a wireless network.
Wi-Fi Made Easy
Quick Wi-Fi Sharing
Generate a QR code to quickly share Wi-Fi with your guests
Easy Setup and Use
Finish Wi-Fi setup in minutes via intuitive web interface
WPS
Makes secure wireless connection quick and easy with the push of a button

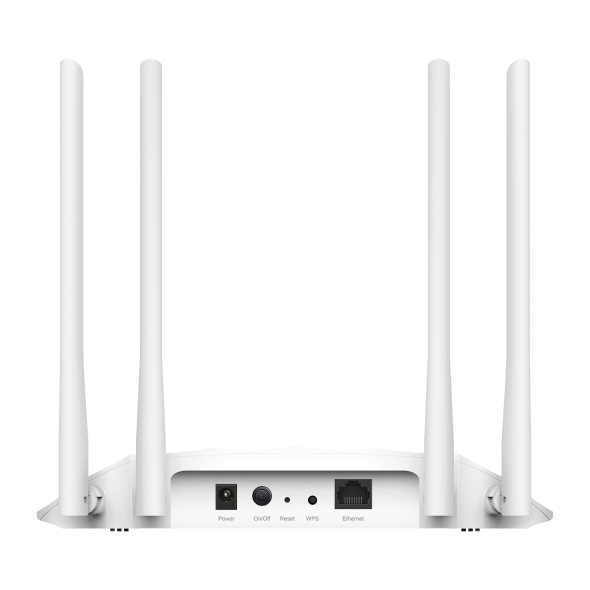

Interface
- 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button
- Power On/Off Button, WPS Button, Reset Button
External Power Supply
- 12V/1.5A
Wireless Standards
- IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H )
- 8.9 × 5.7 × 1.5 in (225×145.5×37 mm)
Antenna Type
- 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity
5 GHz:
- 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
- 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
- 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
- 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
- 11g 54Mbps: -78 dBm
- 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
- 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power
- CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
- FCC: <30dBm(2.4GHz&5GHz)
Wireless Modes
- Access Point, Range Extender, Client, Multi-SSID
Wireless Functions
- Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP
- Server, DHCP Client List
Quality of Service
- WMM
Advanced Functions
- Captive Portal
OTHERS
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Environment
- Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Protocol Support
- IPv4, IPv6

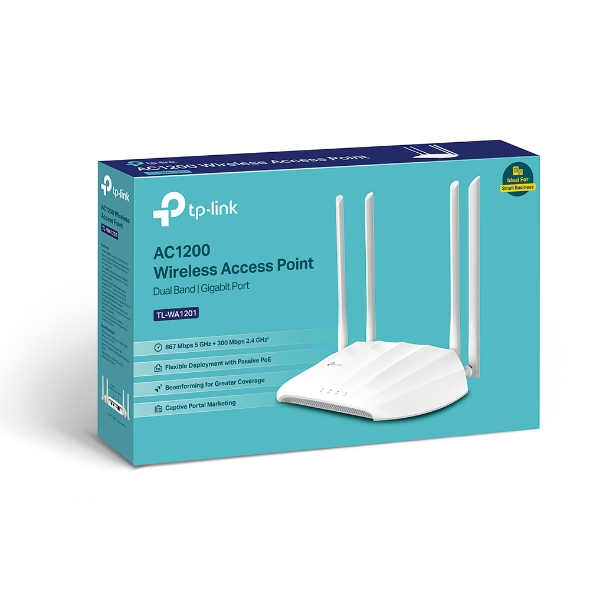

Package Contents
- Wireless Access Point TL-WA1201
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- PoE Power Injector
