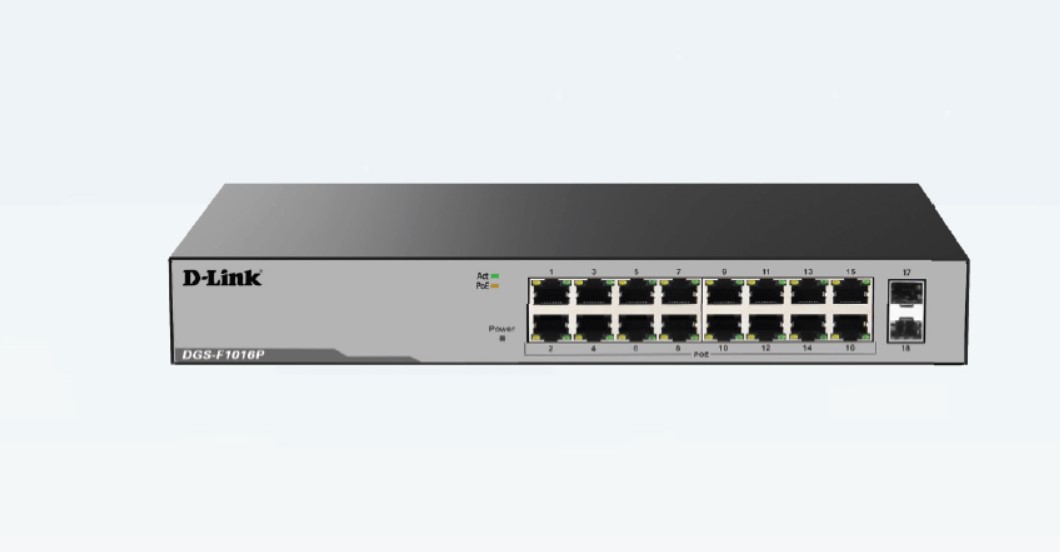

- The D-Link DGS-F1016P Gigabit Pot Switch comes with 16 10/100/1000 Mbps Pot ports & 2 Gigabit SP uplink ports. This Switch enables users to easily connect and supply power to Pot-capable devices such as wireless Access Points (APs), IP cameras.
Power Over Ethernet
- The D-Link DGS-F1016P supports both IEEE 802.3at and IEEE 802.3at POE protocol. With a total POE budget of 250 watts, allowing users to attach an IEEE 802.3at-compliant device to the DGS-F1016P without requiring additional power. POE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the ethernet cables themselves.
Features
Superior connectivity
- 16 10/100/1000Mbps ports
- 2 Gigabit SFP uplink ports
- 250 watts available for Pot
- Flow control for protection against data loss
Standards
- IEEE 802.3 10 BASE-T Ethernet (twist-pair copper) • IEEE 802.3u 100 BASE TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3Xflow Control
- Auto MDI/MDIX crossover for all ports
Technical specifications
General
Part Number
- DGS-F1016P
Description
- 16 Port Gigabit Unmanaged POE Switch with 2 SFP ports 250 watts
Network interface
- 16 10/100/1000Mbps POE RJ45 PPORT (PORT 1~PORT24)
- 2 Gigabit SFP ports
Transmission rate
- 10/100/1000Mbps Each port supports MDI/MDIX auto-flip auto-negotiation
- Network interface: 10Base-TX, 1000 Base-T Ethernet RJ-45 port
Functionality
switching capacity
- 52Gbps
Packet forwarding
- 38.688Mbps
LED’s Indicator POE
- Power
- LINK/ACT,POE
Budget
- 250W
Power
- 100-240VAC, 50-60HZ
Physical
Physical characteristics
- Dimensions (LXWXH): 320*180*44mm
- Weight: 2.31Kg
