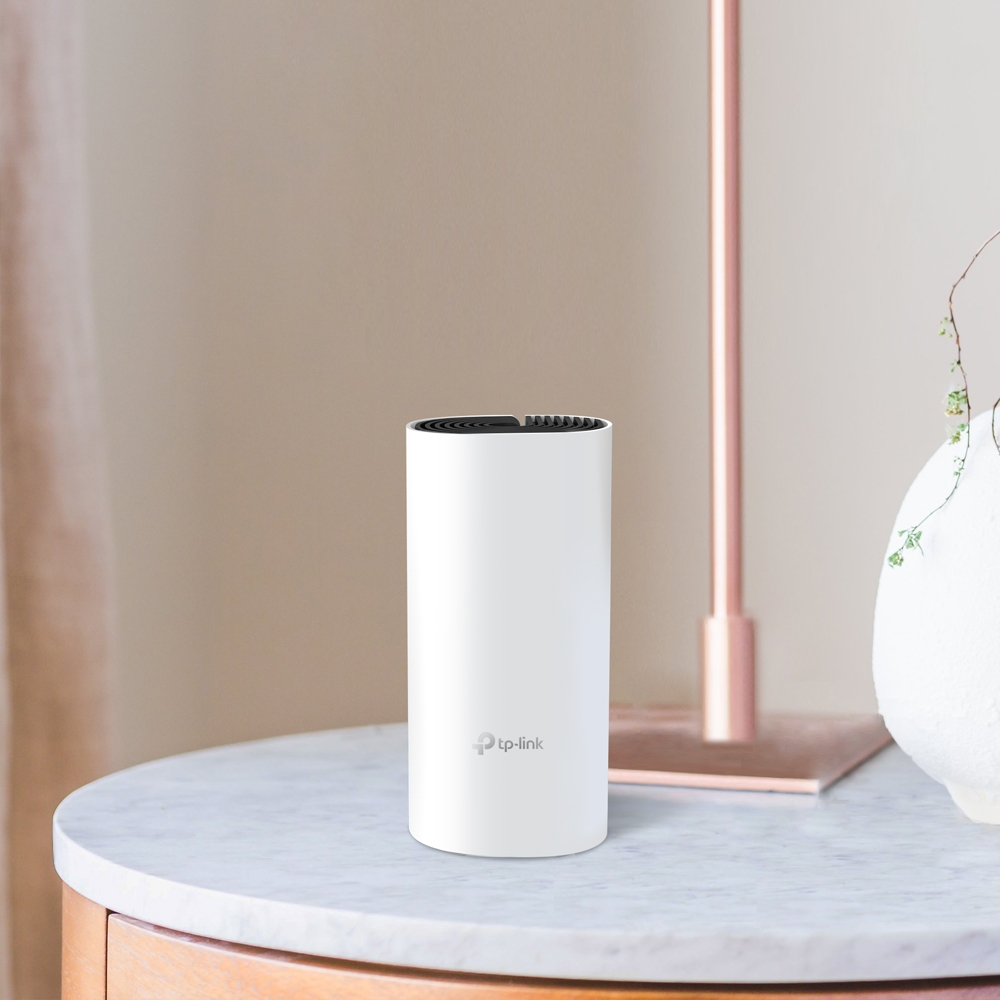

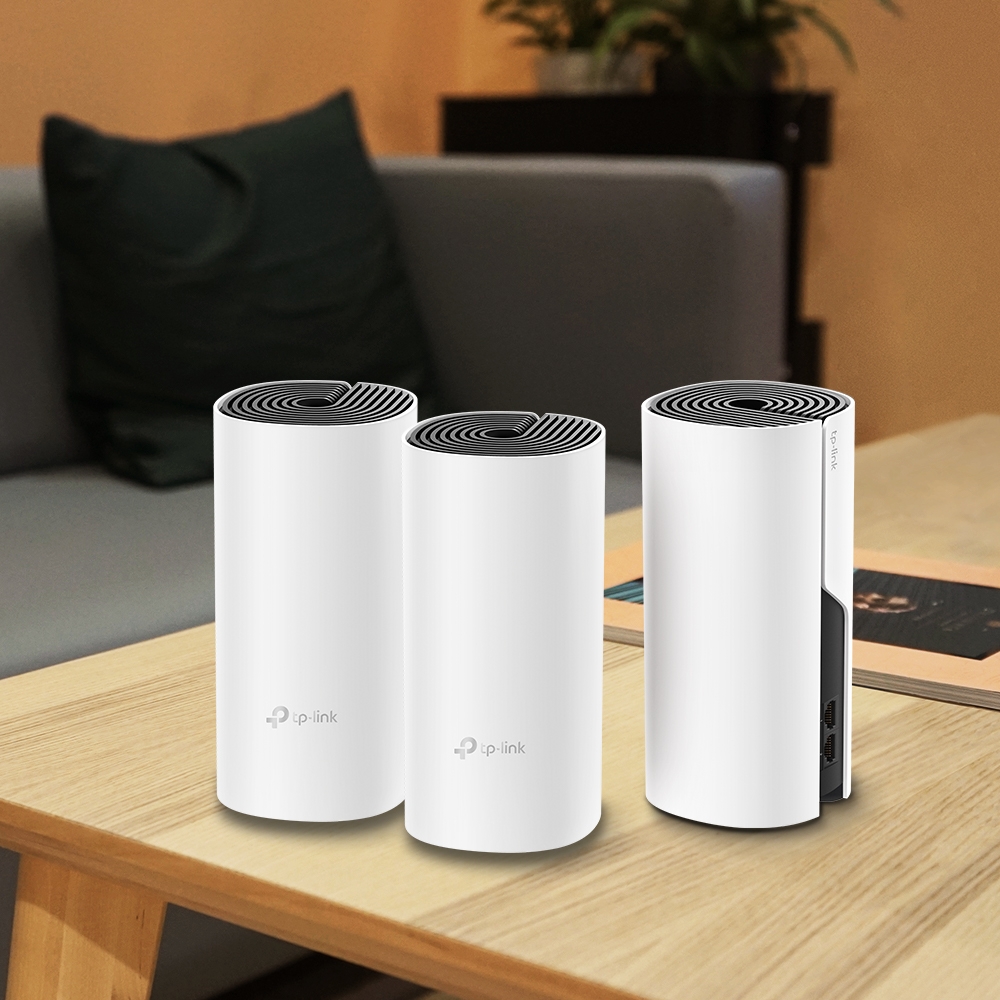

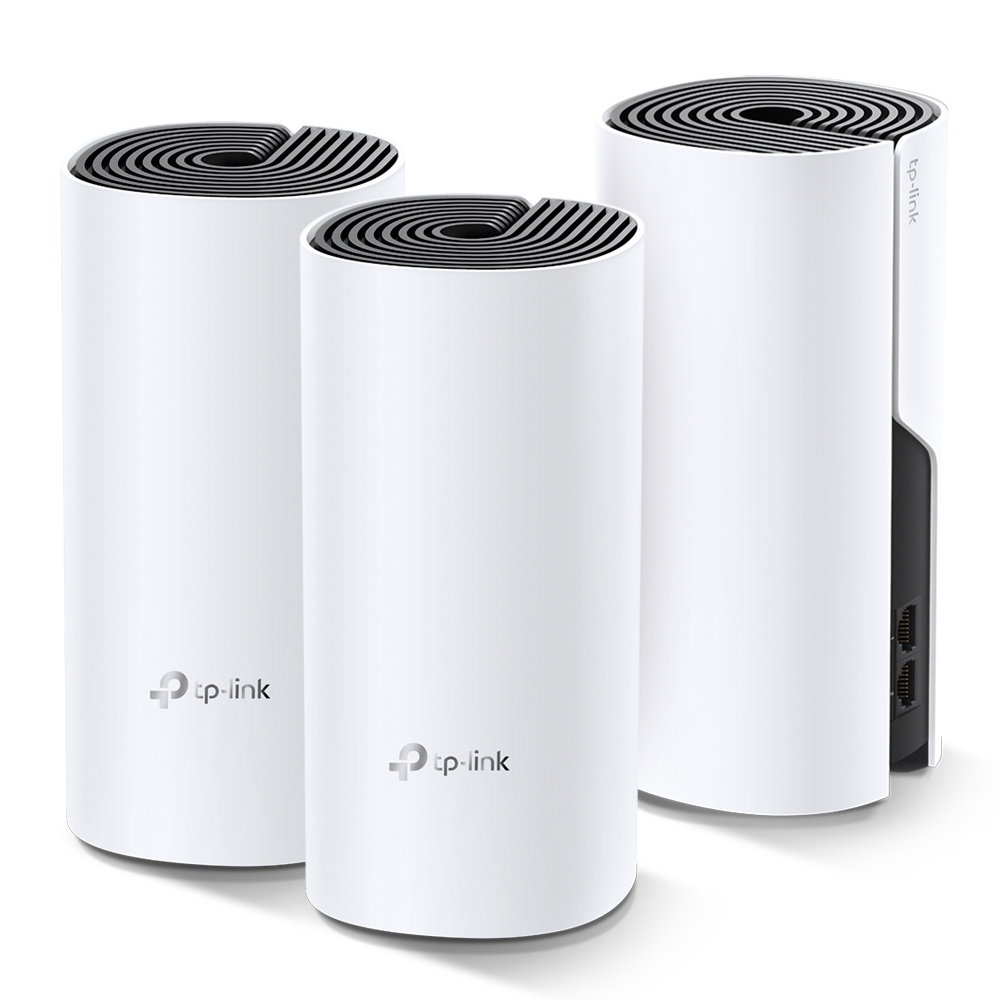

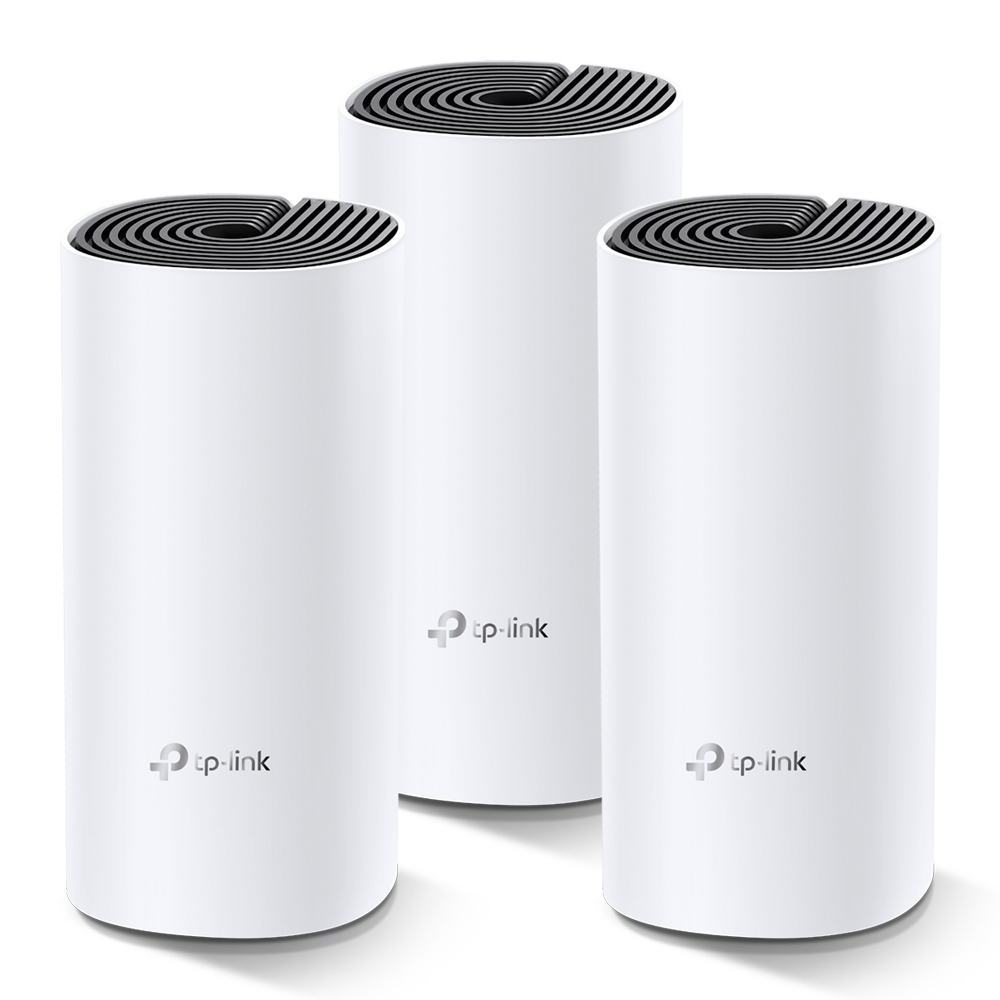

Deco M4 uses TP-Link Mesh technology to cover your entire home in powerful Wi-Fi. Multiple units seamlessly work together to create a home network like nothing you’ve ever experienced. Deco M4 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 4,000 square feet (3-pack, EU version). Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.
Features

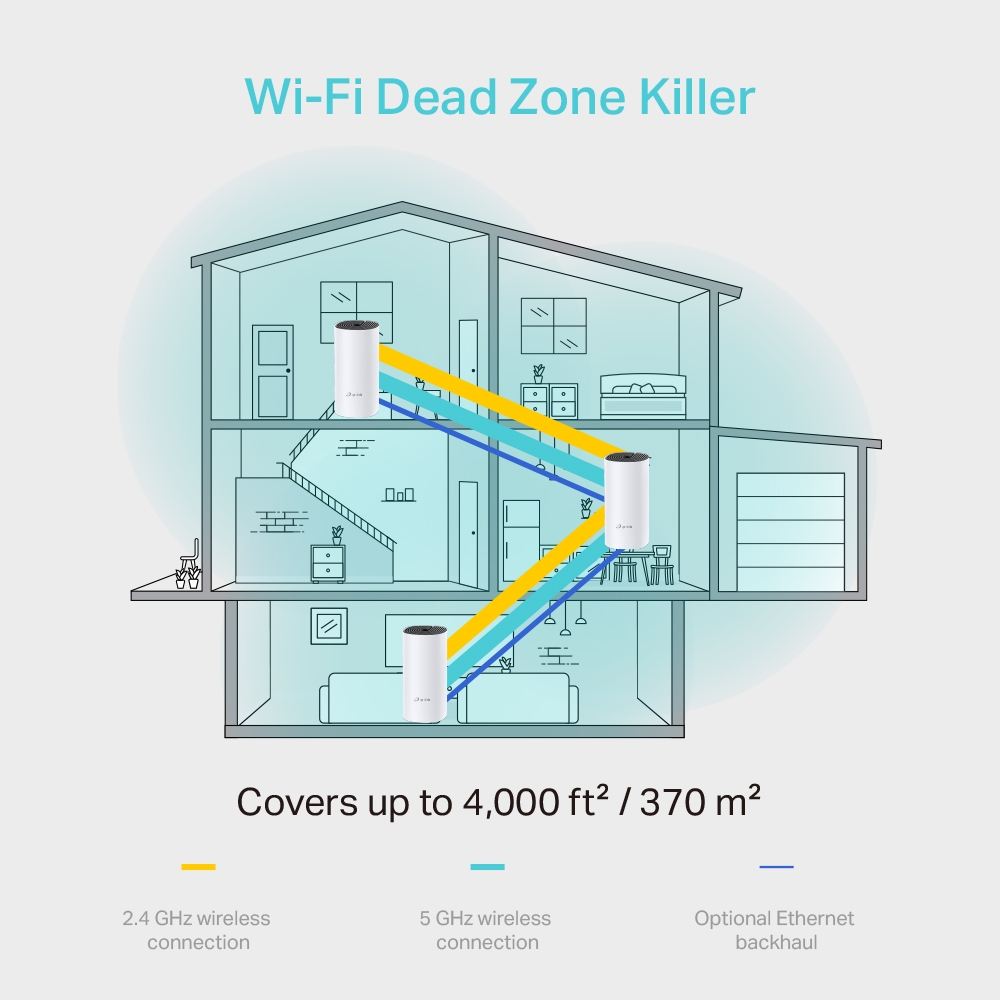

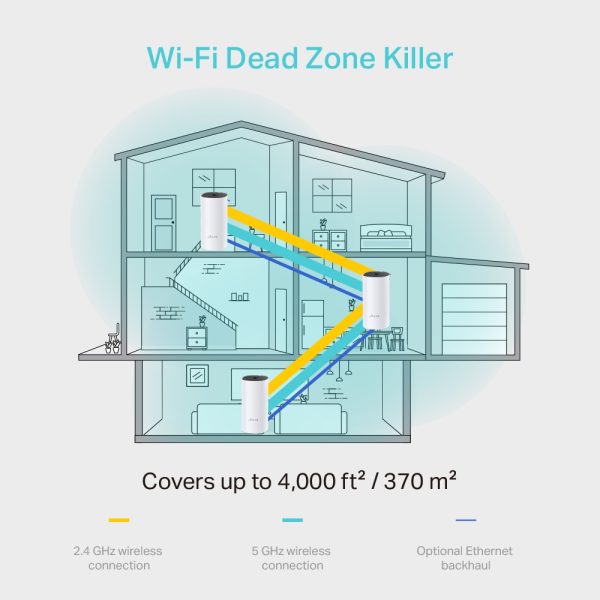

- Wi-Fi dead-zone killer
- Seamless roaming with one wi-fi name
- no buffering
- 2-in-1 router and access point modes
- Robust parental controls
Technical Specifications
- WIRELESS
Standards
- Wi-Fi 5
- IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz

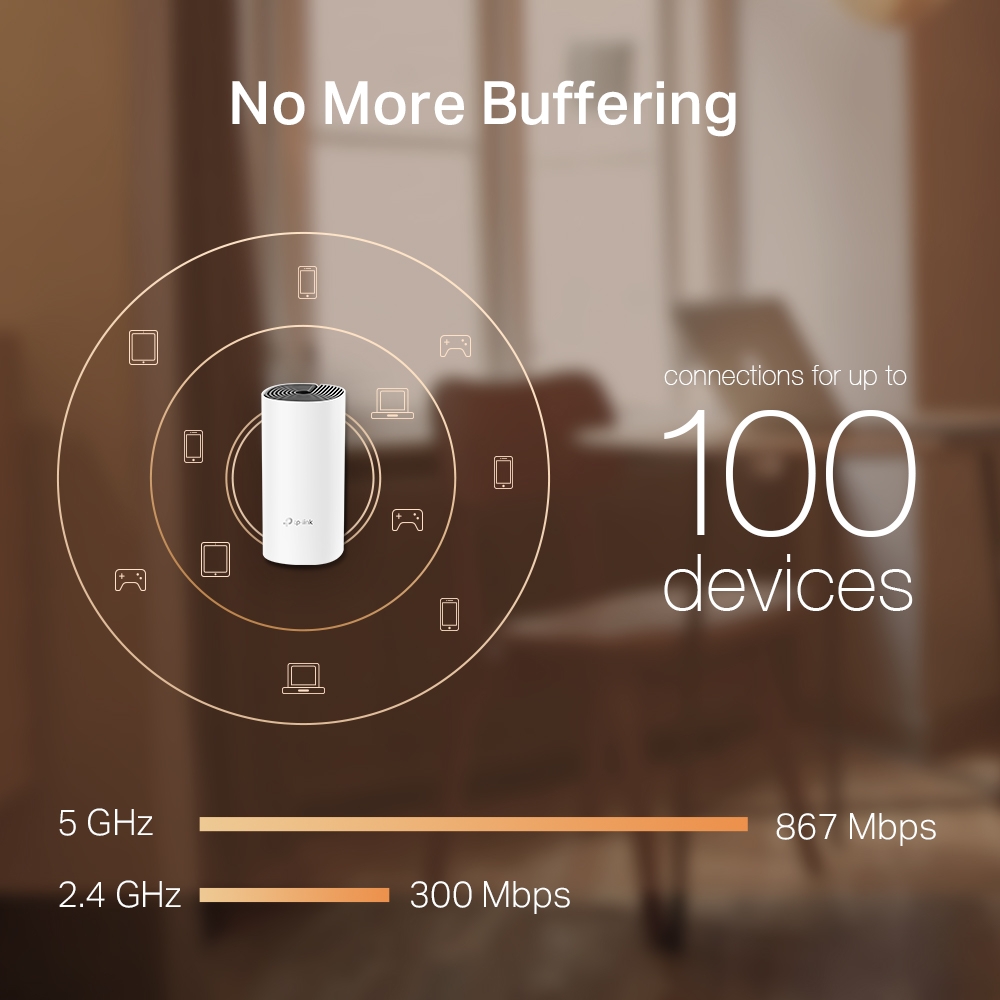

WiFi Speeds
- AC1200
- 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
WiFi Range
- 3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage - 2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas - Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
- Medium
Dual-Band
- Distribute devices to different bands for optimal performance
MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- Working Modes
- Router Mode
- Access Point Mode
HARDWARE
Ethernet Ports
- 2× Gigabit Ports
- *Per Deco Unit: Supports WAN/LAN auto-sensing
Buttons
- Reset Button
- SECURITY
WiFi Encryption
- WPA-Personal
- WPA2-Personal
Network Security
- SPI Firewall
- Access Control
Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
SOFTWARE
- Protocols
- IPv4
- IPv6
Parental Controls
- URL Filtering
- Time Controls
WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
Quality of Service
- QoS by Device
Cloud Service
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
NAT Forwarding
- Port Forwarding
- UPnP
IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
DHCP
- Address Reservation
- DHCP Client List
- Server
DDNS
- TP-Link
- Management
- Deco App
TEST DATA
WiFi Transmission Power
- CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz) - FCC:
<30 dBm
PHYSICAL
Dimensions (W×D×H)
- 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm)
Package Contents
- Deco M4 (3-pack)
- 3 Deco M4R Units
- 1 RJ45 Ethernet Cable
- 3 Power Adapters
- 1 Quick Installation Guide
OTHERS
System Requirements
- Android 5.0 or later
- iOS 9.0 or later
Certifications
- CE
- FCC
- IC
- NCC
- BSMI
- IDA, RCM
- JPA
- JRF
- VCCI
- KC
- RoHS
Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
