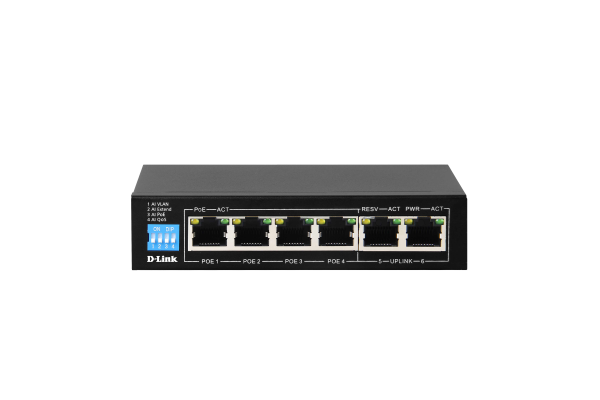

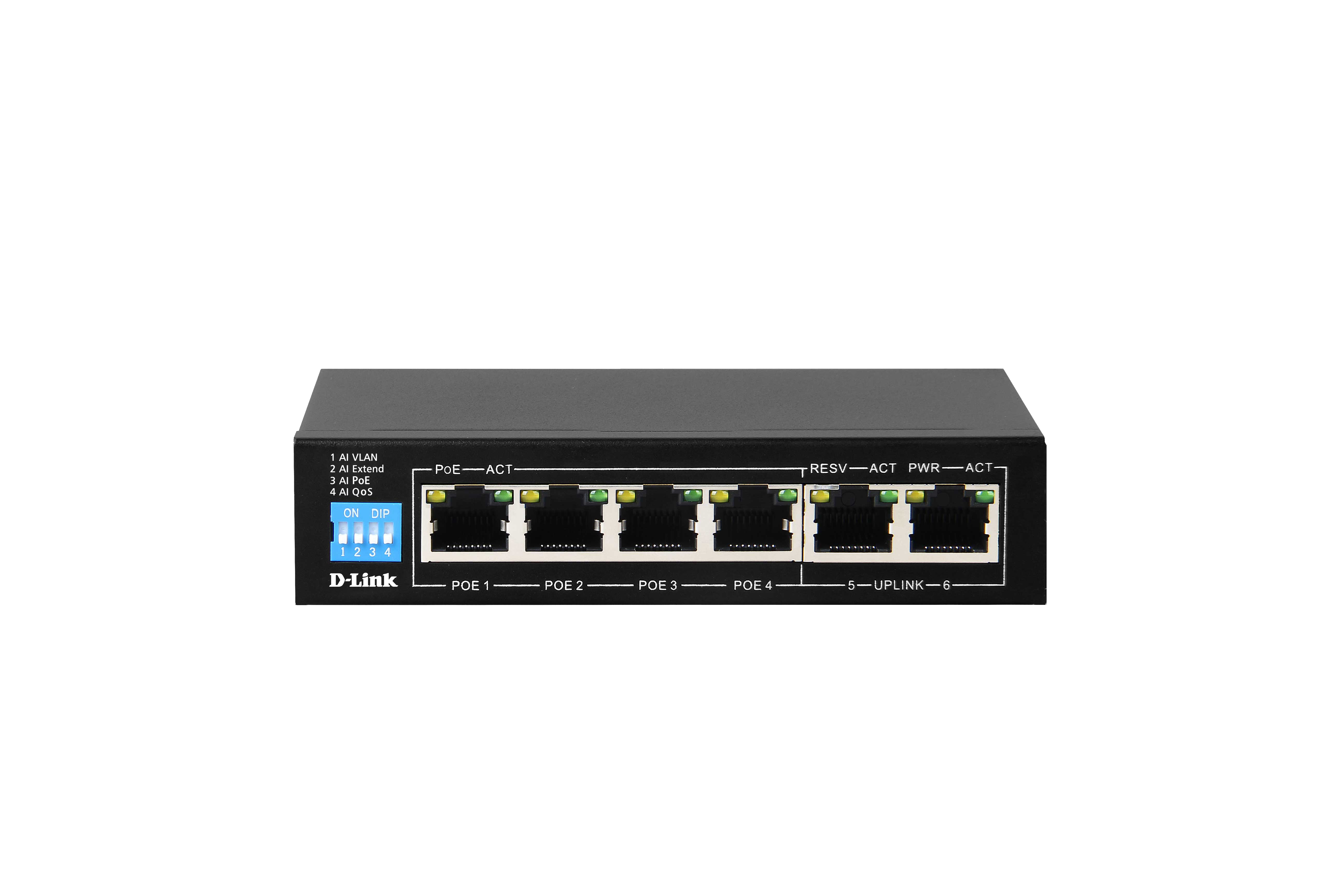

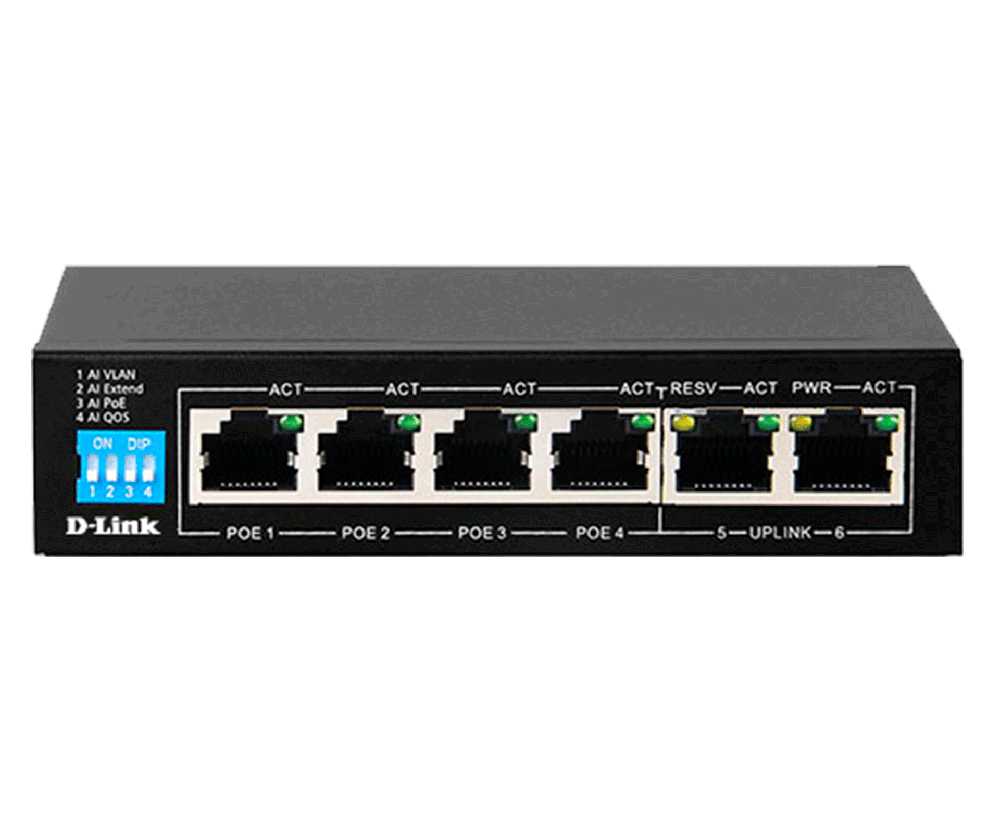

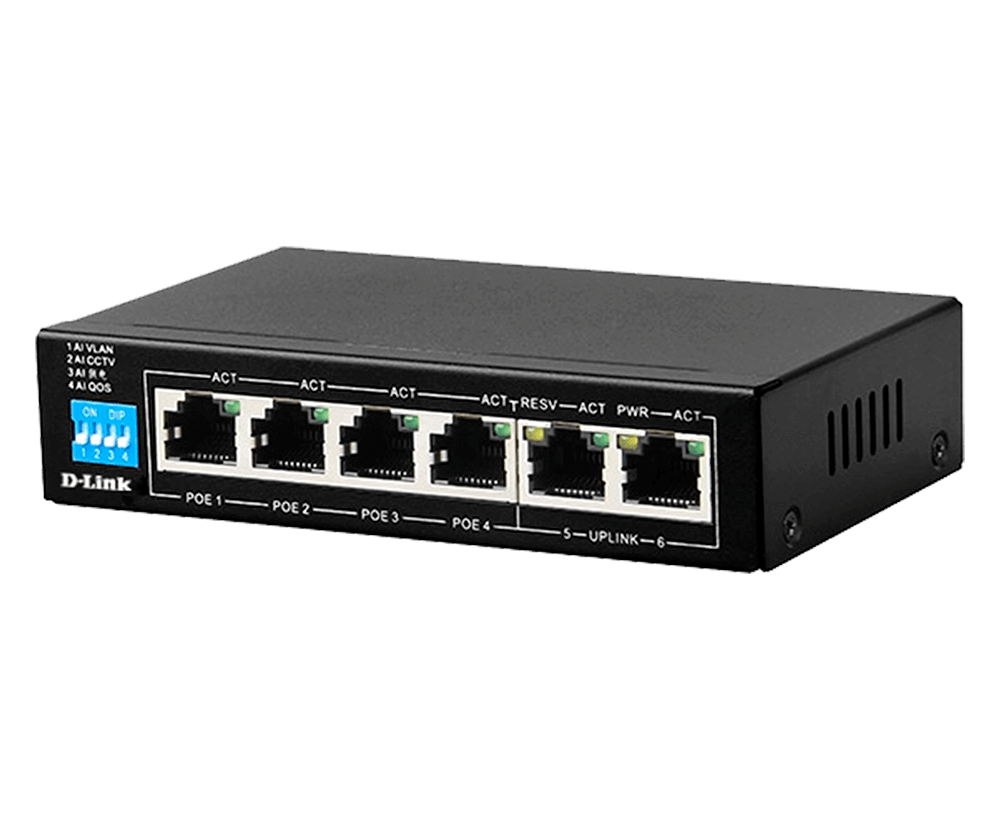

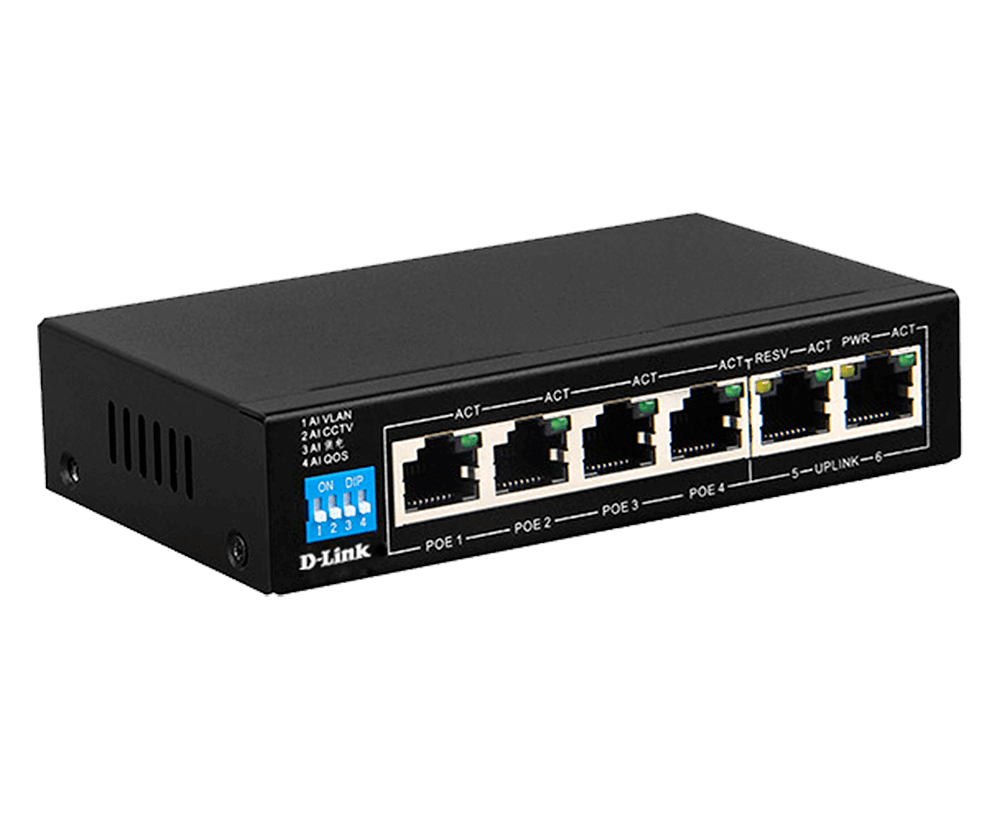

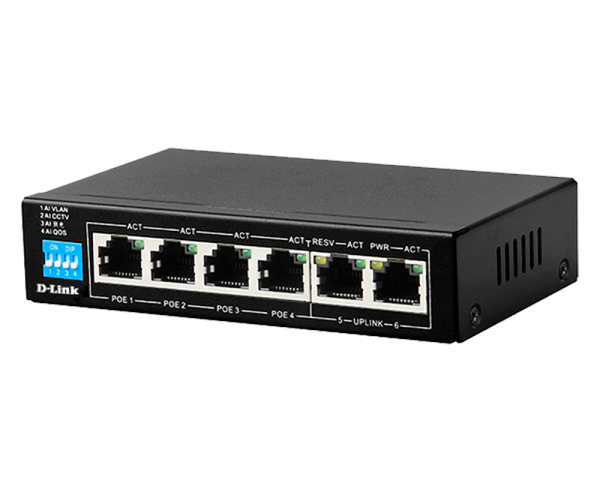

The D-Link DES-F1006P-E is a 6 port 100Mbps with 4 10/100 Mbps PoE ports, 2
10/l00Mbps uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Power Over Ethernet
The DES-Fl006P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 60 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DES-Fl006P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves
Features
Superior connectivity
- 4 10/1 0OMbps Fast Ethernet ports
- 2 10/1 0OMbps uplink port
- 60 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
Standards
- IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
- Fanless device
Technical specifications
General
Network Interface
• 4 10/1 00Mbps PoE RJ45 port (port 1 ~port 4)
• 2 10/1 00Mbps uplink RJ45 port (port S~port 6 )
Transmission Rate
• 10/1 00Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation • Network interface:lOBASE-T or lO0BASE-TX Ethernet RJ-45 port
Protocols and Standards
- IEEE802.3 1 0BASE-T
- IEEE 802.3u lO0BASE-TX
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE802.3x Flow Control
- IEEE 802.3af/at standard
Functionality
Switching Capacity
• 1.2 Gbps
Forwarding Rate
- 1 OM: 14,800pps
- 1 QOM: 148,800pps
LED’s Indicator
- Power
- LINK/ACT
PoE Budget
• 60W
Power
• External Power adapter: 100~240 – 50/60Hz, 52V, 1.15A
Lightning protection
• 6KV
Physical
Physical Characteristics
• Dimensions (LxWxH): 125 x 75 x 27mm
• Weight: 0.75kg
Environmental Parameter
• Operating Temperature: O to 40 °C (32 to 104 °F)
• Operating Humidity: 10% to 90% non-condensing
