overview :

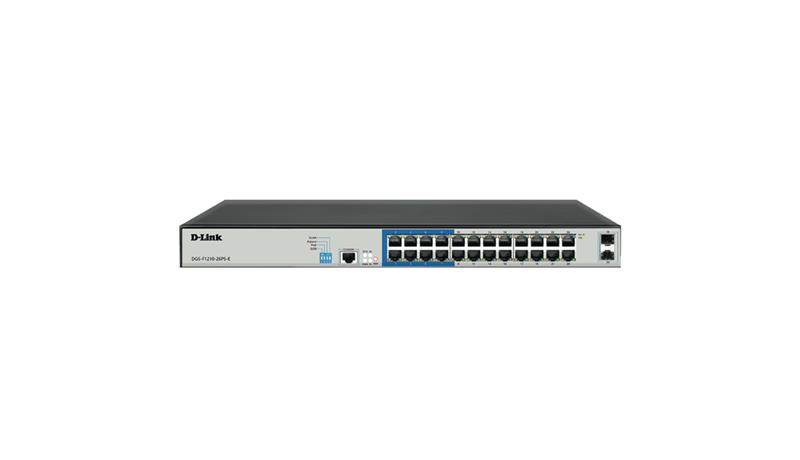

Power Over Ethernet : The DGS-F1210-26PS-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 250 watts, allowing users to attach an IEEE 802.3af-compliant device to the DGS-F1210-26PS-E without requiring additional power.
PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.
- Features
Superior connectivity
• 24 10/10O/1000 Mbps PoE ports
• 2 Gigabit SFP Ports
• 250 watts available for PoE
• Flow control for protection against data loss
• Maximum distance of 250m
Standards
• IEEE 802.3 10BASE-T Ethernet (twist-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet
(twisted pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
(twisted pair copper)
• IEEE 802.3z 1000 BASE-X (fiber-optic)
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet
- Technical Specification:
General
Network Interface: 24 10/100/1000 Mbps PoE RJ45 port (port1~port24)
2Gigabit SFP Ports
Console Port :RJ45
DIP Switches: VLAN, Extend, PoE, QoS
Transmission Rate:
10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation
Network interface: 10BASE-T or 100BASE-TX, 1000 BASE-T Ethernet RJ-45 port
Protocols and Standards:
IEEE802.3 10BASE-T
IEEE 802.3u 100BASE-TX
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-X
IEEE802.3x Flow Control
IEEE 802.3af/at standard
Functionality
Switching Capacity: 52 Gbps
Packet Forwarding : 38.688Mpps
LED’s Indicator : Power, SYS, LINK/ACT, PoE
Budget: 250W
MAC Address Table: 8K Entries
Power: 100-240VAC, 50-60Hz
Lightning protection : 6KV
Physical
Physical Characteristics
Dimensions (LxWxH): 440 x 180 x 44mm
Weight: 3.2kg
Environmental Parameter
Operating Temperature: O to 40 °C (32 to 104 °F)
Operating Humidity: 10% to 90% non-condensing
POE management:
POE power limit
POE chip status view
PoE port priority
PoE power supply time period
