The TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications. TD-W9960 manages network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.
Hardware Features:

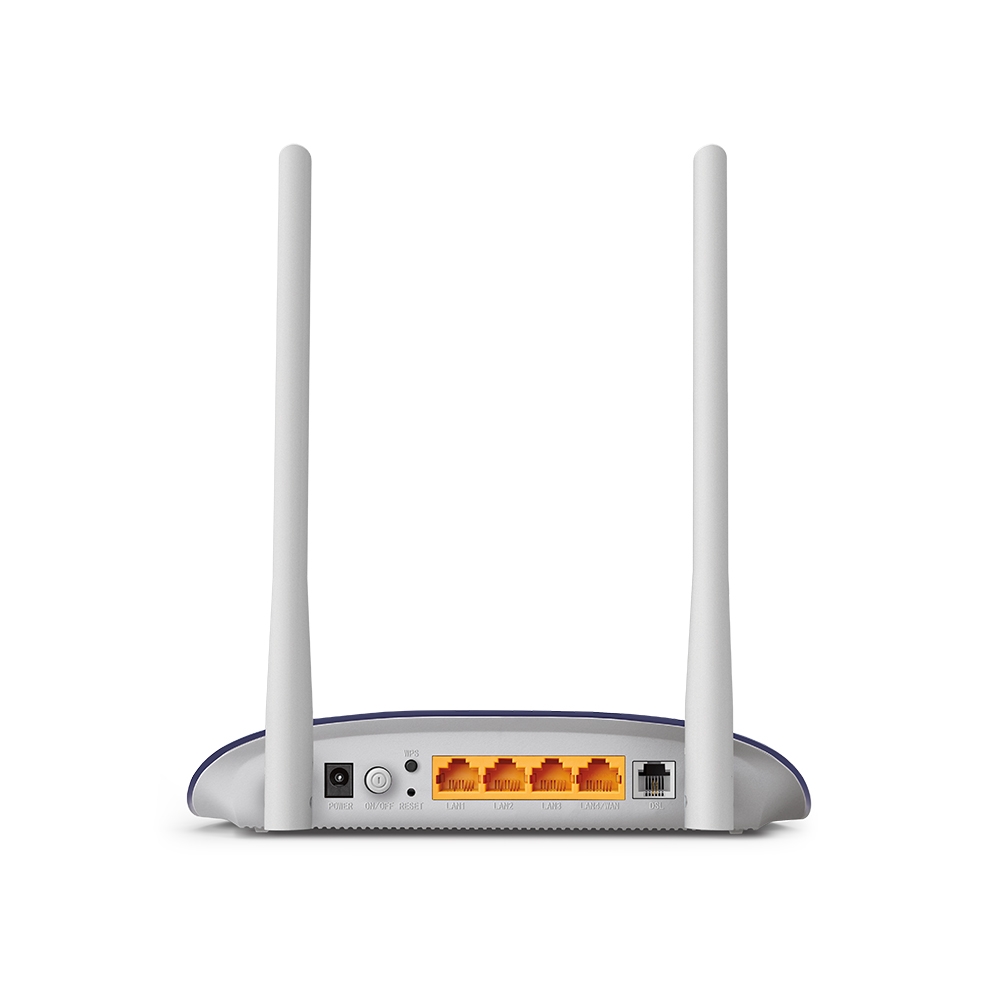

Interface
- 3 10/100Mbps RJ45 LAN Ports
- 1 10/100Mbps RJ45 LAN/WAN Port
- 1 RJ11 Port
Button
- WPS Button
- RESET Button
- Power ON/OFF Button
External Power Supply
- 9VDC/0.6A
IEEE Standards
- IEEE 802.3, 802.3u
VDSL2 Standards
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
Dimensions (W x D x H)
- 181.6 x 129.7 x 36.2mm
Antenna Type
- Omni directional
- Fixed
Antenna Gain
- 2 x 5dBi
Wireless Features:
Wireless Standards
- IEEE 802.11b
- 802.11g
- 802.11n
Frequency
- 2.400-2.4835GHz
Transmit Power
- <20dBm(EIRP)
Wireless Security
- 64/128-bit WEP
- WPA/WPA2
- WPA-PSK/WPA-PSK2 encryptions
- Wireless MAC Filtering
Software Features:
Quality of Service
- WMM
- Bandwidth Control (IP QoS)
Security
- NAT Firewall
- SPI Firewall
- DoS Protection
- IP & MAC Binding
- Service Filtering
- Access Control
- Parental Controls

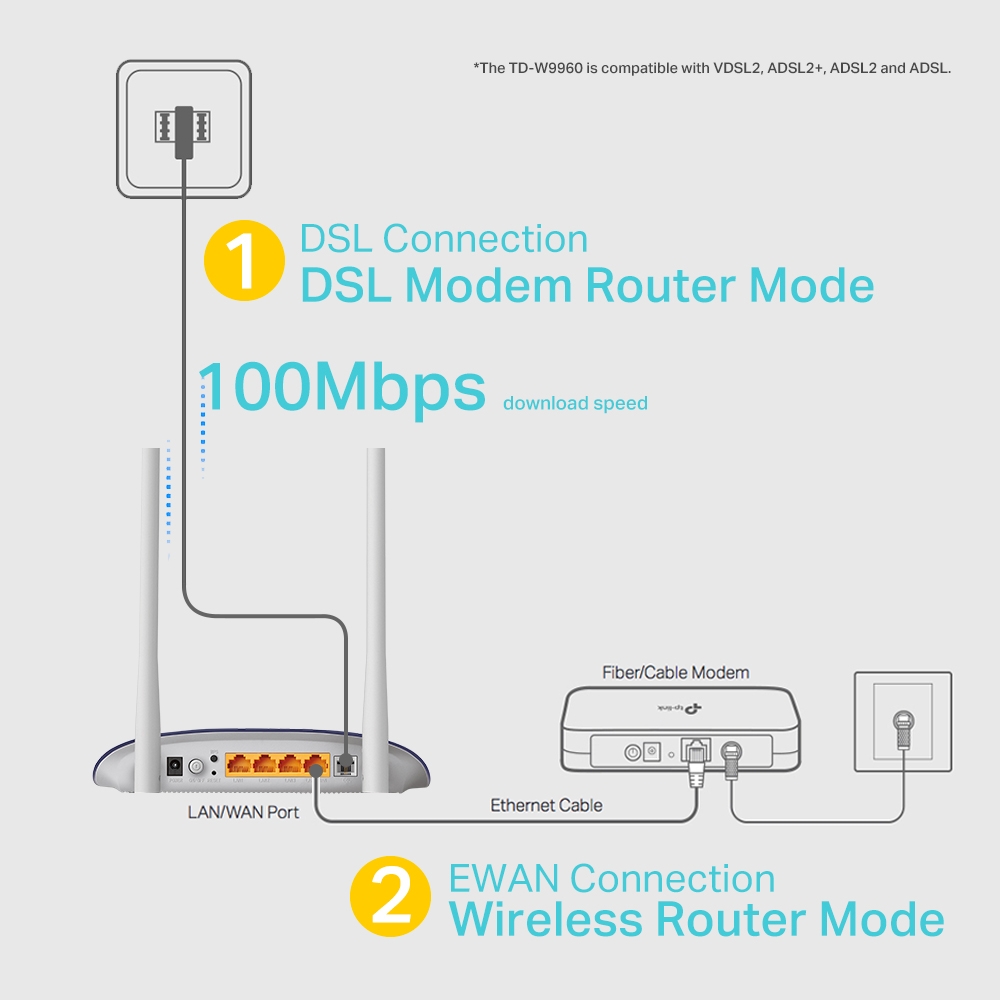

Operating Modes
- VDSL/ADSL Modem Router
- Wireless Router
Management
- Web Based Configuration (HTTP)
- Remote management
- CWMP(TR-069)
- Web Based Firmware Upgrade
- Diagnostic Tools
VPNPass-Through
- IPSec VPN
Protocols
- Supports IPv4 and IPv6
- ATM/PPP Protocols
- PPPoE (RFC2516)
- PPPoA (RFC 2364)
- MER\IPoE (RFC 1483 Routed)
- IPoA (RFC1577/2225)
- Bridge (RFC1483 Bridge)
Advanced Features
- Parental Controls
- Network Address Translation(NAT)
- Port Mapping(Grouping)
- Static Routing
- RIP v1/v2(optional)
- DNS Relay
- DDNS
- IGMP V1/V2/V3
App
- Tether App
NAT
- Virtual Server
- Port Triggering
- DMZ
- ALG
- UPnP
Others:
Certification
- CE
- RoHS
Package Contents
- External DSL Splitter
- RJ-11 DSL Cable
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Power Adapter
System Requirements
- Microsoft Windows 98SENT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Subscription with an internet service provider (for internet access)
Environment
- Operating Temperature: 0℃~40℃(32℉~104℉)
- Storage Temperature: -40℃~70℃(-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Wi-Fi Range
- Expansive Coverage: 300Mbps Wi-Fi allows stable speed forwireless activities, such as streaming, surfing, browsing and posting social media
- High-gain Antennas: Two 5dBi high-gain antennas expand network coverage across your home
Reliability
- Easy Bandwidth Management: IP-based Bandwidth Control
makes it easier for you to manage the bandwidth of connected
devices
Easy Management
- Intuitive Web UI: Ensures quick and simple installation without hassle
- Hassle-Free Management with TP-Link Tether: Network management is made easy with TP-Link Tether, available on any Android or iOS device
6kV Lightning Protection
- Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
