Overview

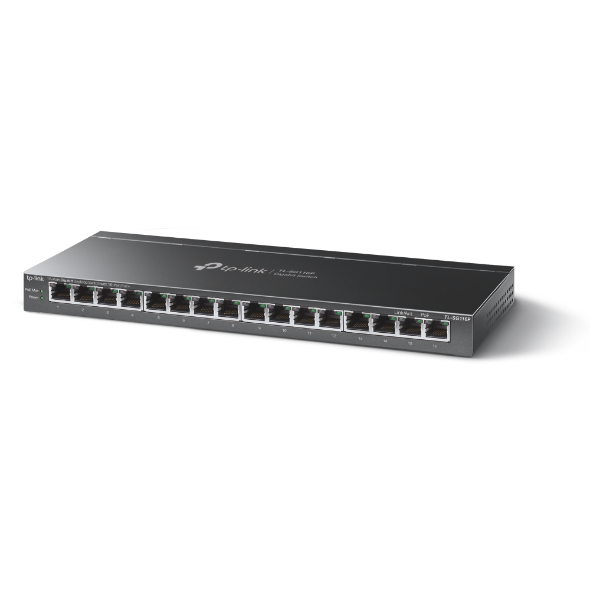

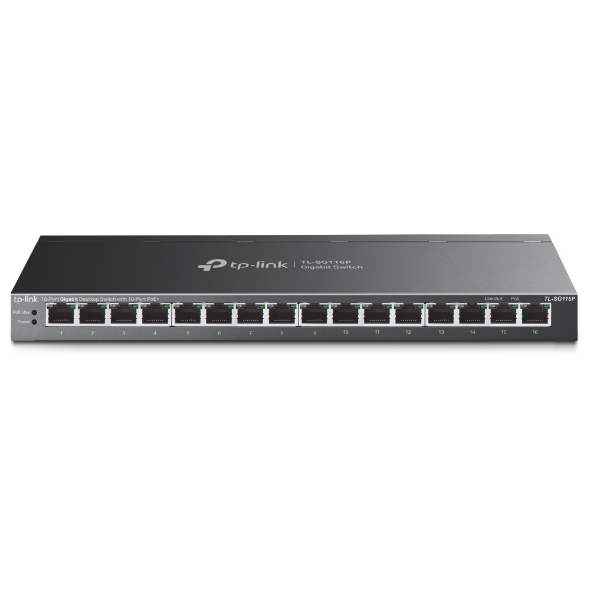

TL-SG116P is an unmanaged switch with 16 Gigabit ports that requires no configuration and provides 16 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
16 RJ45 ports of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SG116P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 120 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3>… > port 16): This function will help protect the system when the system power is overloaded. For example, port 1, 2, 3 and 5 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 4 with 30 W, and then the system will cut off the power of port 5 because of the overloaded power, this
means port 1, 2, 3 will use 25 W respectively and port 4 will use 30 W, no power will be supplied to port
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of port 1–4 to guarantee the quality of sensitive application.
• Isolation Mode easily divides traffic for port 1-7/8-14 to avoid snooping and tampering, which improves LAN security and performance.
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-16. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically
Easy to Use
TL-SG116P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+ TL-SG116P is a great selection for expanding your network.
Specifications
Model
- TL-SG116P
Standards
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Network Ports
- 16-Port Gigabit Desktop Switch with 16-Port PoE+
Network Media (Cable)
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
- 100Base-TX: UTP category 5, 5e cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
PoE
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Port 1–16, up to 30 W per port
- PoE Power Budget 120 W*
Auto-Negotiation
- YES
Auto MDI/MDIX
- YES
PoE Power on RJ45
- Power+: pin 3 & pin 6
- Power -: pin 1 & pin 2
Max Power Consumption
- 11.72 W (220 V/50 Hz no PD connected) / 11.56 W (110 V/60 Hz no PD connected)
- 142.51 W (220 V/50 Hz with 120 W* PD connected) / 144.28 W (110 V/60 Hz with 120 W*PD connected)
Max Heat Dissipation
- 39.85 BTU/h (220 V/50 Hz no PD connected) / 39.31 BTU/h (110 V/60 Hz no PD connected)
- 484.53 BTU/h (220 V/50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V/60 Hz with 120 W* PD connected)
Forwarding Mode
- Store and Forward
Switch Capacity
- 32 Gbps
MAC Address Table
- 8K, Auto-learning, Auto-aging
Extend Mode
- YES (for Ports 1–4)
Priority Mode
- YES (for Ports 1–4)
Isolation Mode
- YES (for Ports 1-7/8-14)
PoE Auto Recovery
- YES (for Ports 1-16)
Flow Conrol
- YES
Fanless
- YES
LED
- Power, Link/Act, PoE Status, PoE MAX
Dimensions
- 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Environment
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% RH, non-condensing
- Storage Humidity: 5% to 90% RH, non-condensing
