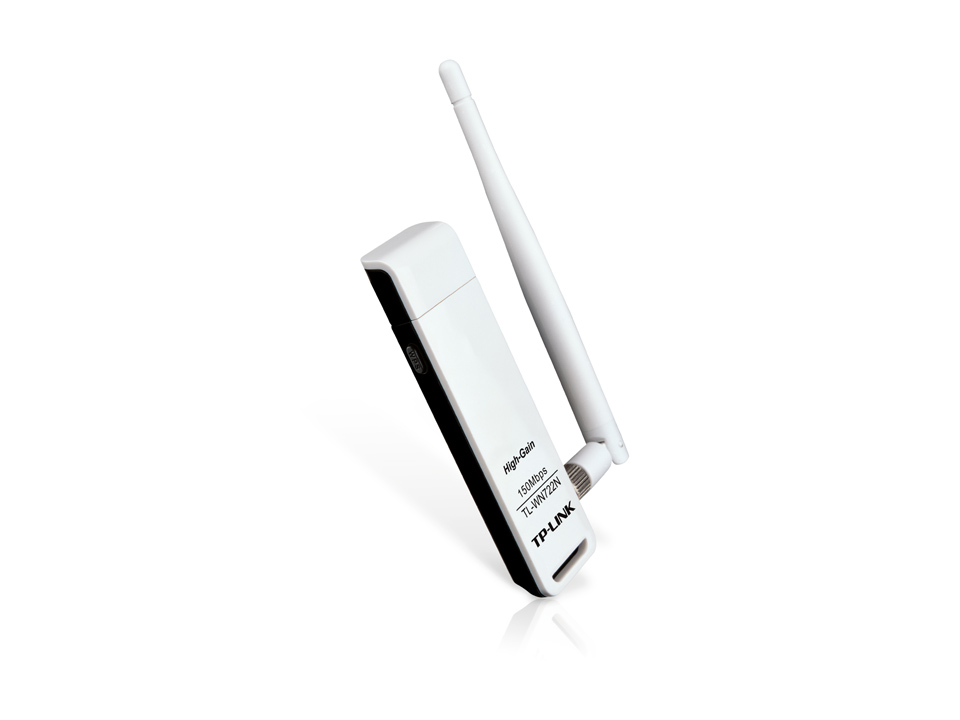

Wireless N USB Adapter TL-WN722N allows you to connect a desktop or notebook computer to a wireless network and access high-speed Internet connection. Complies with IEEE 802.11n, they provide wireless speed up to 150Mbps, which is beneficial for the online gaming or even video streaming. Also, wireless security encryption could be established simply at a push of QSS (Quick Setup Security) button, preventing the network from outside threats. Base on the IEEE 802.11n technology, TL-WN722N shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Compared with legacy 54M products, TL-WN722N delivers performance enhancements, allowing you to have a more joyful surfing experience, including sharing files, watching streaming media.
HARDWARE FEATURES
Interface
- USB 2.0
Button
- WPS Button
Dimensions ( W x D x H )
- 3.7 x 1.0 x 0.4 in. (93.5 x 26 x 11mm)
Antenna Type
- Detachable Omni Directional (RP-SMA)
Antenna Gain
- 4dBi
WIRELESS FEATURES
Wireless Standards
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
- 2.400-2.4835GHz
Signal Rate
- 11n: Up to 150Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
Transmit Power
- <20dBm
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
- Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Advanced Functions
- WMM, PSP X-LINK(For Windows XP), Roaming
OTHERS
Certification
- FCC, RoHS

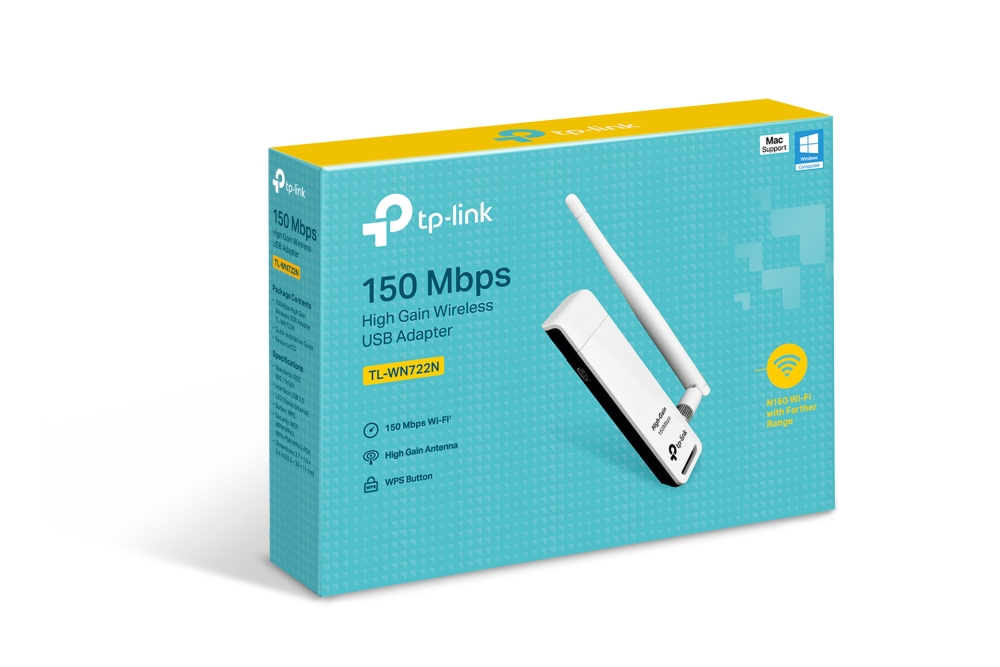

Package Contents
- Wireless Adapter
- One USB extension cable
- Resource CD
- Quick Installation Guide
System Requirements
- Windows 11/10/8.1/8/7/XP (32/64bits), Mac OS 10.9~10.13, Linux 2.6.18~4.4.3
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
