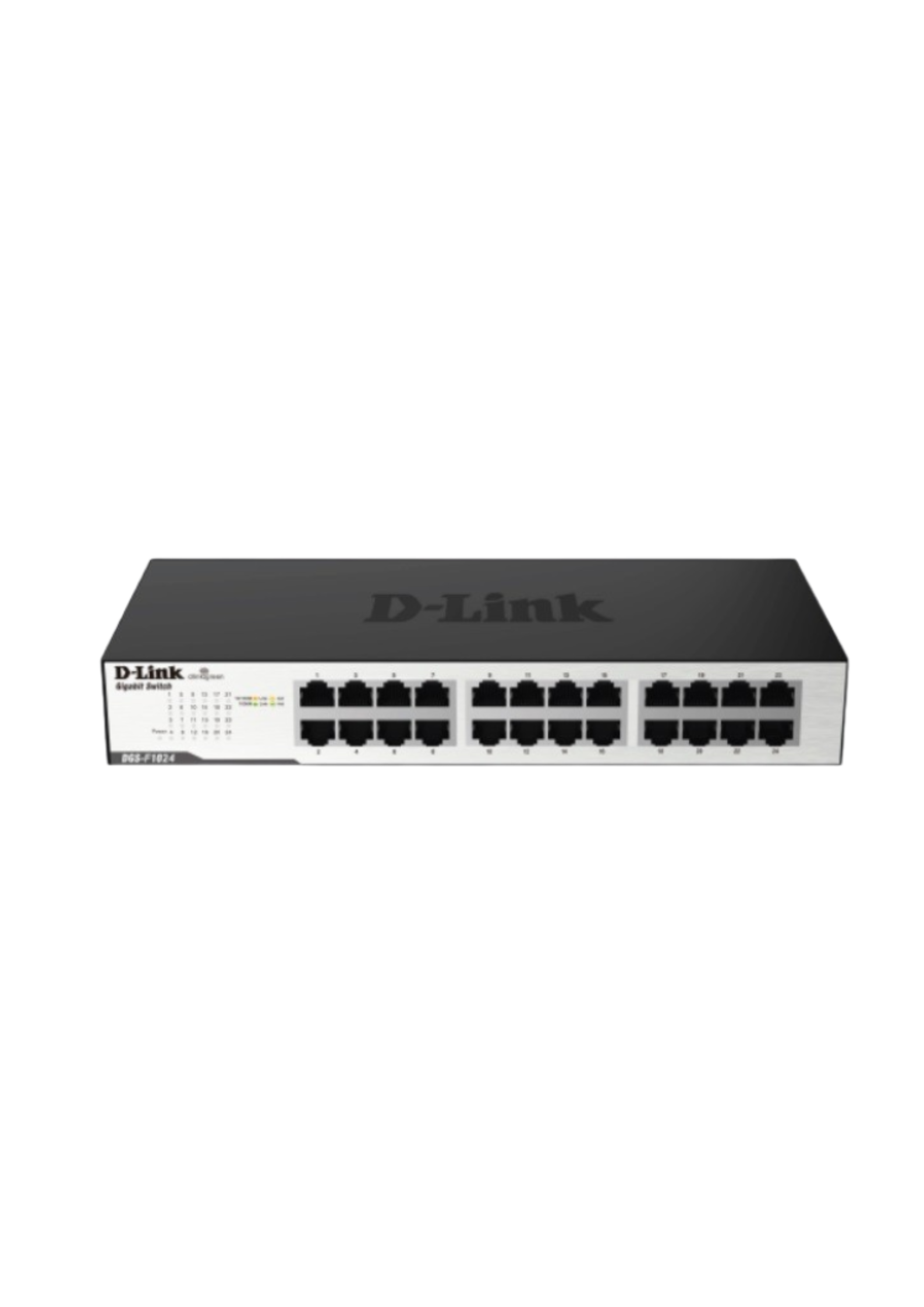

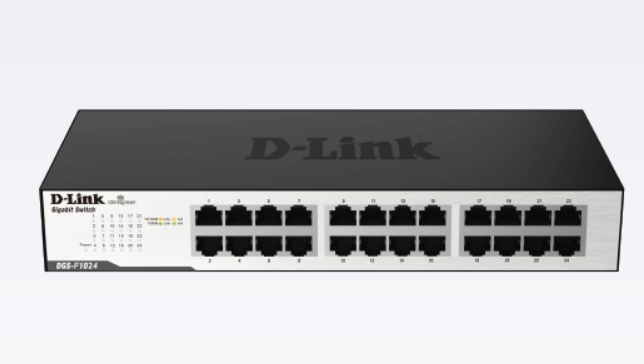

- The DGS-F1024 10/100/1000 Mbps unmanaged switches are economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
- With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. T hey feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you’re ready to go.
- The DGS-F1024 support IEEE 802.3az Energy-Efficien Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
- The DGS-F1024 are plug-and-play devices that require no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
- The DGS-F1024 10/100/1000 Mbps unmanaged switches are economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
- With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you’re ready to go.
- The DGS-F1024 support IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
- The DGS-F1024 are plug-and-play devices that require no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
• twenty-four (DGS-F1024)Gigabit LAN ports for high-speed wired connections
• Plug-and-play installation for convenience
• Reduces power to a port when there is no traffic
• Optimizes power usage for a port for the length of cable connected to it
• Energy-efficient design reduces heat generated and allows switch to run silently
Technical Specifications
- 24 x 10/100/1000 Mbps LAN ports
Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Switching Capacity
- 48 Gbps
Advanced Features
- Auto-MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Supports 9,216 bytes jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Auto-negotiation for each port
- Quality of Service (8 queues, strict mode)
Data Transfer Rates
Ethernet:
- 10 Mbps (half-duplex)
- 20 Mbps (full-duplex)
Fast Ethernet:
- 100 Mbps (half-duplex)
- 200 Mbps (full-duplex)
Gigabit Ethernet
- 2000 Mbps (full-duplex
Transmission Method
- Store-and-forward
MAC Address Table Size
- 8,000 entries
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
- 512 KB per devic
Physical
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Media Interface Exchange
- Auto-MDI/MDIX adjustment for all ports
Dimensions
- 280x178x44mm(11.02×7.01×1.73 in)
Weight
- 1.3kg
Power Input
- 100 to 240 V AC
Power Consumption
- Standby: 4.1W
- Maximum: 14.5W
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
- Operating: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Emissions (EMI)
- CE Class A
- FCC Class A
- VCCI Class A
- BSMI
- CCC
Safety
- UL
- CB
- LVD
- BSMI
- CCC
