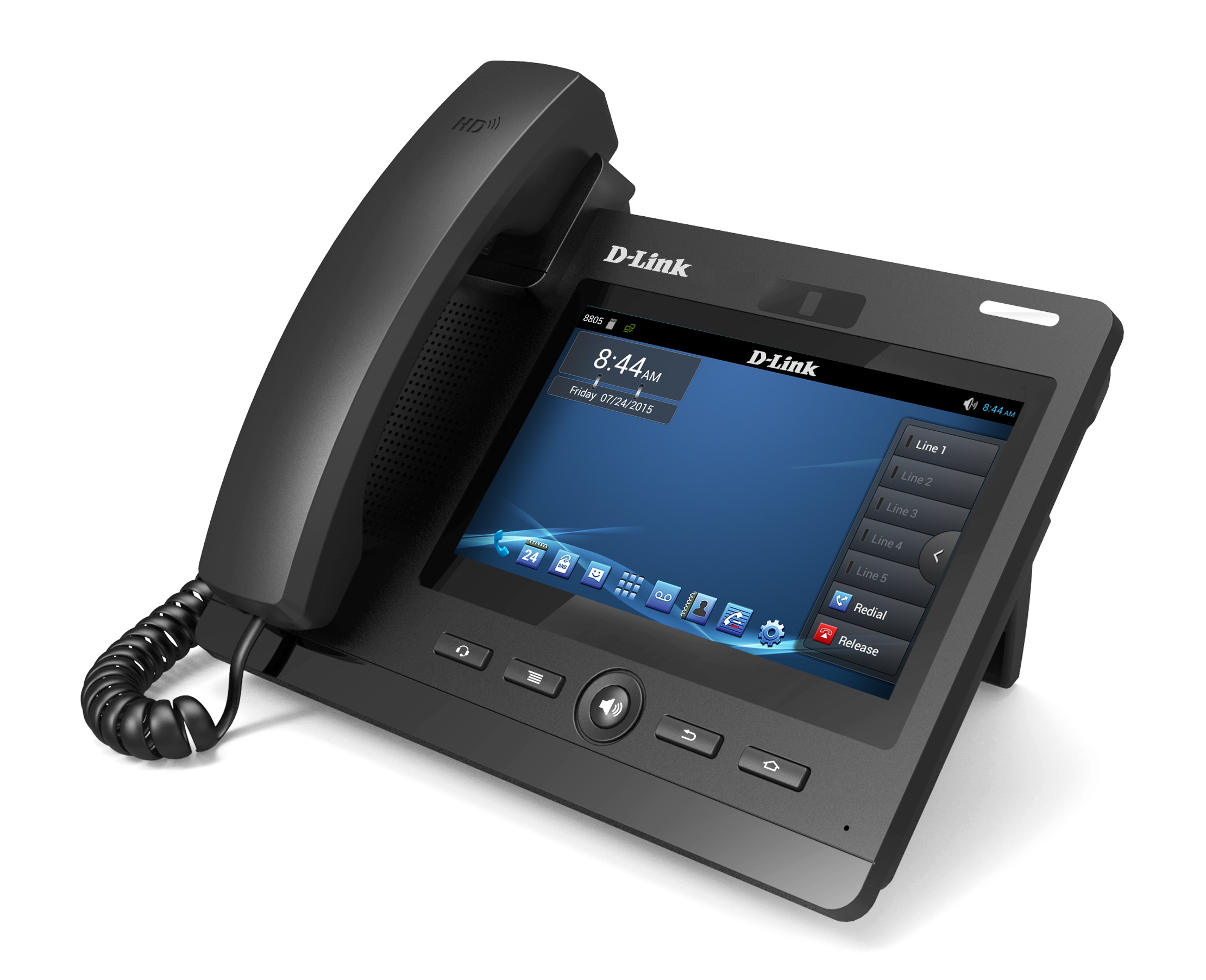

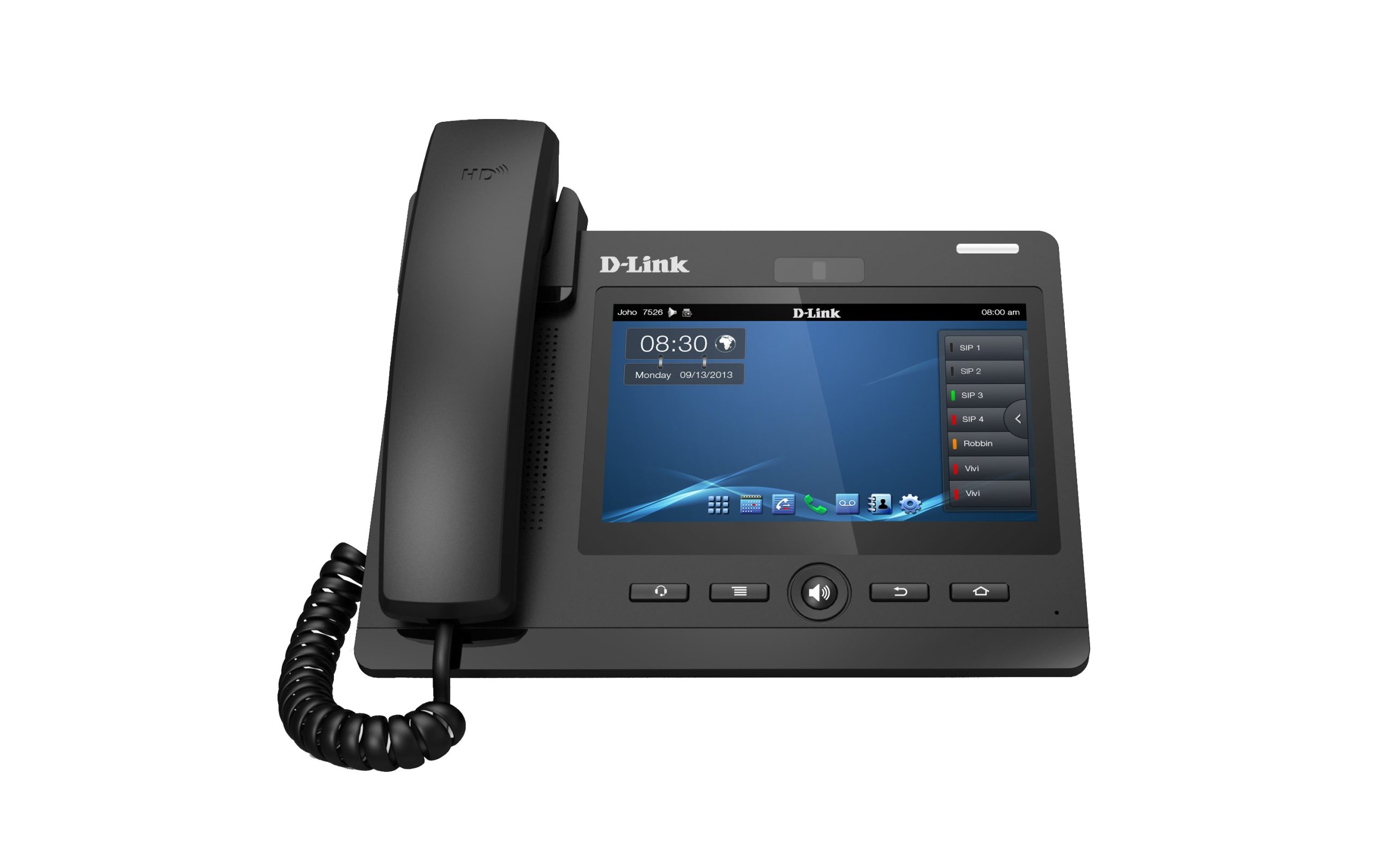

DPH860S IDEAL FOR HOME&OFFICE
- The D-LinkDPH860S is the latest innovation of advanced color IP video phone. Unified with audio, video, applications, the DPH860S is a powerful, easy-to-use business video phone. Its large display and ease of use make DPH an ideal all-in one tool for today’s busy executives and managers, whether they are in office, soho,healthcare, etc. With its superb user experience and rich business features, it creates an immersive, face-to-face experience over the network, empowering you to collaborate with others like never before.
FACE-TO-FACE AUDIO VIDEO COMMUNICATION
- DPH860S incorporate 5M pixels camera and delivers business-grade video calling. With the most advanced video codec H.264 and CIF@30fps video up to 1Mbps, DPH860S provides realistic visual communications even at low bandwidth. Furthermore, users can use DPH860S as a desktop video phone to attend video meetings for it is compatible with video conferencing system. It also comes bundled with several applications including Door Phone, SIP Camera etc.
EXTENSIVEPHONEFEATURES
- DPH860S is equipped with rich business features including 6 sip accounts, supporting PoE, Audio & Video conferencing,BLF,Intercom,call pickup and a host oftelephony functions, which increase efficiency on decision-making when cooperating with others. With extensive storage capacity for directories and call logs,DPH860S improves efficiency by showing more call information through a simple touch .It also comes with an array of features like rotatable CMOS sensor camera with 5Mega pixels, SD card,USB&HDMI, and also supports Android apps, Moreover it is fully interoperable with leading IP PBX system.
Video Features
- Video codec: H.264,H.263&MPEG4
- Image codec: JPEG, GIF, PNG, BMP
- Video capacity: up to D1(1280×7200)@30fps > Video call format: CIF,QCIF,QVGA,4CIF
- Bandwidth selection:128kbps~1Mbps> Frame rate
- selection: 10~30fps
- Adaptive bandwidth adjustment
- I-frame adjustable
- Picture-in-Picture (PIP)
- Full screen for remote side
- Video control of local side
- HDMI output
- Door phone and IP camera application
Audio Features
- HD voice: HD codec, HD handset, HD speaker
- Voice codec: G.711(A/µ), G.723.1, G.729ABG.722,G.726,ilbc,Amr-NB,AwR-wB
- DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
- Professional Speaker/HD Voice
- Ergonomic handset
- Voice activity detection
- Comfort noise generation
Network and Security
- Supports SIP2.0 ( RFC3261) and correlative RFCs
- SIP supports 6 SIP servers,and 3 backup SIO servers. Can connect to these SIP servers at the same time NAT transverse: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP/PPPoE
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN),Layer 3 ToS,and DSCP
IP Phone Features
- 6 VoIP accounts, Video/Voice call
- 100 one-touch soft DSS keys, Speed dial
- Dial/answer call type selection (video or voice)
- Call forward, Call waiting, Call transfer, Call hold > Call manager, Mute, Redial, Auto answer> DND, Caller ID display, Call history,Call statistics > Voice mail
- Local 3-way audio conference
- Direct IP call without SIP proxy
- Phonebook with contact picture,
- Group manager, Black list
- Picture dial, XML/LDAP remote phonebook
- New message and missed call notification
- Volume( handfree/handset/headset/ring)adjustment
- Wall paper, Video/Photos screen saver
- Video/photo/wallpaper/ringtone manager
- Set date time manually or automatically
- National language selection
- Backlight time selection
- Busy lamp field (BLF), BLF list
- Message waiting indicator (MWI)
- Intercom, Music on hold
- Call park, Call pickup
- Anonymous call, Anonymous call rejection
- DND & forward synchronization
Maintenance and Management
- Android 4.1
- Third party android application, e.g emailIM,Internet Radio,web browser
- Application market
- Desktop/google search
- Desktop widget
- Web,telnet and keypad management
- Management with diffrent account right
- Support automatic upgrades/configuration deployment
- Support encrypted configuration files download with AES
- Support pushing message
- Support SNMP(Optional)
- Support TR-069 (Optional)
Technical Specification
Power Adapter
- Input: 100-240v
- Output: 12v/1A
Power consumption
- Idel:2.5w/Active
Port
- WAN: 10/100/1000 Base-T RJ-45
- LAN: 10/100/1000 Base-T RJ-45
Headset: RJ9
- USB: USB 2.0, Micro USB
- HDMI: HDMI A
LCD Size Diagonal
- 7 inch (800*480) capacitive touch screen Camera
- 5M, Adjustable position
- Operation temperature 0~40°c
- Relative humidity 0~65%
CPU
- Freescale core quad 1Ghz
SD RAM
- 1GB DDR3 1066
Flash
- 4GB
