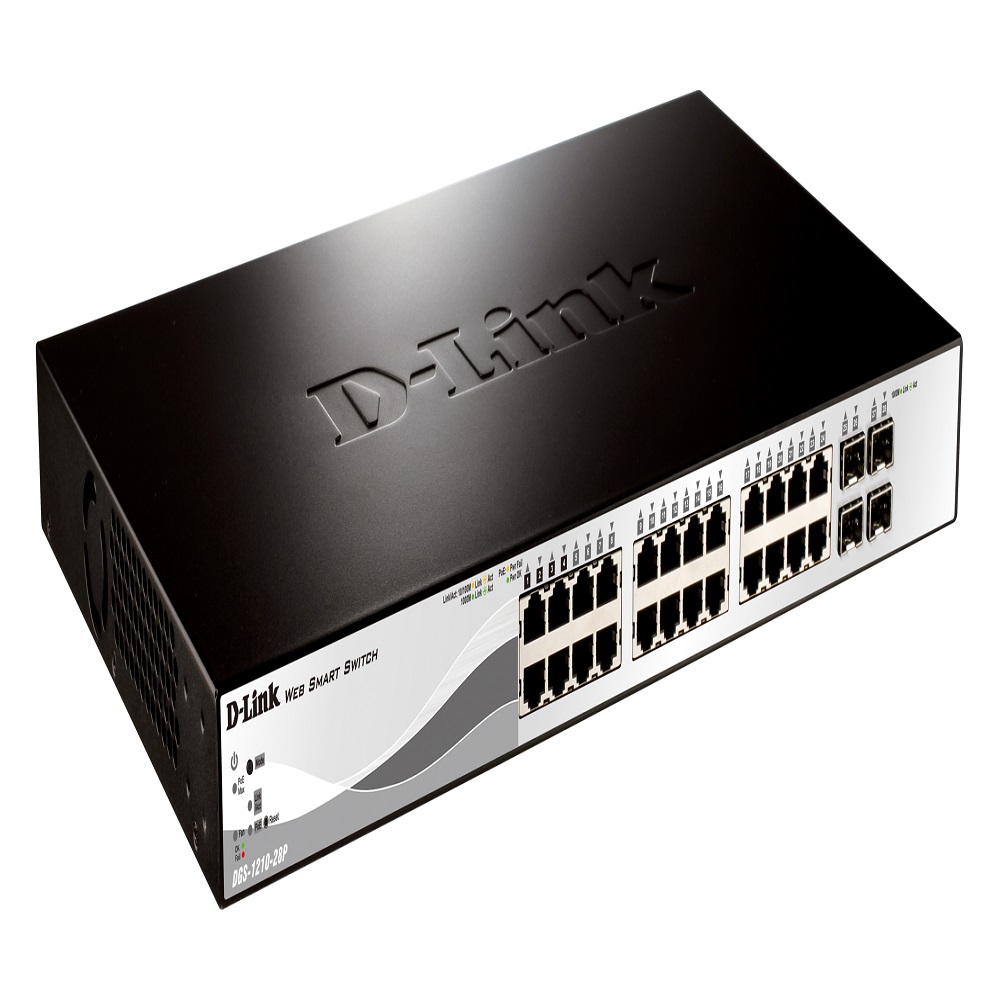

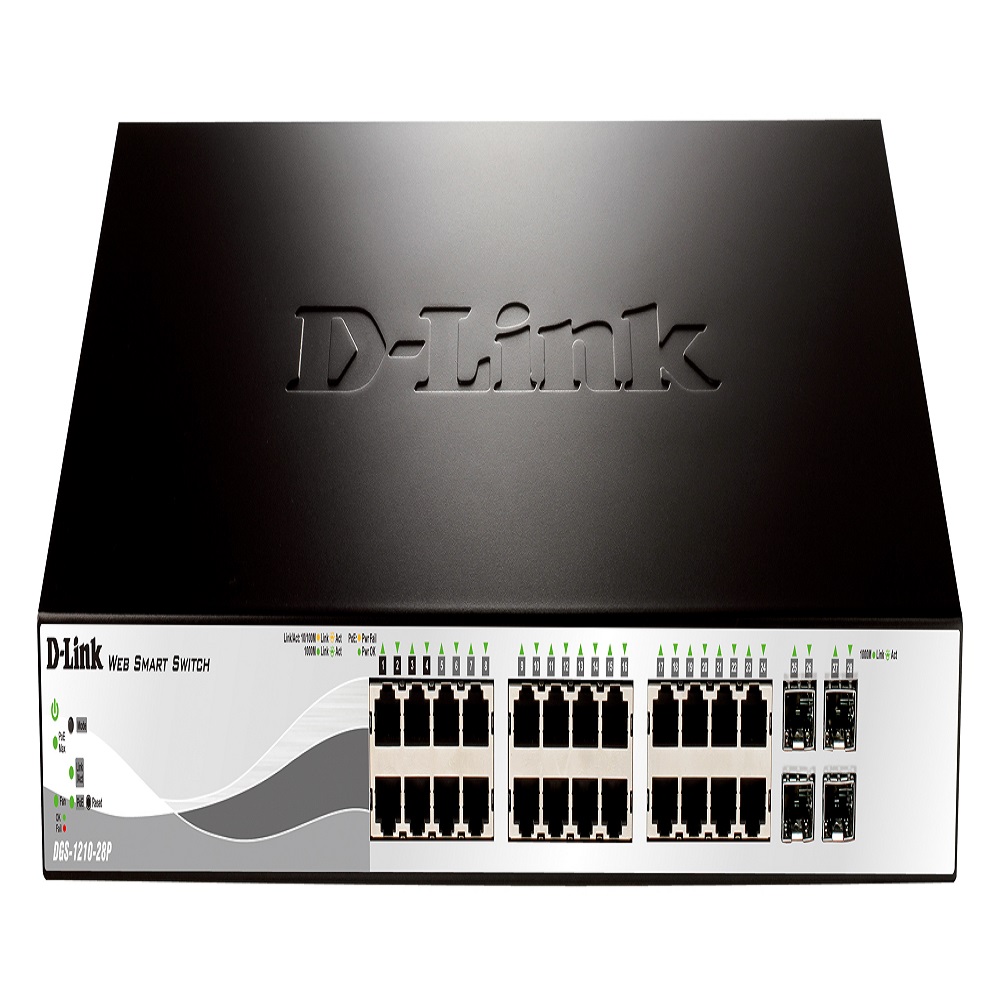

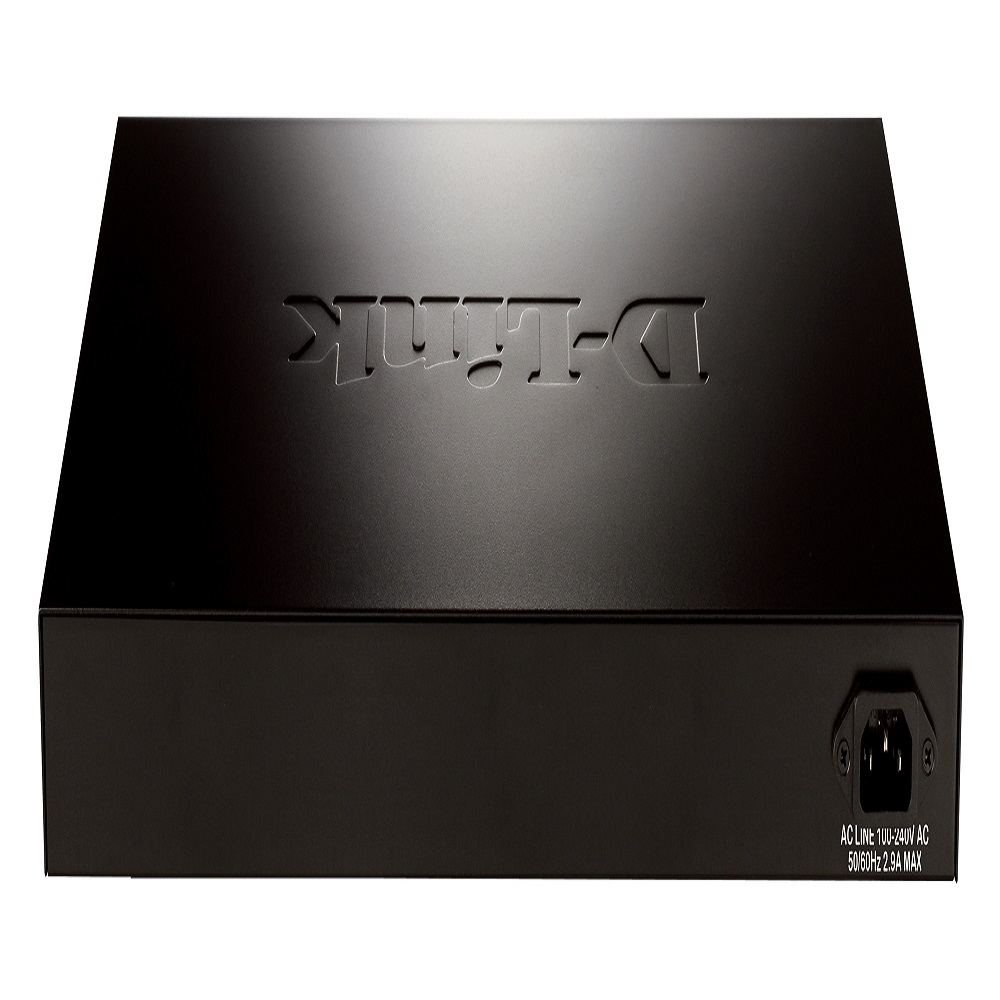

DGS-1210-28P D-Link 28-Ports PoE with 4 Gigabit SFP ports Gigabit Smart Switch


3% Off
Price Summary
  • EGP22,500.00
  • EGP21,750.00
  • 3%
  • EGP21,750.00
  • Overall you save EGP750.00 (3%) on this product
In Stock

Easy Management
A multilingual Web UI, a compact CLI, and a variety of management features allow the switches to integrate with your existing network.

IPv6 Ready
IPv6 compliance means that the switches are ready to meet future addressing standards, and are compatible with both your IPv4 and IPv6 network.

Power over Ethernet
Increased PoE capability and support for IEEE 802.3af/at allow the PoE models in the series to power more devices with greater port density.

نظرا للتغير المستمر في سعر العملة يرجى مراجعة الشركة  أولا في سعر الشراء قبل اتمام عملية الشراء على رقم واتساب 01224077567


The new DGS-1210-28P and DGS-1210-52 are the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the DGS-1210-28P and DGS-1210-52 allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, these Web Smart Switch provide functionality, security, and manageability for a fraction of the standard cost of ownership. The DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.The DGS-1210-52 provides 48 10/100/1000 Base-T ports with 4 Gigabit SFP ports.

Energy Saving
The DGS-1210-28P and DGS-1210-52 are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, these switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the DGS-1210-28P PoE switch so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the intial installation, the Smart Console Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and subnet masks quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, can be completed using batch operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Green Technology

  • Link status detection.
  • Port shut-off.
  • System hibernation.
  • Time-based PoE (PoE models only).

Security Features

  • Access Control Lists (ACLs).
  • D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding.
  • Port Security supports up to 64 MAC addresses per port.
  • ARP Spoofing Prevention.
  • Smart Binding.

Intuitive Management

  • D-Link Network Assistant (DNA) utility or multi-lingual Web UI.
  • Built-in SNMP MIB for remote NMS (D-View 7.0).
  • Compact Command Line Interface (CLI) through Telnet.

Advanced Features

  • Static routing.
  • Surveillance Mode.
  • Auto Voice VLAN.
  • Dual software images.
  • Dual configuration files.

Technical Specifications
Hardware Version

  • F1.


  • 24 10/100/1000BASE-T PoE.
  • 4 100/1000 Mbps GbE/SFP combo ports.

Port Standards

  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper).
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper).
  • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic.
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper).
  • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic.
  • IEEE 802.3az Energy Efficient Ethernet (EEE).
  • IEEE 802.3x Flow Control.
  • IEEE 802.3af/at compliance (for PoE ports).

Network Cables

  • UTP Cat. 5, Cat. 5e (100 m max.).

Duplex Mode

  • Full/Half-duplex for 10/100 Mbps.
  • Full-duplex for 1000 Mbps.

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all twisted-pair ports.

Switching Capacity

  • 56 Gbps.

Transmission Method

  • Store-and-forward.

MAC Address Table

  • 8K entries.

Static MAC Addresses

  • 256 entries.

Maximum 64 Byte Packet Forwarding Rate

  • 41.7 Mpps.

Packet Buffer Memory

  • 4.1 Mbits.

CPU Memory

  • DDR3 128 MB.

Flash Memory

  • 32 MB.

PoE Capable Ports

  • Ports 1 to 24.

Power Budget

  • 193 W.


  • Power (per device).
  • Link/Active/Speed (per port).
  • PWR Max.
  • Fan Error.

Power Input

  • 100 to 240 V AC 50/60 Hz internal universal power supply.

Maximum Power Consumption (PoE enabled)

  • 263.9 W/100 V.
  • 247.4 W/240 V.

Maximum Power Consumption (PoE disabled)

  • 30.6 W/100 V.
  • 28.1 W/240 V.

Standby Power Consumption

  • 19.6 W/100 V.
  • 16.6 W/240 V.


  • High speed: 51.7 dB(A).
  • Low speed: 44.9  dB(A).

Heat Dissipation

  • 900.36 BTU/hr (100 V).
  • 844.23 BTU/hr (240 V).


  • 2.

Operating Temperature

  • -5 to 50°C (23 to 122°F).

Storage Temperature

  • -20 to 70°C (-4 to 158°F).

Operating Humidity

  • 0% to 95% relative humidity.

Storage Humidity

  • 0% to 95% relative humidity.

Dimensions (L x W x H)

  • 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in).


  • 3.75 kg (8.27 lbs).


  • CE Class A.
  • VCCI Class A.
  • FCC Class A.
  • BSMI.
  • CCC.


  • CB.
  • UL.
  • BSMI.
  • CCC.


  • 469,262 hours.

L2 Features

  • MAC Address Table
    • 8K entries.
  • IGMP Snooping:
    • IGMP v1/v2 Snooping.
    • IGMP v3 awareness.
    • Supports 256 IGMP groups.
    • Supports at least 64 static multicast addresses.
    • IGMP per VLAN.
    • Supports IGMP Snooping Querier.
  • Loopback Detection.
  • 802.3ad Link Aggregation:
    • Supports maximum 8 groups per device and 8 ports per group.
  • LLDP.
  • Jumbo Frame:
    • Up to 10,000 bytes.
  • Spanning Tree Protocol:
    • 802.1D STP.
    • 802.1W RSTP.
    • 802.1s MSTP.
  • Flow Control:
    • 802.3x Flow Control.
    • HOL Blocking Prevention.
  • Port Mirroring:
    • One-to-One.
    • Many-to-One.
    • Supports Mirroring for Tx/Rx/Both.
  • Multicast Filtering:
    • Forwards all unregistered groups.
    • Filters all unregistered groups.
  • Configurable MDI/MDIX:
    • MLD snooping v1/v2 (256 groups).


  • 802.1Q.
  • VLAN Group:
    • Max. 256 static VLAN groups.
  • Configurable VID from 1 – 4094.
  • Asymmetric VLAN.
  • Auto Voice VLAN:
    • Max. 10 user-defined OUI.
    • Max. 8 default OUI.
  • Auto Surveillance VLAN.

Quality of Service (QoS)

  • 802.1p Quality of Service.
  • 8 queues per port.
  • Queue Handling:
    • Strict.
    • Weighted Round Robin (WRR).
  • Bandwidth Control:
    • Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps).
  • QoS based on:
    • 802.1p priority queues.
    • DSCP.
    • MAC address.
    • EtherType.
    • IP address.
    • Protocol type.
    • ToS.
    • IP preference.
    • IPv6 Traffic Class.
    • TCP/UDP port.

L3 Features

  • IP interface:
    • Supports 4 interfaces.
  • IPv6 Neighbor Discovery (ND).
  • Static routing:
    • 124 IPv4 static route entries.
    • 50 IPv6 static route entries.

Access Control List (ACL)

  • Max. 50 access lists
  • Max. 768 rules shared by IPv4, MAC, and IPv6
  • Each rule can only be associated with a single port
  • ACL based on:
    • MAC address:
      • 802.1p priority mask.
      • VID mask.
      • Source/destination MAC address mask.
      • EtherType mask.
    • IP address:
      • Source/destination IP address mask.
      • DSCP mask.
      • Protocol type mask.
      • TCP/UDP port number mask.
  • IPv6 address:
    • Source/destination IP address mask.
    • DSCP mask.
    • Protocol type mask.
    • TCP/UDP port number mask.
    • IPv6 traffic class mask.

Security Features

  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • Traffic segmentation
  • SSH v2
  • TLS v.1.2
  • DoS attack prevention
  • 802.1X Port-based Access Control
  • Port Security
  • Supports up to 64 MAC addresses per port
  • ARP Spoofing Prevention
  • Max. 127 entries
  • DHCP Server Screening
  • IP-MAC-Port Binding (Smart Binding)
  • ARP Inspection
  • Max. 256 entries
  • IPv4 Inspection
  • Max. 127 entries
  • IPv6 Inspection
  • Max. 63 entries
  • DHCP Snooping
  • Max. 512 entries


  • 802.1X Authentication
  • Supports local/RADIUS database
  • Supports port-based access control
  • Supports EAP, OTP, TLS, TTLS, PEAP
  • Max. 128 entries when using local database
  • IPv6 RADIUS server
  • Support MD5 authentication


  • Cable diagnostics
  • Factory reset


  • Web-based GUI
  • D-Link Network Assistant Utility.
  • Compact CLI.
  • Telnet Server.
  • TFTP Client.
  • Configurable MDI/MDIX.
  • SNMP:
    • Supports v1/v2c/v3.
  • SNMP Trap.
  • Backup/upgrade firmware.
  • Smart Wizard.
  • Upload/download configuration file.
  • BootP/DHCP Client.
  • System Log:
    • Max. 500 log entries.
  • SNTP.
  • ICMP v6.
  • IPv4/v6 Dual Stack.
  • DHCP Auto Configuration.
  • Time setting:
    • SNTP.
  • RMONv1.
  • Trusted host.
  • Dual image.
  • Dual configuration.

Green V3.0 Technology

  • Power Saving by:
    • Link Status
    • Time-based PoE: PoE ports can be turned on/off by port or system through schedule.
  • System hibernation.
  • Port shut off.
  • Cable length detection.


  • RFC1212 Concise MIB Definitions.
  • RFC1213 MIBII.
  • RFC1215 MIB Traps Convention.
  • RFC1493 Bridge MIB.
  • RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB.
  • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB.
  • RFC271, RFC1757, RFC2819 RMON MIB.
  • RFC2021 RMONv2 MIB.
  • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB.
  • RFC2674 802.1p MIB.
  • Interface Group MIB.
  • RFC2618 RADIUS Authentication Client MIB.
  • RFC4022 MIB for TCP.
  • RFC4113 MIB for UDP.
  • RFC2389 MIB for Diffserv.
  • RFC2620 RADIUS Accounting Client MIB.
  • Private MIB.
  • PoE MIB.
  • DDP MIB.

RFC Standards

  • RFC791 IP.
  • RFC768 UDP.
  • RFC793 TCP.
  • RFC792 ICMPv4.
  • RFC2463, RFC4443 ICMPv6.
  • RFC826 ARP.
  • RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP).
  • RFC2573 SNMP Applications.
  • RFC2461, RFC4861 Neighbor Discovery for IPv6.
  • RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC).
  • RFC2464 IPv6 over Ethernet and definition.
  • RFC4291 IPv6 Addressing Architecture.
  • RFC2893, RFC4213 IPv4/IPv6 dual stack function.
