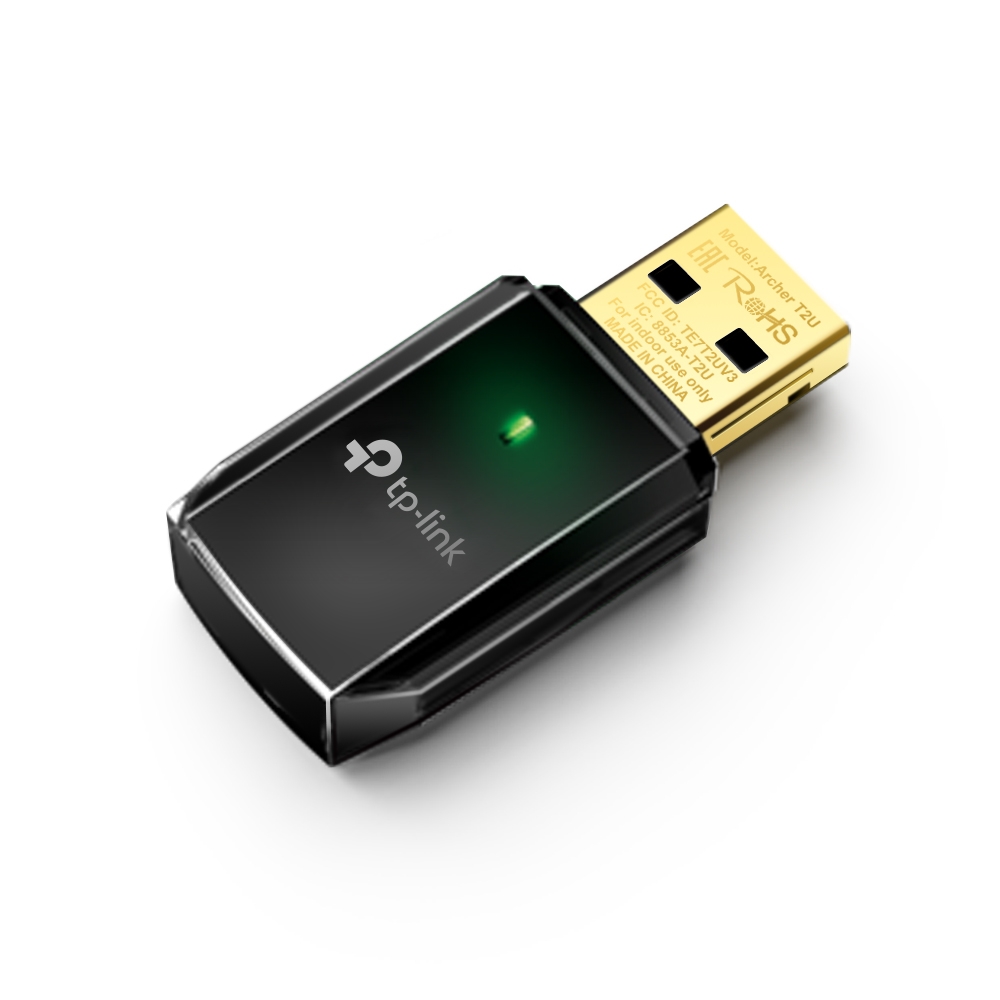

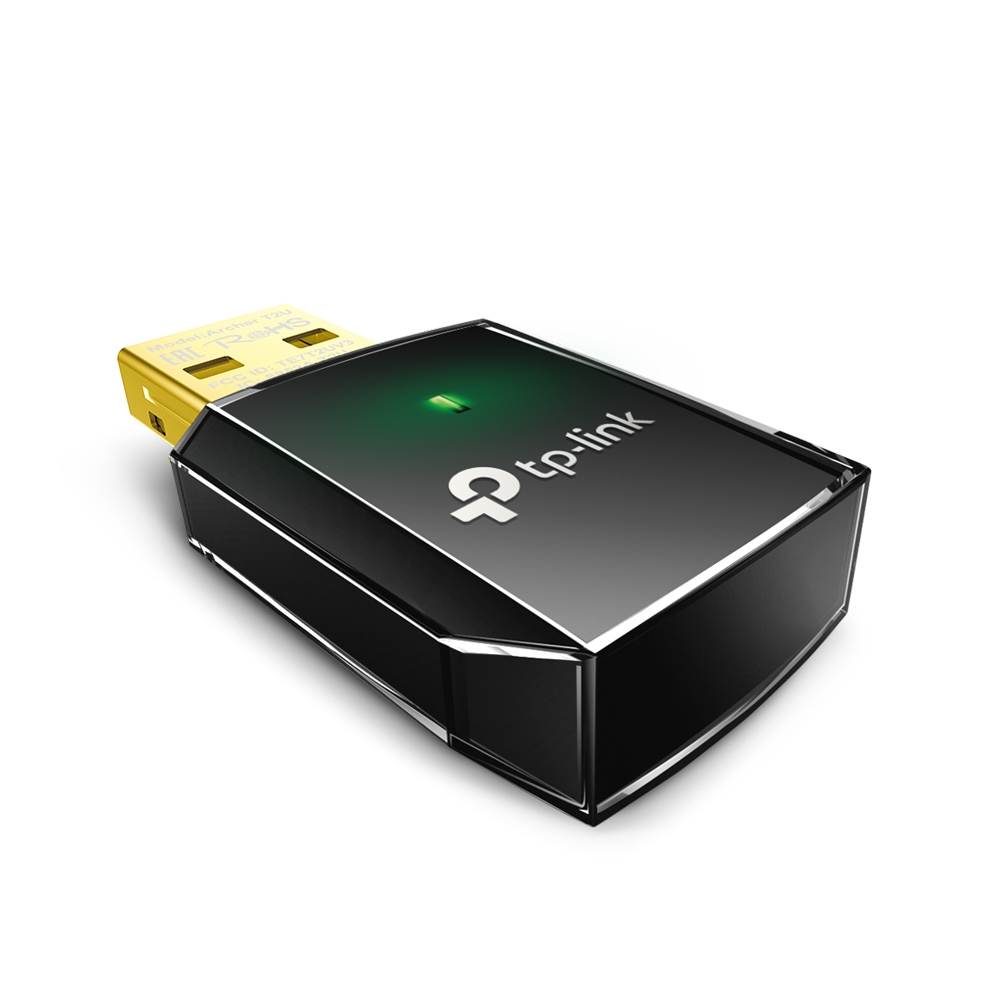

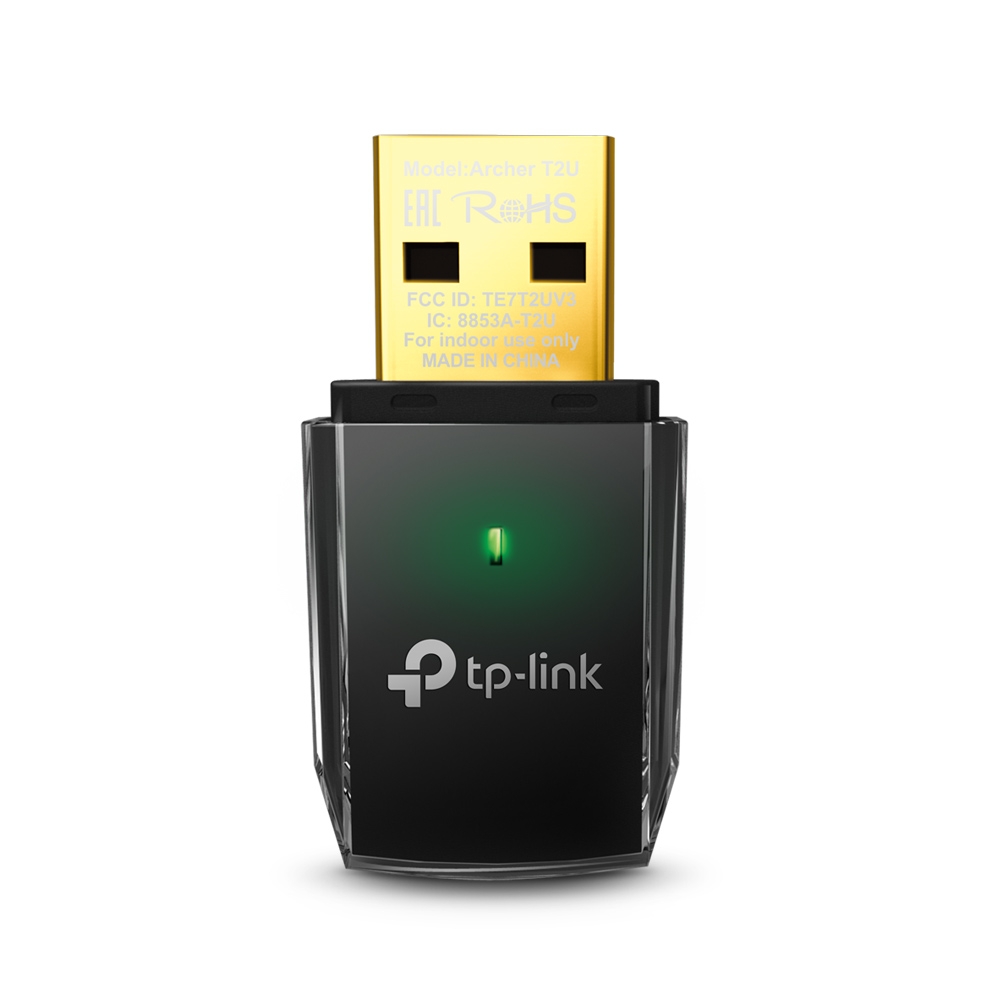

The Archer T2U Nano receives Wi-Fi signals on two separate bands. Supporting 256QAM technology increases 2.4GHz data rate from 150Mbps to 200Mbps for 33% faster performance. Choose the 2.4GHz band for surfing and social media, and 5GHz band for HD streaming and lag-free gaming. As the smallest AC adapter available, enjoy stable and fast Wi-Fi wherever you need it.
Speed
- Fast Wi-Fi: 200Mbps on 2.4GHz and 433Mbps on
5GHz wireless speeds are ideal for HD streaming video, lag-free gaming and large file downloads - 802.11ac Support: Wi-Fi technology that is 3 times
faster than 802.11n
Reliability
- Dual Band: Selectable 2.4GHz and 5GHz bands to avoid
wireless signal interference - Backwards Compatibility: Supports routers utilizing
802.11 a/b/g/n Wi-Fi standards
Easy to use
- Easy Installation: A friendly user interface utility on a CD
for simple installation
Design
- Mini design: The Archer T600U Nano is very small
and can be left in a computer’s USB port once plugged in
Security
- Active Defense: WPA/WPA2 encryption provides your
Wi-Fi network with advanced protection against security threats
Hardware Features:
Interface
- USB 2.0
Dimensions ( W x D x H )
- 15 x 7.1 x 18.6mm
Weight
- 0.325Ib
Antenna Type
- Omni Directional
Wireless Features:
Wireless Standards
- IEEE 802.11ac, IEEE 802.11a,
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
- 5GHz
- 2.4GHz
Signal Rate
5GHz
- 11ac: Up to 433Mbps(dynamic)
- 11n: Up to 150Mbps(dynamic)
- 11a: Up to 54Mbps(dynamic)
2.4GHz
- 11n: Up to 200Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
5GHz
- 11a 6Mbps: -90dBm
- 11a 54Mbps: -73dBm
- 11n HT20 MCS0: -89dBm
- 11n HT20 MCS7: -70dBm
- 11n HT40 MCS0: -86dBm
- 11n HT40 MCS7: -67dBm
- 11ac VHT80 MCS0: -82dBm
- 11ac VHT80 MCS9: -56dBm
2.4GHz
- 11b 1Mbps: -96dBm
- 11b 11Mbps: -88dBm
- 11g 6Mbps: -89dBm
- 11g 54Mbps: -74dBm
- 11n HT20 MCS0: -89dBm
- 11n HT20 MCS7: -72dBm
- 11n HT40 MCS0: -86dBm
- 11n HT40 MCS7: -66dBm
Transmit Power
- <20dBm (EIRP)\
Wireless Modes
- Ad-Hoc / Infrastructure mode
Wireless Security
- Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Others:
Certification
- CE
- FCC
- RoHS
Package Contents
- AC600 Nano Wireless USB Adapter Archer T2U Nano
- Resource CD
- Quick Installation Guide
System Requirements
- Windows 10/8.1/8/7/XP (32/64bits),
- Mac OS X 10.9-10.13
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
